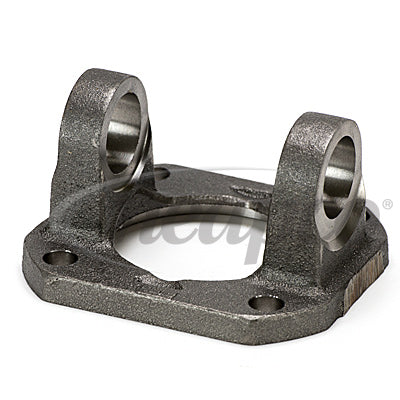

Neapco N3R-2-8268 Flange Yoke

Vendor: Neapco, Sku: 'N3R-2-8268

Product Description

Driveshaft Flange Yoke

Specifications

BOLT CIRCLE:
4.25"
DL SERIES:
3R
U-JOINT LOCK UP:
2.563”
BEARING CAP DIAMETER:
1.125”
FLANGE FACE TO CL:
1.69"
HOLE/THREAD SIZE:
0.46"
JOINT ANGLE:
15
NUMBER OF BOLT HOLES:
4
PILOT DIAMETER:
3.12" Female

VMRS: 024-002-016

Sku: 'N3R-2-8268
Vendor: Neapco
$52.81
Maximum quantity available reached.

DETAILS

U-Joint Series:
3R
U-Joint Cap Size (B): 1.125"
U-Joint Width (A): 2.563"
Snap Ring Type: Inside Snap Ring
Manufacturer: Neapco
Pilot Diameter (G): 3.12"
Bolt Circle (E): 4.25"
Manufacturer Part Number: 'N3R-2-8268
Flange or Swing Diameter (J): 0.46"
Bolt Hole (F): Drilled
Number of Bolt Holes: 4
Flange Face to Centerline U-Joint (H): 1.69"
OEM/Alternate Part Number:
083869015132
