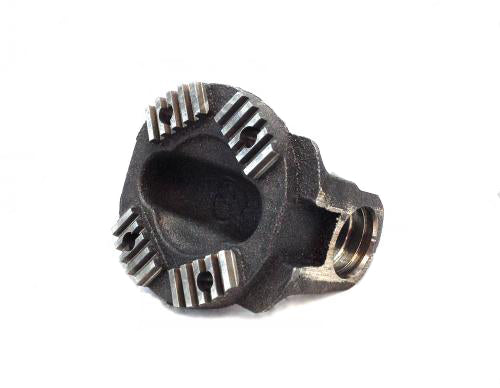

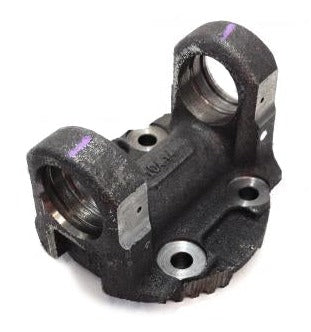

AAM 40038359 Flange Yoke

Vendor: AAM, Sku: 40038359

Product Description

Drive Shaft Flange Yoke

This 1350/1355 pinion yoke fits the Chrysler 8.75/9.25" differential.


The differential flange yoke transfers the power from the driveshaft to the differential through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear end travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications
Series: 1350/1355
Cap to Cap (D):
3.620" (94.86 mm)
Cap Diameter (E):
1.188" (30.17 mm)
Style: Serrated
Pilot Type: OD
Pilot Diameter (B): 0.000"
Bolt Circle Diameter:
2.913" (73.990 mm)
Bolt Hole Count: 4
Bolt Hole Diameter
0.335" (8.509 mm)
Center Line (C/L) to end (A):
2.067" (52.50 mm)
Swing Diameter:
3.620" (91.948 mm)
Outside Flange Diameter (F):
3.866" (98.20 mm)
Class: LD



AAM Flange Diagram



How to Measure a Driveshaft Slip Yoke.

Application:

Chrysler 8.75/9.25" (29 spline)
2.161 Pilot 3.937 BC
Pinion Flange




****


This part is compatible with:
U-Joint: 5-1350X

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:  CHAT | EMAIL | (574)287-9650

Sku: 40038359
Vendor: AAM
$44.05
Maximum quantity available reached.

DETAILS

U-Joint Series:
1350/1355
U-Joint Cap Size (B): 1.188" (30.17 mm)
U-Joint Width (A): 3.734" (94.86 mm)
Snap Ring Type: Outside Snap Ring
Manufacturer: AAM
Pilot Diameter (G): 3.866" (98.20mm)
Bolt Circle (E): Bolt Circle 2.913" (73.99 mm)
Manufacturer Part Number: 40038359
Flange or Swing Diameter (J): Flange Dia. 3.866" (98.20 mm)
Bolt Hole (F): 0.335" Drilled
Number of Bolt Holes: 4
Flange Face to Centerline U-Joint (H): 2.067" (52.50mm)
OEM/Alternate Part Number:
