AAM 40019801 Flange Yoke

Vendor: AAM, Sku: 40019801

Product Description

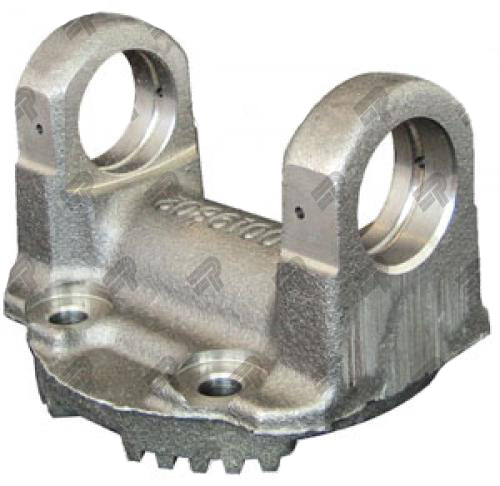

Driveshaft Serrated Flange Yoke

AAM driveshaft components are designed, tested and manufactured to maximize performance and durability. All driveshaft components meet the OEM specifications because they are the authentic OEM products. The same products we use to build driveshafts used by vehicle manufacturers around the world.

 Specifications

Bolt Circle: 2.913 Inch (73.99 mm)
Swing Diameter:
3.866 Inch (98.20 mm)
Series:
1344/3R
U-Joint Lock Up:
2.556 Inch (64.99 mm)
Bearing Cap Diameter:
1.125 Inch (28.57 mm)
Flange Face to Center Line:
2.067 Inch (52.50 mm)
Number of Bolt Holes:
4
Pilot Diameter:
Serrated
Vehicle Make: Chrysler / Dodge

VMRS: 024-002-016




Compatible Part:
AMI M8-1.25 X 35MM Bolts

Alternate Part Number:

PTI 3R02-261 Flange Yoke
74089801
casting # 05093373AA (Casting numbers can be the base for many different products. Casting numbers can also change depending on many factors. Always check your measurements. )

Sku: 40019801
Vendor: AAM
$70.69
Maximum quantity available reached.

DETAILS

U-Joint Series:
1344 3R
U-Joint Cap Size (B): 1.125"
U-Joint Width (A): 2.556"
Snap Ring Type: Outside Snap Ring
Manufacturer: AAM
Pilot Diameter (G): Serrated
Bolt Circle (E): 2.913"
Manufacturer Part Number: 40019801
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:
