Transmission and Transfer Case Slip Yokes by Dimensions

Use this guide if you don't know your transmission or transfer case model.

A.) Spline Diameter
Measure the major diameter (deepest part) inside the slip yoke or the spline outside diameter on the vehicle's transmission or transfer case.

B.) Barrel Outside Diameter
Measure the outside of the barrel diameter on the slip yoke or the inside diameter of the trans seal.

C.) Spline Count
Each spline counts as one spline. Some slip yokes have blank spaces called blind spots. Count each blind spot as one spline.

D.) Slip Yoke Length
Measure from the end of slip to center of u-joint.

U-Joint Series
If you don't know your u-joint series see our guide here: U-Joint Guide
Bearing Cap Diameter: Width over the u-joint cap diameter.
Lock Up: Distance measured between u-joint snap rings. Compress the u-joint caps before measuring.

Trans Slip Yoke by Dimensions

Sort by:

Sold Out

Spicer 3-3-7041x Trans Slip Yoke

Transmission: , 5R110W

Series: 1410
Spline: 34
Barrel OD: 2.09"

U-joint: 1.188" X 4.188"
Length: 8.11"
Outside Snap Ring

Series: 1410
Spline: 34
Barrel OD: 2.09"
U-joint: 1.188" X 4.188"
Length: 8.11"
Outside Snap Ring

$3,117.90

Spicer 3-3-6661X Trans Slip Yoke

Transmission Applications: Fits various 31 spline transmissions and transfer requiring 1.886 yoke barrel diameter. Fits Transmission Models , 4R100 , A4LE , E4OS Transfer Case: , BW1345R , BW1356 , BW1359

Series: 1410
Spline: 31
Barrel OD: 1.89"

U-joint: 1.188" X 4.188"
Length: 8.11"
Outside Snap Ring

Series: 1410
Spline: 31
Barrel OD: 1.89"
U-joint: 1.188" X 4.188"
Length: 8.11"
Outside Snap Ring

$860.50

Spicer 2-3-10391X Trans Slip Yoke

Transmission Applications: Fits various 27 spline transmissions including: , 200-R4 , 4L60E , 700R4 , M21 , Powerglide , T-5 , T-56 , TH-350

Series: 1310
Spline: 27
Barrel OD: 1.50"

U-joint: 1.063" X 3.219"
Length: 6.00"
Outside Snap Ring

Series: 1310
Spline: 27
Barrel OD: 1.50"
U-joint: 1.063" X 3.219"
Length: 6.00"
Outside Snap Ring

$718.67

Spicer 2-3-5281X Trans Slip Yoke

Transmission Applications: Fits 32 spline transmission with the smaller seal/bushing: , TH-400 , Turbo 400

Series: 1310
Spline: 32
Barrel OD: 1.69"

U-joint: 1.063" X 3.219"
Length: 5.19"
Outside Snap Ring

Series: 1310
Spline: 32
Barrel OD: 1.69"
U-joint: 1.063" X 3.219"
Length: 5.19"
Outside Snap Ring

$700.69

Spicer 2-3-4871X Trans Slip Yoke (Limited Quantities)

Transmission Applications: Fits various 28 spline transmission output shafts. Fits Transmission Models , AOD , AOD-E , C4 , T-10 , T-5 , Toploader , TR3550 , Tremec

Series: 1310
Spline: 28
Barrel OD: 1.50"

U-joint: 1.063" X 3.219"
Length: 6.00"
Outside Snap Ring

Series: 1310
Spline: 28
Barrel OD: 1.50"
U-joint: 1.063" X 3.219"
Length: 6.00"
Outside Snap Ring

$688.79

Spicer 2-3-8731X Trans Slip Yoke

Transmission Applications: Fits various 26 spline transmission output shafts for early Dodge cars as well as GM and Dodge trucks. Fits Transmission Models , 42RE , 42RH , 904 , A500 , AX15

Series: 1310
Spline: 26
Barrel OD: 1.56"

U-joint: 1.063" X 3.219"
Length: 6.00"
Outside Snap Ring

Series: 1310
Spline: 26
Barrel OD: 1.56"
U-joint: 1.063" X 3.219"
Length: 6.00"
Outside Snap Ring

$678.28

Sold Out

Spicer 2-3-8431x Trans Slip Yoke

Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models , 5R55E , A4LD , C3

Series: 1310
Spline: 25
Barrel OD: 1.37"

U-joint: 1.063" X 3.219"
Length: 6.50"
Outside Snap Ring

Series: 1310
Spline: 25
Barrel OD: 1.37"
U-joint: 1.063" X 3.219"
Length: 6.50"
Outside Snap Ring

$650.07

Spicer 2-3-1331X Trans Slip Yoke

Transmission Applications: Fits older 16 spline Powerglide transmissions from 1955 to 1964. Fits Transmission Applications: , Powerglide

Series: 1310
Spline: 16
Barrel OD: 1.50"

U-joint: 1.063" X 3.219"
Length: 4.88"
Outside Snap Ring

Series: 1310
Spline: 16
Barrel OD: 1.50"
U-joint: 1.063" X 3.219"
Length: 4.88"
Outside Snap Ring

$604.72

Spicer 2-3-13721X Trans Slip Yoke

Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models , 5R55E , A4LD , C3

Series: 1330
Spline: 25
Barrel OD: 1.37"

U-joint: 1.063" X 3.625"
Length: 6.86"
Outside Snap Ring

Series: 1330
Spline: 25
Barrel OD: 1.37"
U-joint: 1.063" X 3.625"
Length: 6.86"
Outside Snap Ring

$425.09

Sold Out

Spicer 2-3-13691X Trans Slip Yoke

Transmission Applications: Fits various 28 spline transmission output shafts. Fits Transmission Models , AOD , AOD-E , C4 , T-10 , T-5 , Toploader , TR3550 , Tremec

Series: 1330
Spline: 28
Barrel OD: 1.50"

U-joint: 1.063" X 3.625"
Length: 7.86"
Outside Snap Ring

Series: 1330
Spline: 28
Barrel OD: 1.50"
U-joint: 1.063" X 3.625"
Length: 7.86"
Outside Snap Ring

$335.05

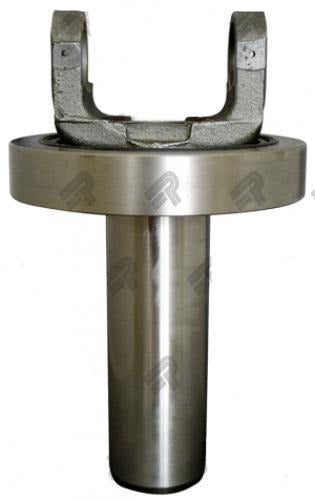

PTI 5503-367 Trans Slip Yoke

Dodge 36 Spline 1555 Series Fits Transmission Models

Series: 1550
Spline: 36
Barrel OD: 2.07"

U-joint: 1.375" X 4.969"
Length: 7.44"
Outside Snap Ring

Series: 1550
Spline: 36
Barrel OD: 2.07"
U-joint: 1.375" X 4.969"
Length: 7.44"
Outside Snap Ring

$310.03

Sold Out

PTI 4803-3301 Trans Slip Yoke

GMC and Chevy 33 Spline 1555 Series Fits Transmission Models Transfer Case:

Series: 1550 Series: 1555
Spline: 33
Barrel OD: 2.30"

U-joint: 1.375" X 4.946"
Length: 8.25"
Outside Snap Ring

Series: 1550 Series: 1555
Spline: 33
Barrel OD: 2.30"
U-joint: 1.375" X 4.946"
Length: 8.25"
Outside Snap Ring

$294.38

Sonnax T3-3-6081H Trans Slip Yoke

Transmission Applications: Fits 27 spline Transmissions. Fits Transmission Applications , M20 , M21 , M22 , Powerglide , Saginaw , TH-350 , TH-350C

Series: 1350
Spline: 27
Barrel OD: 1.50"

U-joint: 1.188" X 3.625"
Length: 5.81"
Outside Snap Ring

Series: 1350
Spline: 27
Barrel OD: 1.50"
U-joint: 1.188" X 3.625"
Length: 5.81"
Outside Snap Ring

$265.68

Spicer 2-3-10791X Transfer Case Slip Yoke

Transfer Case Applications: Fits various 32 spline transfer cases including: , 4L80E Long Tail , 6L50 , 6L80E , TH-400 Long Tail Transfer Case: , 241C , NP205 , NP208 , NP241 , NP243 , NP246 , NP261 , NP263

Series: 1330
Spline: 32
Barrel OD: 1.89"

U-joint: 1.063" X 3.625"
Length: 7.94"
Outside Snap Ring

Series: 1330
Spline: 32
Barrel OD: 1.89"
U-joint: 1.063" X 3.625"
Length: 7.94"
Outside Snap Ring

$262.60

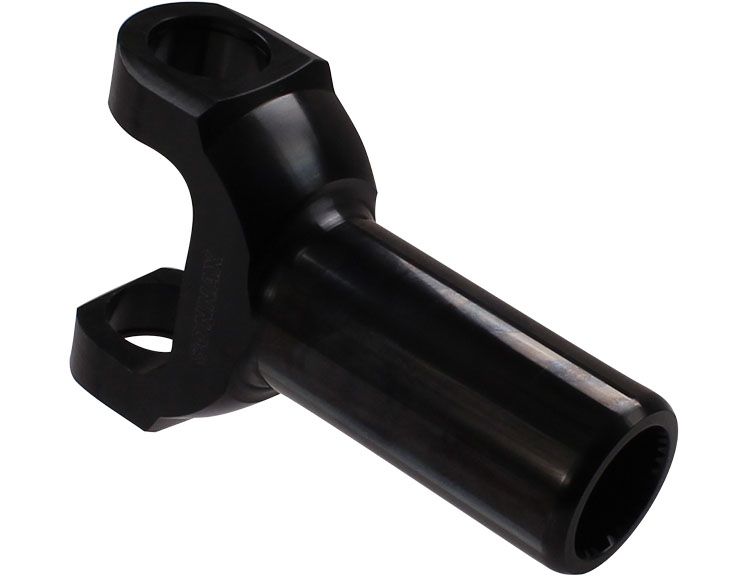

Sonnax T3-3-2431CBH Trans Slip Yoke

Transmission Applications: For roller bearing tail housing. Fits Transmission Applications , 4L80E , 4L85E , M20 , M21 , M22 , T-10 , TH-400 , Turbo 400

Series: 1350
Spline: 32
Barrel OD: 1.89"

U-joint: 1.188" X 3.625"
Length: 5.50"
Outside Snap Ring

Series: 1350
Spline: 32
Barrel OD: 1.89"
U-joint: 1.188" X 3.625"
Length: 5.50"
Outside Snap Ring

$259.82

Spicer 2-3-15461X Trans Slip Yoke

Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models , 5R55E , A4LD , C3

Series: 1330
Spline: 25
Barrel OD: 1.37"

U-joint: 1.063" X 3.625"
Length: 6.86"
Outside Snap Ring

Series: 1330
Spline: 25
Barrel OD: 1.37"
U-joint: 1.063" X 3.625"
Length: 6.86"
Outside Snap Ring

$245.91

Neapco N3-3-4261X Trans Slip Yoke

Transmission Applications: Fits various manual and automatic transmission with 32 spline output shafts. Fits Transmission Applications: , 4L80E Long Tail , 6L50 , 6L80E , M22 , Richmond

Series: 1350
Spline: 32
Barrel OD: 1.89"

U-joint: 1.188" X 3.625"
Length: 6.94"
Outside Snap Ring

Series: 1350
