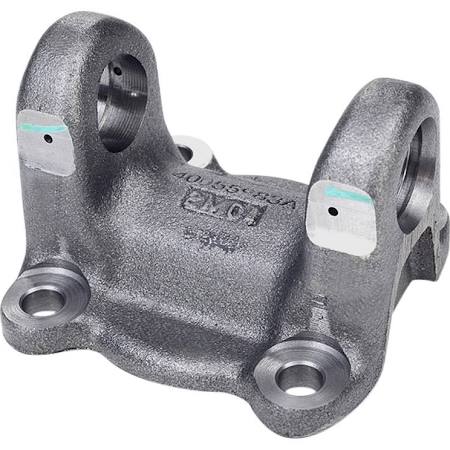

AAM 40055528 Flange Yoke

Vendor: AAM, Sku: 40055528

Product Description

AAM Driveshaft Flange Yoke

AAM driveshaft components are designed, tested and manufactured to maximize performance and durability. All driveshaft components meet the OEM specifications because they are the authentic OEM products. The same products we use to build driveshafts used by vehicle manufacturers around the world.

Specifications

Bolt Circle: 4.75  Inch (120.65 MM)
Swing Diameter: 5.276 Inch (134 MM)
Series: 1485 (1480)
U-Joint Lock Up: 4.295 Inch (109.10 MM)
Bearing Cap Diameter: 1.374 Inch (34.90 MM)
Flange Face to Center Line: 2.248 Inch (57.10 MM)
Number of Bolt Holes: 4
Pilot Diameter: 3.749 Inch (95.22 MM)
Pilot Type Male
Vehicle Make: Chrysler

VMRS: 024-002-016


Alternate Part Option:
PTI 4802-371 Flange Yoke
5102158AA, 74088507, 40022502, 40038507

Sku: 40055528
Vendor: AAM
$98.18
Maximum quantity available reached.

DETAILS

U-Joint Series:
1480 1485
U-Joint Cap Size (B): 1.357"
U-Joint Width (A): 4.178"
Snap Ring Type: Outside Snap Ring
Manufacturer: AAM
Pilot Diameter (G): 3.749" M
Bolt Circle (E): 4.750"
Manufacturer Part Number: 40055528
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
