AAM
AAM 12479126 U-Joint
Universal Joint Kit | 12479126
- 3R Series
- Non Greasable
- Inside Snap Ring
- Cap OD: 1.125" X 1.125"
- Length: 2.563" X 2.563"
- Manufacturer: AAM
- 3R Series
- Non Greasable
- Inside Snap Ring
- Cap OD: 1.125" X 1.125"
- Length: 2.563" X 2.563"
- Manufacturer: AAM
AAM 19256728 U-Joint
Universal Joint Kit | 19256728
- 1355 Series
- Non Greasable
- Outside Snap Ring
- Cap OD: 1.188" X 1.188"
- Length: 3.612" X 3.612"
- Manufacturer: AAM
- 1355 Series
- Non Greasable
- Outside Snap Ring
- Cap OD: 1.188" X 1.188"
- Length: 3.612" X 3.612"
- Manufacturer: AAM
AAM 26060881 End Yoke
End Yoke | 26060881
- U-Joint Series: 3R
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.125"
- Yoke Span: 2.562"
- Hub Dia.: 2.110"
- Style: Outside Snap Ring
Rear Axle Type: GM 8.6" / GM 9.5" / Chrysler 9.25"
- U-Joint Series: 3R
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.125"
- Yoke Span: 2.562"
- Hub Dia.: 2.110"
- Style: Outside Snap Ring
- Rear Axle Type: GM 8.6" / GM 9.5" / Chrysler 9.25"

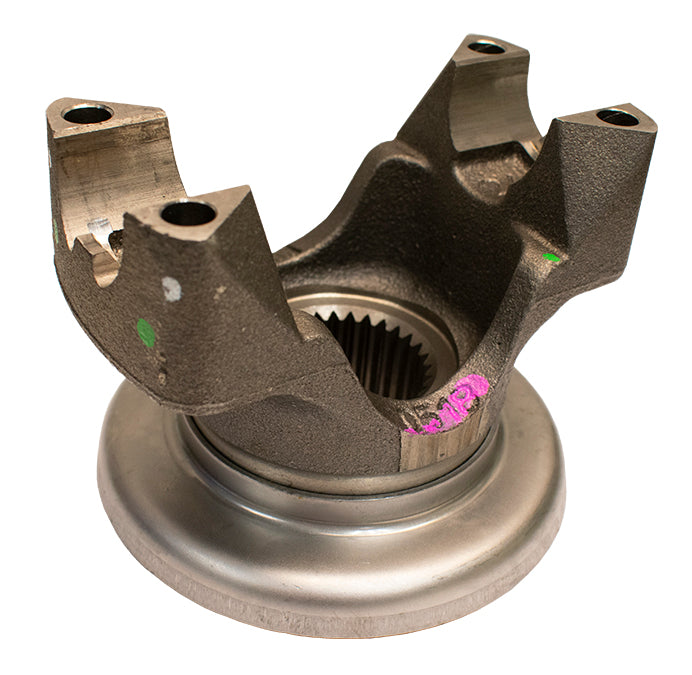

AAM 26060884 End Yoke
End Yoke | 26060884
- U-Joint Series: 1410
- Spline Count: 30
- Spline OD: 1.590"
- Bore Length: 1.150"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.370"
- Style: Outside Snap Ring
Rear Axle Type: GM 10.5" / GM 11.5"
- U-Joint Series: 1410
- Spline Count: 30
- Spline OD: 1.590"
- Bore Length: 1.150"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.370"
- Style: Outside Snap Ring
- Rear Axle Type: GM 10.5" / GM 11.5"
AAM 40006885 YOKE SHAFT
Yoke Shaft | 40006885
YOKE SHAFT3R Series Spline Yoke - Used with GM K Series front prop Series 3R & 1344 Vehicle Make GM Number of Teeth 32 Nominal Tube Dia. 2.75"x.059" Shaft length (B) 95.00mm...
AAM 40007042 Center Bearing
Center Bearing | 40007042
- Bore: 1.378"
- Mounting CL-CL: 6.62"
- Bolt Hole: 0.52" X 0.56"
- Vehicle: GM ,
- Center Bearing
- Manufacturer: AAM
- Series
- Cap OD: X
- Length: X
- Manufacturer: AAM
AAM 40016324 End Yoke
End Yoke | 40016324
- U-Joint Series: 3R
- Spline Count: 27
- Spline OD: 1.188"
- Bore Length: 1.475"
- Cap OD: 1.125"
- Yoke Span: 2.562"
- Hub Dia.: 1.692"
- Style: Inside Snap Ring
Rear Axle Type: GM 7.5"
- U-Joint Series: 3R
- Spline Count: 27
- Spline OD: 1.188"
- Bore Length: 1.475"
- Cap OD: 1.125"
- Yoke Span: 2.562"
- Hub Dia.: 1.692"
- Style: Inside Snap Ring
- Rear Axle Type: GM 7.5"
AAM 40019801 FLANGE YOKE
Flange Yoke | 40019801
- 1344/3R Series
- Pilot Dia.: 3.866" (98.20 mm)
- Outside Snap Ring
-
1.125" (28.57 mm)
Cap X
2.562" (65.08 mm) Span - Bolt Circle: 2.562" (65.08 mm)
- Manufacturer: AAM
- 1344/3R
- Bolt Circle: 3.866" (98.20 mm)
- Outside Snap Ring
- 1.125" (28.57 mm) Cap X 2.562" (65.08 mm) Span
- 2.562" (65.08 mm)
- Manufacturer: AAM
AAM 40021327 Boot Kit
Hardware | 40021327
Driveshaft Boot Kit One Boot & Two 62mm Clamps ID 2.175" Approx Length 6.5" Approx, end to end Known to fit some:– 2003+ DODGE, CHEVY 2500 3500 SERIES AAM...
AAM 40021334 Center Bearing
Center Bearing | 40021334
- Bore: 1.575"
- Mounting CL-CL: 6.62"
- Bolt Hole: 0.52" X 0.56"
- Vehicle: Chrysler ,
- Center Bearing
- Manufacturer: AAM
- Series
- Cap OD: X
- Length: X
- Manufacturer: AAM
AAM 40025925 End Yoke
End Yoke | 40025925
- U-Joint Series: 1350
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.188"
- Yoke Span: 3.622"
- Hub Dia.: 1.940"
- Style: Outside Snap Ring
Rear Axle Type: GM 8.5"/GM 9.25"
- U-Joint Series: 1350
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.188"
- Yoke Span: 3.622"
- Hub Dia.: 1.940"
- Style: Outside Snap Ring
- Rear Axle Type: GM 8.5"/GM 9.25"
AAM 40029412 End Yoke
End Yoke | 40029412
- U-Joint Series: 3R
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.125"
- Yoke Span: 2.562"
- Hub Dia.: 2.110"
- Style: Inside Snap Ring
Rear Axle Type: GM 8.6" / GM 9.5" / Chrysler 9.25"
- U-Joint Series: 3R
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.125"
- Yoke Span: 2.562"
- Hub Dia.: 2.110"
- Style: Inside Snap Ring
- Rear Axle Type: GM 8.6" / GM 9.5" / Chrysler 9.25"
