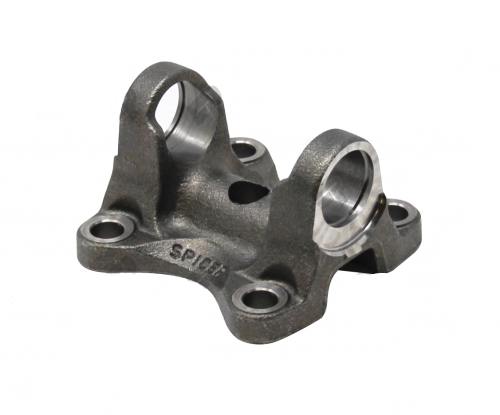

PTI 3502-063 Flange Yoke
Vendor: PTI, Sku: 3502-063
DETAILS
| U-Joint Series: | 1350 |
| U-Joint Cap Size (B): | 1.188" |
| U-Joint Width (A): | 3.625" |
| Snap Ring Type: | Outside Snap Ring |
| Manufacturer: | PTI |
| Pilot Diameter (G): | 0.630" F |
| Bolt Circle (E): | 4.330" |
| Manufacturer Part Number: | 3502-063 |
| Flange or Swing Diameter (J): | |
| Bolt Hole (F): | 0.500" |
| Number of Bolt Holes: | 4 |
| OEM/Alternate Part Number: |
