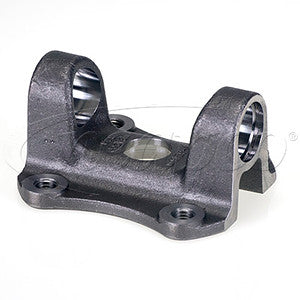

Neapco N3-2-1709 Flange Yoke

Vendor: Neapco, Sku: N3-2-1709

Product Description

Flange Yoke - Driveshaft

Specifications

Bolt Circle: 4.25 Inch
Series: 1410
Outside U-joint Dimensions: 4.188 Inch
Bearing Cap Diameter: 1.188 Inch
Flange Face to Center Line: 1.65 Inch
Hole/Thread Size: M12 x 1.75 Inch
Joint Angle: 20 Degrees
Number of Bolt Holes: 4
Pilot Diameter: 2.68 Inch Female




Alternate Part Number:
AAM F81Z4865CA Flange Yoke
Spicer 3-2-1709 Flange Yoke
PTI 4102-1709 Flange Yoke

Sku: N3-2-1709
Vendor: Neapco
$98.91
Maximum quantity available reached.

DETAILS

U-Joint Series:
1410
U-Joint Cap Size (B): 1.188"
U-Joint Width (A): 4.188"
Snap Ring Type: Outside Snap Ring
Manufacturer: Neapco
Pilot Diameter (G): 2.680" F
Bolt Circle (E): 4.250"
Manufacturer Part Number: N3-2-1709
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:
00083869379210
