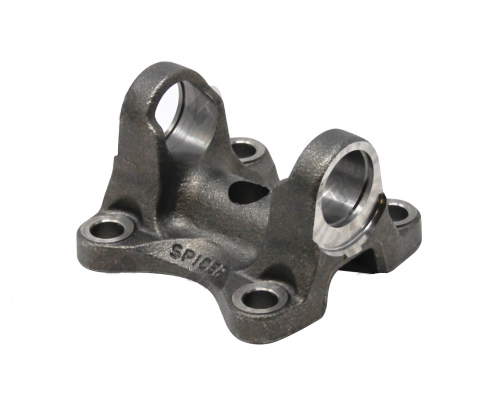

Spicer 2-2-479 Flange Yoke

Vendor: Spicer/Dana, Sku: 2-2-479

Product Description

Driveshaft Flange Yoke

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Specifications

BOLT CIRCLE:
3.75"
DL SERIES:
1310 - 10 Series
U-JOINT LOCK UP:
3.219”
BEARING CAP DIAMETER:
1.063”
FLANGE FACE TO CL:
 1.381" (35.1mm)
HOLE/THREAD SIZE:
 0.441" (11.2mm)
JOINT ANGLE:
20.0
NUMBER OF BOLT HOLES:
4
PILOT DIAMETER:
2.75" Male

VMRS: 024002016

Sku: 2-2-479
Vendor: Spicer/Dana
$27.98
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.062"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: Spicer/Dana
Pilot Diameter (G): 2.750" - MALE
Bolt Circle (E): Bolt Circle 3.750"
Manufacturer Part Number: 2-2-479
Flange or Swing Diameter (J): Flange Dia. 4.625
Bolt Hole (F): .438 - DRILLED
Number of Bolt Holes: 4
Flange Face to Centerline U-Joint (H): 1.375"
OEM/Alternate Part Number:
023913228927

“Outside

.
