End Yokes
PTI 3504-08 End Yoke
End Yoke | 3504-08
- Series: ∙ 1350
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.425”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
Rear Axle Type: | Ford 9.00"
- U-Joint Series: , 1350
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.425”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 9.00"
PTI 3504-09 End Yoke
End Yoke | 3504-09
- Series: ∙ 1350
- Spline Count: 31
- Spline OD: 1.343”
- Bore Length: 1.640”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
Rear Axle Type: | Ford 10.25" | Ford 10.50" | Ford 9.75
- U-Joint Series: , 1350
- Spline Count: 31
- Spline OD: 1.343”
- Bore Length: 1.640”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 10.25" | Ford 10.50" | Ford 9.75
PTI 3504-243 End Yoke
End Yoke | 3504-243
- Series: ∙ 1350
- Spline Count: 24
- Spline OD: 1.250”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.876”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1350
- Spline Count: 24
- Spline OD: 1.250”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.876”
- Style: Outside Snap Ring
- Rear Axle Type:
PTI 3504-60 End Yoke
End Yoke | 3504-60
- Series: ∙ 1350
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.875”
- Style: Outside Snap Ring
Rear Axle Type: | Dana 60/70
- U-Joint Series: , 1350
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.875”
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 60/70
PTI 3504-85 End Yoke
End Yoke | 3504-85
- Series: ∙ 1350
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.940"
- Style: Outside Snap Ring
Rear Axle Type: | GM 8.50" | GM 8.60"
- U-Joint Series: , 1350
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.150"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.940"
- Style: Outside Snap Ring
- Rear Axle Type: | GM 8.50" | GM 8.60"
PTI 3R04-01 End Yoke
End Yoke | 3R04-01
- Series: ∙ 3R
- Spline Count: 27
- Spline OD: 1.188”
- Bore Length: 1.475”
- Cap OD: 1.125”
- Yoke Span: 2.563”
- Hub Dia.: 1.692”
- Style: Inside Snap Ring
Rear Axle Type: | GM 7.50"
- U-Joint Series: , 3R
- Spline Count: 27
- Spline OD: 1.188”
- Bore Length: 1.475”
- Cap OD: 1.125”
- Yoke Span: 2.563”
- Hub Dia.: 1.692”
- Style: Inside Snap Ring
- Rear Axle Type: | GM 7.50"

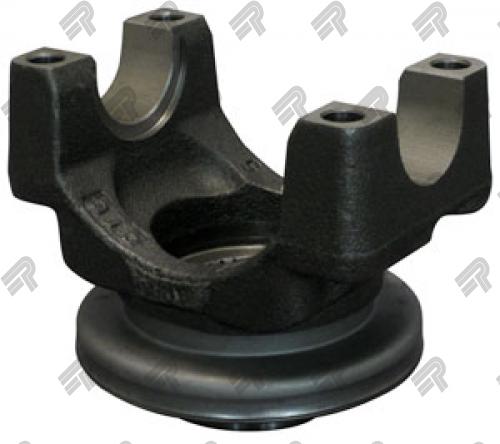

PTI 3R04-02 End Yoke
End Yoke | 3R04-02
- Series: ∙ 3R
- Spline Count: 30
- Spline OD: 1.312”
- Bore Length: 1.150”
- Cap OD: 1.125”
- Yoke Span: 2.563”
- Hub Dia.: 1.940”
- Style: Inside Snap Ring
Rear Axle Type: | GM 8.50" | GM 9.25"
- U-Joint Series: , 3R
- Spline Count: 30
- Spline OD: 1.312”
- Bore Length: 1.150”
- Cap OD: 1.125”
- Yoke Span: 2.563”
- Hub Dia.: 1.940”
- Style: Inside Snap Ring
- Rear Axle Type: | GM 8.50" | GM 9.25"
PTI 3R04-03 End Yoke
End Yoke | 3R04-03
- Series: ∙ 3R
- Spline Count: 30
- Spline OD: 1.312”
- Bore Length: 1.150”
- Cap OD: 1.125”
- Yoke Span: 2.563”
- Hub Dia.: 2.110”
- Style: Inside Snap Ring
Rear Axle Type: | GM 8.60"
- U-Joint Series: , 3R
- Spline Count: 30
- Spline OD: 1.312”
- Bore Length: 1.150”
- Cap OD: 1.125”
- Yoke Span: 2.563”
- Hub Dia.: 2.110”
- Style: Inside Snap Ring
- Rear Axle Type: | GM 8.60"
PTI 4104-02 End Yoke
End Yoke | 4104-02
- Series: ∙ 1410
- Spline Count: 37
- Spline OD: 1.609"
- Bore Length: 2.000"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.500"
- Style: Outside Snap Ring
Rear Axle Type: | Dana 80
- U-Joint Series: , 1410
- Spline Count: 37
- Spline OD: 1.609"
- Bore Length: 2.000"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.500"
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 80
PTI 4104-03 End Yoke
End Yoke | 4104-03
- Series: ∙ 1410
- Spline Count: 31
- Spline OD: 1.343"
- Bore Length: 1.640"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
Rear Axle Type: | Ford 10.50" | Ford 9.75"
- U-Joint Series: , 1410
- Spline Count: 31
- Spline OD: 1.343"
- Bore Length: 1.640"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 10.50" | Ford 9.75"
PTI 4104-04 End Yoke
End Yoke | 4104-04
- Series: ∙ 1410
- Spline Count: 30
- Spline OD: 1.590”
- Bore Length: 1.630"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.370"
- Style: Outside Snap Ring
Rear Axle Type: | GM 10.50" | GM 11.50"
- U-Joint Series: , 1410
- Spline Count: 30
- Spline OD: 1.590”
- Bore Length: 1.630"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.370"
- Style: Outside Snap Ring
- Rear Axle Type: | GM 10.50" | GM 11.50"
PTI 4104-05 End Yoke
End Yoke | 4104-05
- Series: ∙ 1410
- Spline Count: 30
- Spline OD: 1.590"
- Bore Length: 1.630"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.370"
- Style: Outside Snap Ring
Rear Axle Type: | GM 10.50" | GM 11.50"
- U-Joint Series: , 1410
- Spline Count: 30
- Spline OD: 1.590"
- Bore Length: 1.630"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.370"
- Style: Outside Snap Ring
- Rear Axle Type: | GM 10.50" | GM 11.50"
