Action Machine Inc. is a distributor of high quality driveshaft end yokes.
Use the filters below to help narrow your selection.
Free shipping on all orders over $100.00 within the USA.
If you do not see the end yoke that you are looking for please contact us for assistance.
Hours: Monday - Friday, 7:00 am to 4:30 pm EST
CONTACT US | CHAT | (574) 287-9650
End Yokes
PTI 3104-321CV End Yoke
End Yoke | 3104-321CV
- Series: ∙ 1310
- Spline Count: 32
- Spline OD: 1.401"
- Bore Length: 2.000"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.943"
- Style: Outside Snap Ring
Rear Axle Type: | Jeep
- U-Joint Series: , 1310
- Spline Count: 32
- Spline OD: 1.401"
- Bore Length: 2.000"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.943"
- Style: Outside Snap Ring
- Rear Axle Type: | Jeep
PTI 3104-32CV End Yoke - CV Construction
End Yoke | 3104-32CV
- Series: ∙ 1310
- Spline Count: 32
- Spline OD: 1.401”
- Bore Length: 2.000”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.880”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 32
- Spline OD: 1.401”
- Bore Length: 2.000”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.880”
- Style: Outside Snap Ring
- Rear Axle Type:

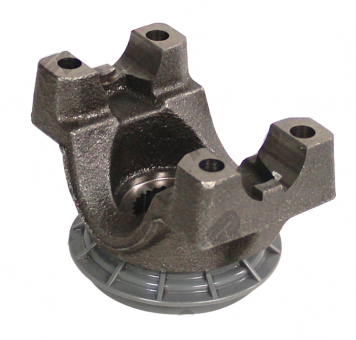

PTI 3304-05 End Yoke
End Yoke | 3304-05
- Series: ∙ 1330
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.275"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1330
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.275"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
- Rear Axle Type:

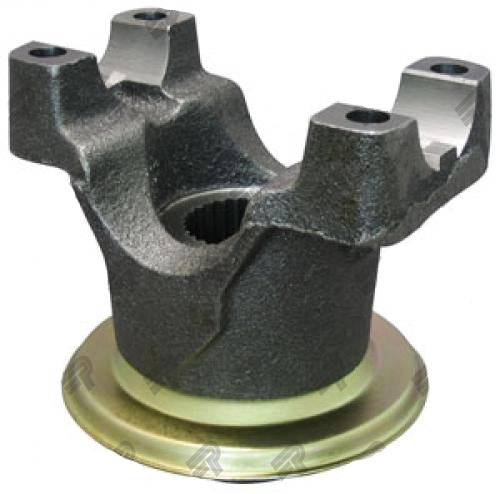

PTI 3304-06 End Yoke
End Yoke | 3304-06
- Series: ∙ 1330 Ford
- Spline Count: 28
- Spline OD: 1.238"
- Bore Length: 2.425"
- Cap OD: 1.125"
- Yoke Span: 3.625"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1330 Ford
- Spline Count: 28
- Spline OD: 1.238"
- Bore Length: 2.425"
- Cap OD: 1.125"
- Yoke Span: 3.625"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
- Rear Axle Type:

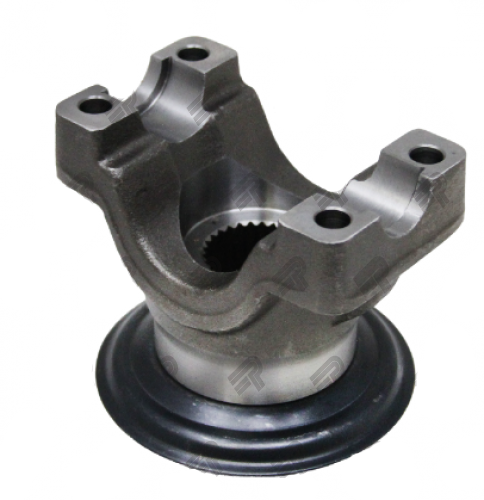

PTI 3304-283 End Yoke
End Yoke | 3304-283
- Series: ∙ 1330
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.430"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
Rear Axle Type: | Ford 9.00"
- U-Joint Series: , 1330
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.430"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 9.00"

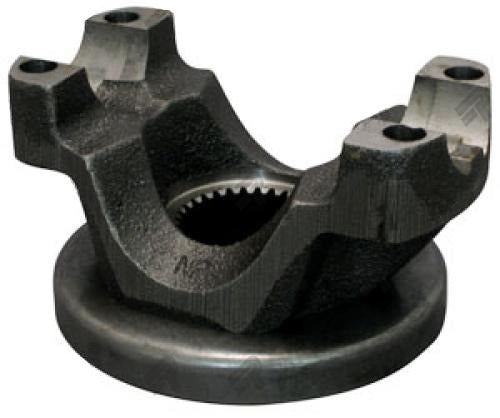

PTI 3304-30 End Yoke
End Yoke | 3304-30
- Series: ∙ 1330
- Spline Count: 30
- Spline OD: 1.328"
- Bore Length: 1.190"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.739"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1330
- Spline Count: 30
- Spline OD: 1.328"
- Bore Length: 1.190"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.739"
- Style: Outside Snap Ring
- Rear Axle Type:
PTI 3504-02 End Yoke
End Yoke | 3504-02
- Series: ∙ 1350
- Spline Count: 28
- Spline OD: 1.229"
- Bore Length: 1.375"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.844"
- Style: Outside Snap Ring
Rear Axle Type: | AMC 20
- U-Joint Series: , 1350
- Spline Count: 28
- Spline OD: 1.229"
- Bore Length: 1.375"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.844"
- Style: Outside Snap Ring
- Rear Axle Type: | AMC 20
PTI 3504-03 End Yoke
End Yoke | 3504-03
- Series: ∙ 1350
- Spline Count: 31
- Spline OD: 1.343”
- Bore Length: 1.262”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
Rear Axle Type: | Ford 10.25"
- U-Joint Series: , 1350
- Spline Count: 31
- Spline OD: 1.343”
- Bore Length: 1.262”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 10.25"
PTI 3504-04 End Yoke
End Yoke | 3504-04
- Series: ∙ 1350
- Spline Count: 30
- Spline OD: 1.312”
- Bore Length: 1.150”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 2.110”
- Style: Outside Snap Ring
Rear Axle Type: | Chrysler 9.25" Front Axle | GM 8.60" | GM 9.50"
- U-Joint Series: , 1350
- Spline Count: 30
- Spline OD: 1.312”
- Bore Length: 1.150”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 2.110”
- Style: Outside Snap Ring
- Rear Axle Type: | Chrysler 9.25" Front Axle | GM 8.60" | GM 9.50"
PTI 3504-05 End Yoke
End Yoke | 3504-05
- Series: ∙ 1350
- Spline Count: 30
- Spline OD: 1.590”
- Bore Length: 1.642”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 2.200”
- Style: Outside Snap Ring
Rear Axle Type: | GM 10.50"
- U-Joint Series: , 1350
- Spline Count: 30
- Spline OD: 1.590”
- Bore Length: 1.642”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 2.200”
- Style: Outside Snap Ring
- Rear Axle Type: | GM 10.50"
PTI 3504-06 End Yoke
End Yoke | 3504-06
- Series: ∙ 1350
- Spline Count: 26
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
Rear Axle Type: | Dana 44/35
- U-Joint Series: , 1350
- Spline Count: 26
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 44/35
PTI 3504-07 End Yoke
End Yoke | 3504-07
- Series: ∙ 1350
- Spline Count: 30
- Spline OD: 1.328”
- Bore Length: 1.200”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.739”
- Style: Outside Snap Ring
Rear Axle Type: | GM 8.875"-12 Bolt
- U-Joint Series: , 1350
- Spline Count: 30
- Spline OD: 1.328”
- Bore Length: 1.200”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.739”
- Style: Outside Snap Ring
- Rear Axle Type: | GM 8.875"-12 Bolt
