Action Machine Inc. is a distributor of high quality driveshaft end yokes.
Use the filters below to help narrow your selection.
Free shipping on all orders over $100.00 within the USA.
If you do not see the end yoke that you are looking for please contact us for assistance.
Hours: Monday - Friday, 7:00 am to 4:30 pm EST
CONTACT US | CHAT | (574) 287-9650
End Yokes
PTI 2904-29 End Yoke
End Yoke | 2904-29
- Series: ∙ 7290
- Spline Count: 29
- Spline OD: 1.263”
- Bore Length: 1.500”
- Cap OD: 1.125"
- Yoke Span: 2.625” Yoke Span: 2.63"
- Hub Dia.: 1.875”
- Style: Inside Snap Ring
Rear Axle Type: | Chrysler 9.25" Front Axle
- U-Joint Series: , 7290
- Spline Count: 29
- Spline OD: 1.263”
- Bore Length: 1.500”
- Cap OD: 1.125"
- Yoke Span: 2.625” Yoke Span: 2.63"
- Hub Dia.: 1.875”
- Style: Inside Snap Ring
- Rear Axle Type: | Chrysler 9.25" Front Axle
PTI 2904-60 End Yoke
End Yoke | 2904-60
- Series: ∙ 7290
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.500”
- Cap OD: 1.125"
- Yoke Span: 2.625” Yoke Span: 2.63"
- Hub Dia.: 1.875”
- Style: Inside Snap Ring
Rear Axle Type: | Dana 60/70
- U-Joint Series: , 7290
- Spline Count: 29
- Spline OD: 1.276”
- Bore Length: 1.500”
- Cap OD: 1.125"
- Yoke Span: 2.625” Yoke Span: 2.63"
- Hub Dia.: 1.875”
- Style: Inside Snap Ring
- Rear Axle Type: | Dana 60/70

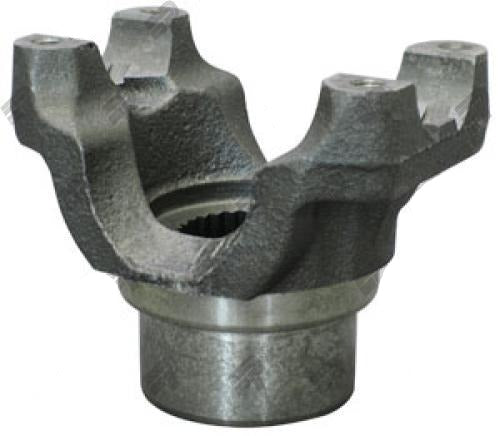

PTI 3104-07 End Yoke
End Yoke | 3104-07
- Series: ∙ 1310
- Spline Count: 28
- Spline OD: 1.229"
- Bore Length: 1.375"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.844"
- Style: Outside Snap Ring
Rear Axle Type: | Jeep
- U-Joint Series: , 1310
- Spline Count: 28
- Spline OD: 1.229"
- Bore Length: 1.375"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.844"
- Style: Outside Snap Ring
- Rear Axle Type: | Jeep

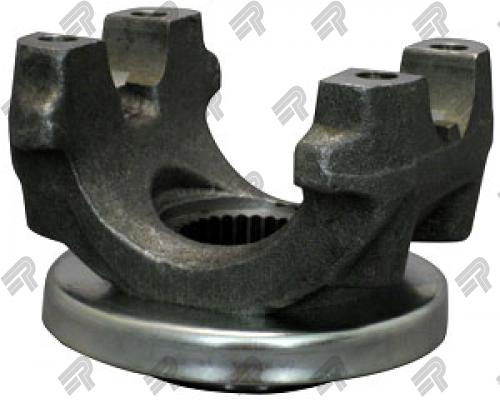

PTI 3104-09 End Yoke
End Yoke | 3104-09
- Series: ∙ 1310
- Spline Count: 30
- Spline OD: 1.328”
- Bore Length: 1.170”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.739”
- Style: Outside Snap Ring
Rear Axle Type: | GM 8.875"-12 Bolt
- U-Joint Series: , 1310
- Spline Count: 30
- Spline OD: 1.328”
- Bore Length: 1.170”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.739”
- Style: Outside Snap Ring
- Rear Axle Type: | GM 8.875"-12 Bolt
PTI 3104-10 End Yoke
End Yoke | 3104-10
- Series: ∙ 1310
- Spline Count: 10
- Spline OD: 1.125”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 10
- Spline OD: 1.125”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
- Rear Axle Type:
PTI 3104-1921 End Yoke
End Yoke | 3104-1921
- Series: ∙ 1310
- Spline Count: 10
- Spline OD: 1.172”
- Bore Length: 1.438”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.250”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 10
- Spline OD: 1.172”
- Bore Length: 1.438”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.250”
- Style: Outside Snap Ring
- Rear Axle Type:
PTI 3104-242 End Yoke
End Yoke | 3104-242
- Series: ∙ 1310
- Spline Count: 24
- Spline OD: 1.250”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.876”
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1310
- Spline Count: 24
- Spline OD: 1.250”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.876”
- Style: Outside Snap Ring
- Rear Axle Type:
PTI 3104-26CV End Yoke
End Yoke | 3104-26CV
- Series: ∙ 1310
- Spline Count: 26
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
Rear Axle Type: | Dana 30/44/50 | Dana 300
- U-Joint Series: , 1310
- Spline Count: 26
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 30/44/50 | Dana 300
PTI 3104-27 End Yoke
End Yoke | 3104-27
- Series: ∙ 1310
- Spline Count: 27
- Spline OD: 1.172”
- Bore Length: 1.602”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.688”
- Style: Outside Snap Ring
Rear Axle Type: | Chrysler 7.25" | Chrysler 8.25"
- U-Joint Series: , 1310
- Spline Count: 27
- Spline OD: 1.172”
- Bore Length: 1.602”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.688”
- Style: Outside Snap Ring
- Rear Axle Type: | Chrysler 7.25" | Chrysler 8.25"

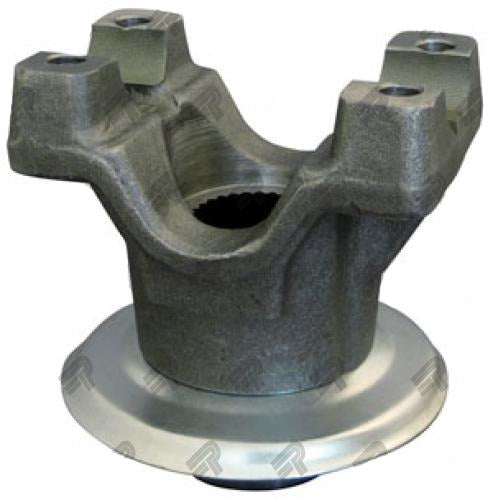

PTI 3104-28 End Yoke
End Yoke | 3104-28
- Series: ∙ 1310
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.425”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
Rear Axle Type: | Ford 9.00"
- U-Joint Series: , 1310
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.425”
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.812”
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 9.00"
PTI 3104-281 End Yoke
End Yoke | 3104-281
- Series: ∙ 1310
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.430"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
Rear Axle Type: | Ford 9.00"
- U-Joint Series: , 1310
- Spline Count: 28
- Spline OD: 1.218”
- Bore Length: 2.430"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
- Rear Axle Type: | Ford 9.00"
PTI 3104-303 End Yoke
End Yoke | 3104-303
- Series: ∙ 1310
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.940"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.940"
- Style: Outside Snap Ring
Rear Axle Type: | GM 12 Bolt
- U-Joint Series: , 1310
- Spline Count: 30
- Spline OD: 1.312"
- Bore Length: 1.940"
- Cap OD: 1.063"
- Yoke Span: 3.22"
- Hub Dia.: 1.940"
- Style: Outside Snap Ring
- Rear Axle Type: | GM 12 Bolt
