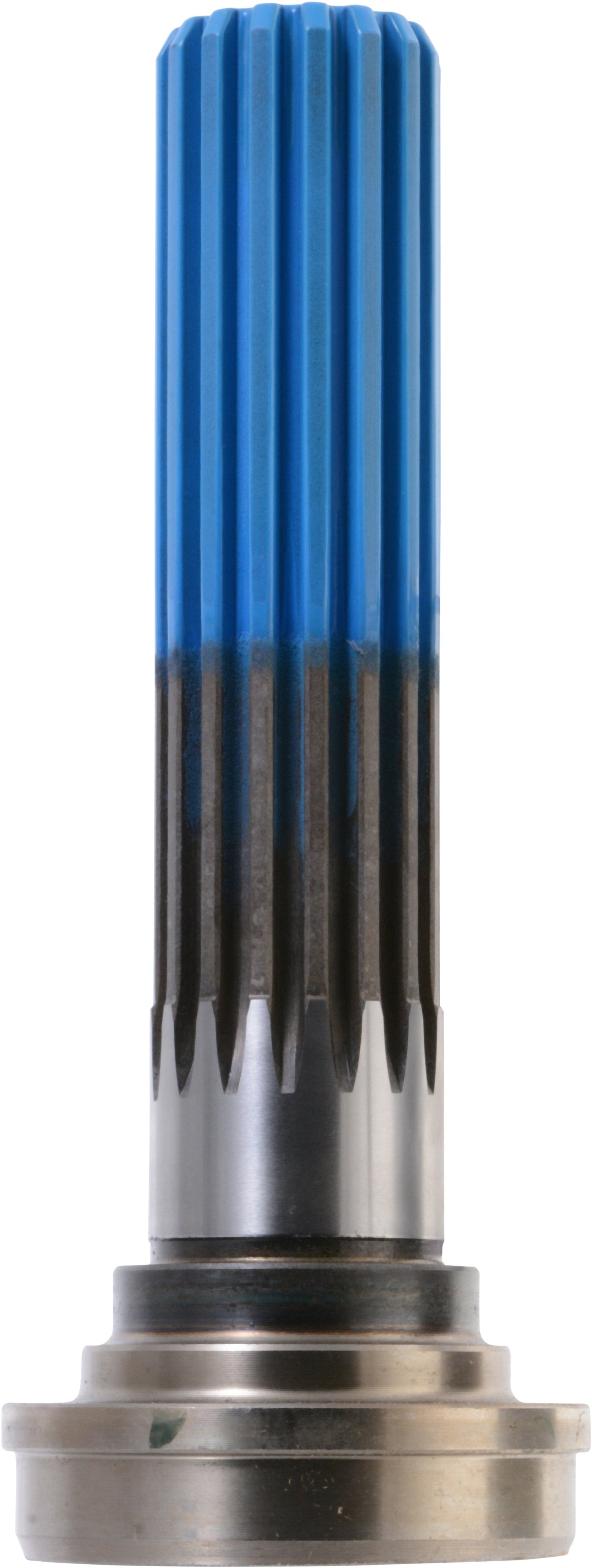

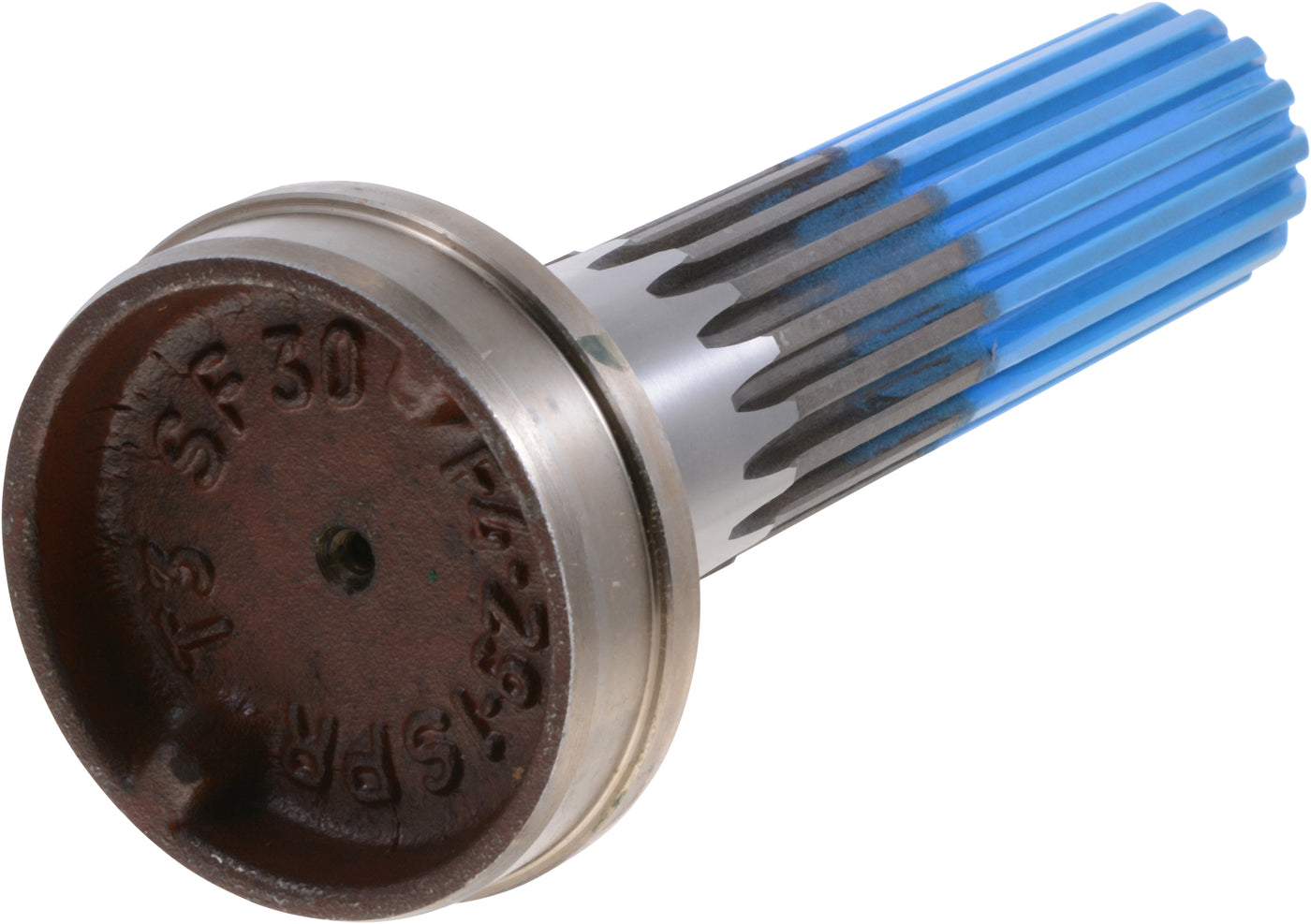

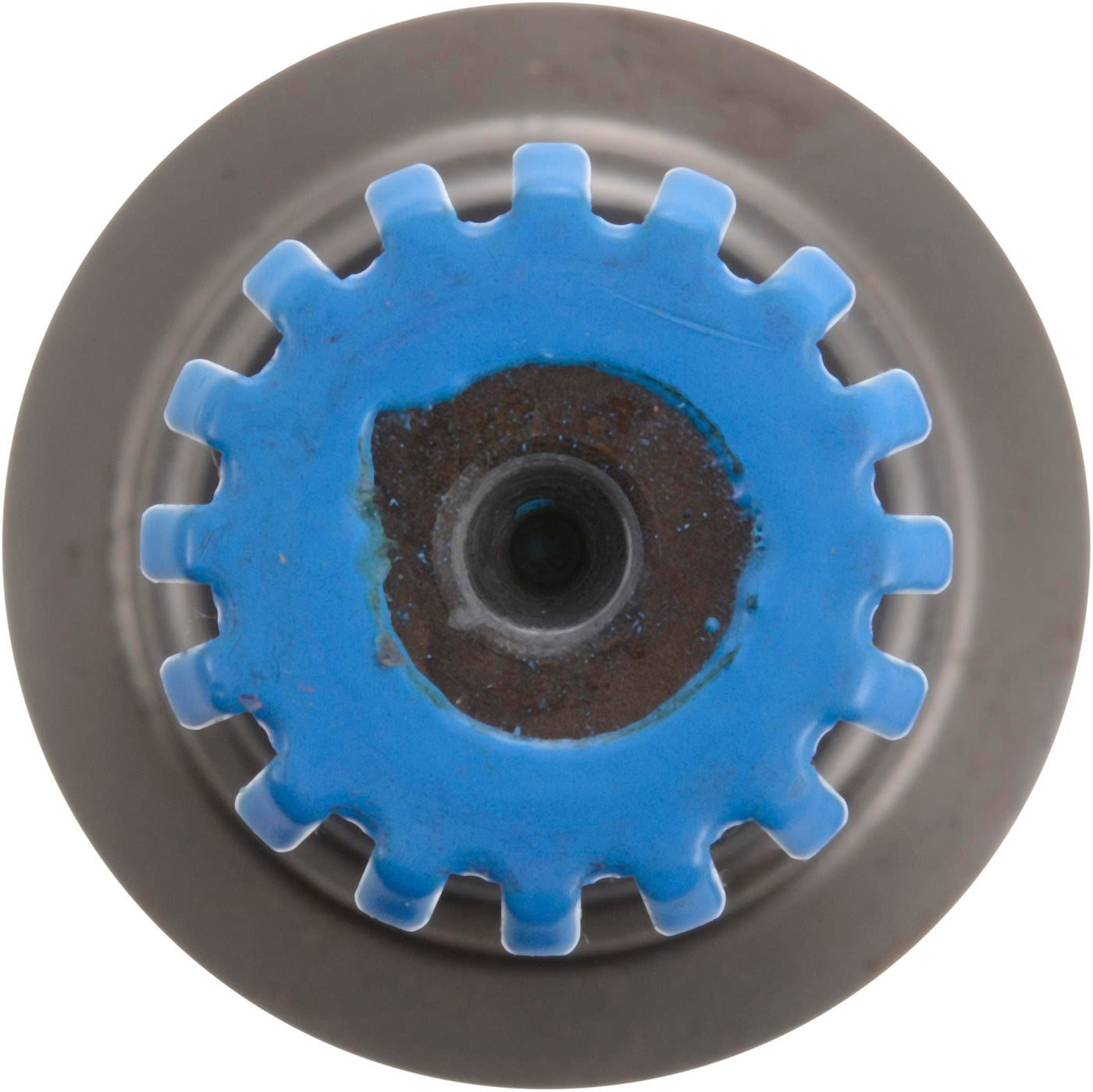

Spicer 4-53-61 Midship Tube Shaft

Vendor: Spicer/Dana, Sku: 4-53-61

Product Description

Midship Tube Shaft

Specifications

Bearing Diameter: 1.772 Inch
(1.7721 Max / 1.7716 Min)
Butt Diameter: 3.321 Inch
End of Spline to Bearing Shoulder: 7.469 Inch
End of Spline to Point of Weld: 8.562 Inch
Length of Shoulder: 0.812 Inch
Length of Spline: 5.938 Inch
Shoulder Diameter: 2.188 Inch
Spline Diameter: 1.750 Inch
Number Teeth: 16
Tubing Diameter: 3.500 Inch
Tubing Wall: 0.095 Inch
Series: 1550
Material Steel

VMRS: 024002060



Sku: 4-53-61
Vendor: Spicer/Dana
$143.98
