Spicer 3-3-2591KX Slip Yoke (Obsolete)

Vendor: Spicer/Dana, Sku: 3-3-2591KX

Product Description

This part has been discontinued by the manufacturer.

If you have any questions we are here to help:
CHAT | PHONE (574)287-9650 | CONTACT US

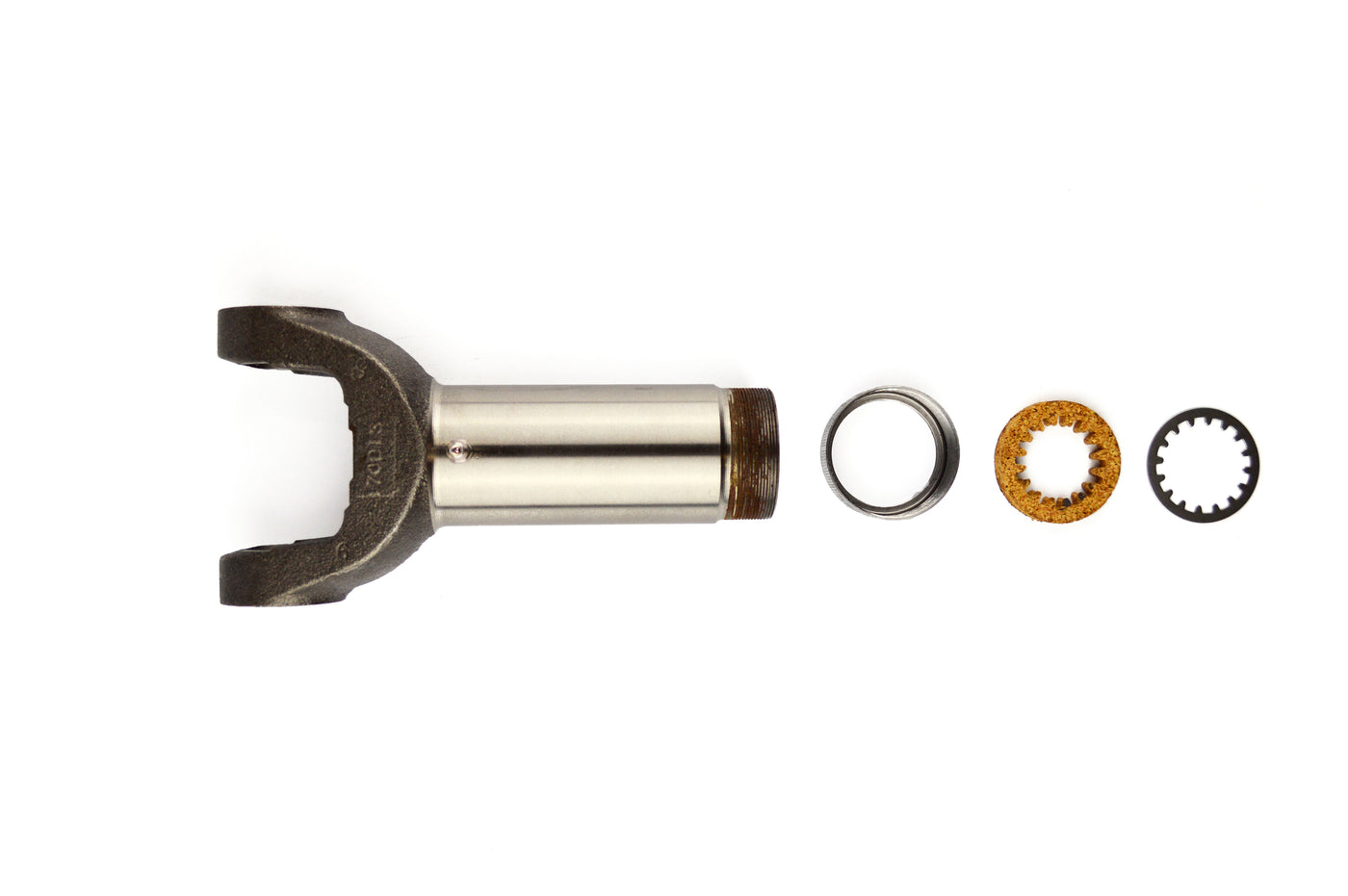

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1350
U-Joint Width (B): 3.625 Inch
U-Joint Cap Diameter (A): 1.188 Inch
Center Line to End of Spline (C): 6.625 Inch
Center Line to Face of Plug: 1.188 Inch
Spline Outside Diameter (E): 1.375 Inch
Spline Count (F): 16
Greasable: Yes
Joint Angle: 45.0 Degree
Material: Steel
Dust Cap: D3G

VMRS: 024002038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Compatible Parts:
Spicer 5-1350X U-Joint
Spicer D3G U-Joint

Sku: 3-3-2591KX
Vendor: Spicer/Dana
