Spicer 2-2-02313 Flange Yoke

Vendor: Spicer/Dana, Sku: 2-2-02313

Product Description

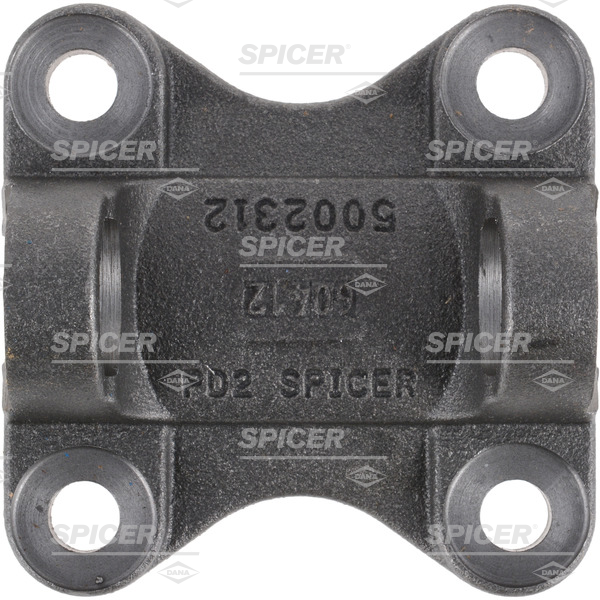

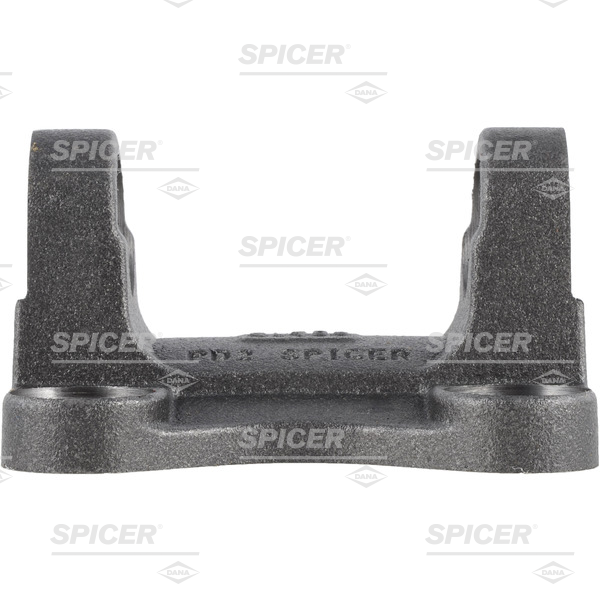

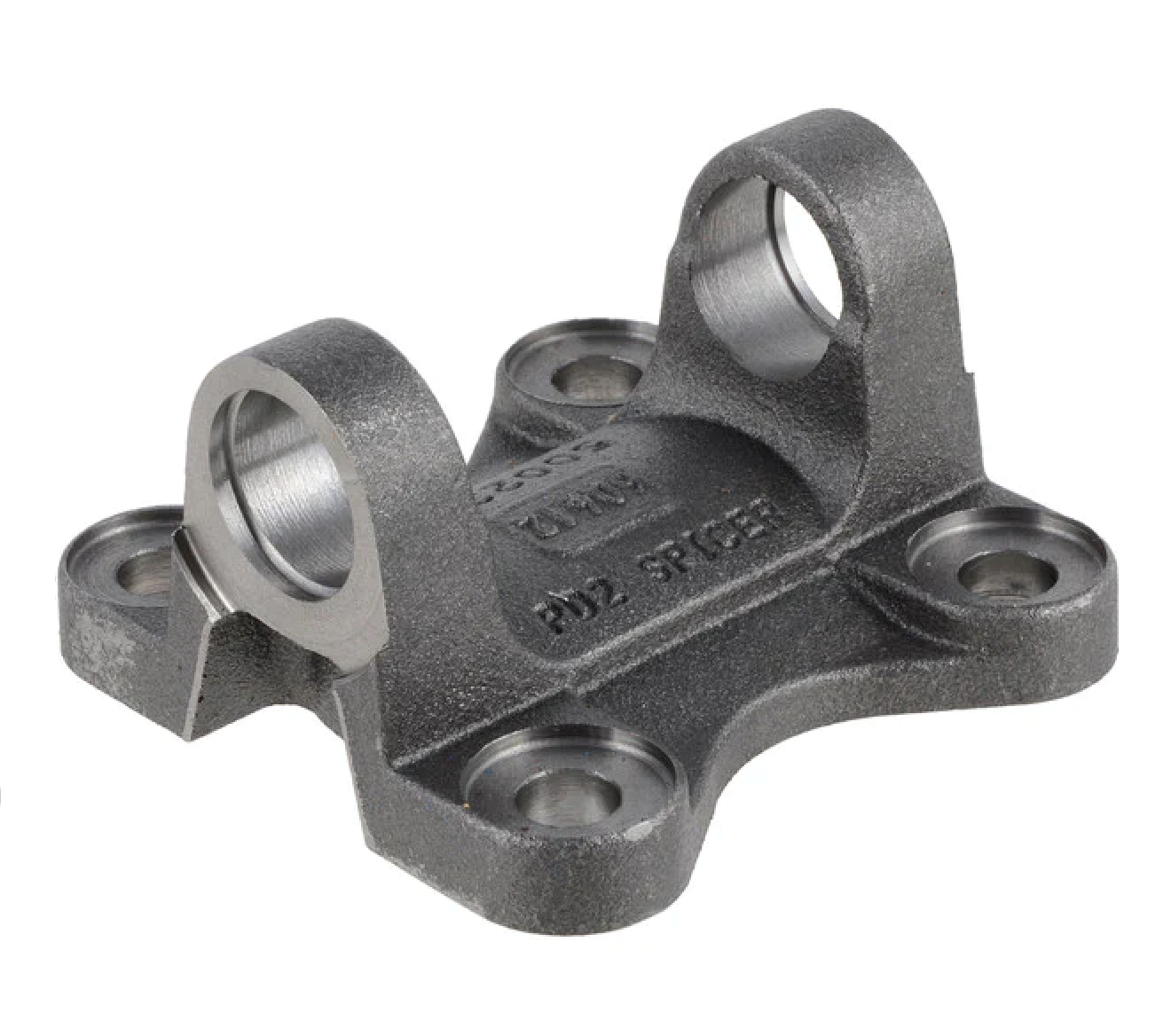

Spicer Drive Shaft Flange Yoke

U-Joint Type: Outside Lock-Up
Bolt Circle: 4.251 Inch
Series: 1330
Snap Ring to Snap Ring: 3.625 Inch
Bearing Cap Diameter: 1.062 Inch
Flange Face to CL: 1.618 Inch
Hole Diameter: 0.500 Inch - Drilled
Number of Bolt Holes: 4
Pilot Diameter: 2.560 Inch - Female
Material: Steel
Flange Or Swing Diameter: 5.360 Inch

 VMRS: 024002016


OE Part Number:
5002313

Alternate Part Number:
PTI 3302-256 Flange Yoke

Sku: 2-2-02313
Vendor: Spicer/Dana
$64.98
Maximum quantity available reached.

DETAILS

U-Joint Series:
1330
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.625"
Snap Ring Type: Outside Snap Ring
Manufacturer: Spicer/Dana
Pilot Diameter (G): 2.560" F
Bolt Circle (E): 4.251"
Manufacturer Part Number: 2-2-02313
Flange or Swing Diameter (J): 5.360"
Bolt Hole (F): 0.500"
Number of Bolt Holes: 4
OEM/Alternate Part Number:
023913237752

“Outside

.
