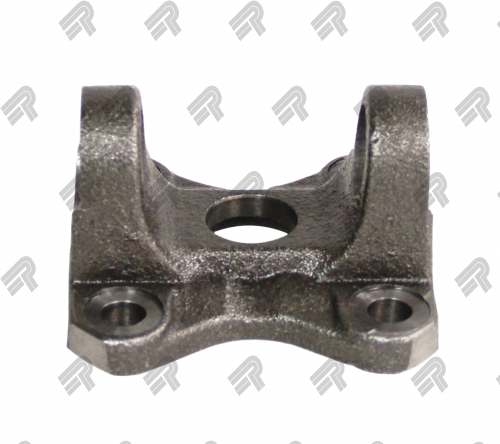

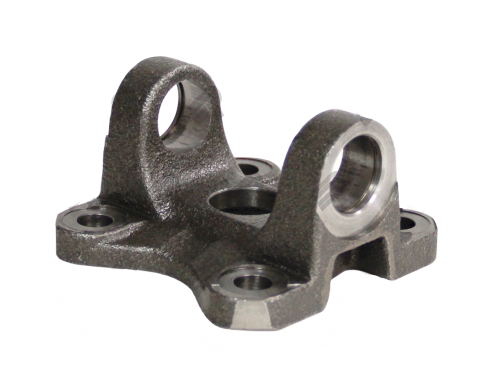

PTI 3302-256 Flange Yoke

Vendor: PTI, Sku: 3302-256

Product Description

PTI Drive Shaft Flange Yoke

U-Joint Type: Outside Lock-Up
Bolt Circle: 4.250 Inch
Series: 1330
Snap Ring to Snap Ring: 3.625 Inch
Bearing Cap Diameter: 1.062 Inch
Flange Face to CL: 1.644 Inch
Hole Diameter: 0.500 Inch - Drilled
Number of Bolt Holes: 4
Pilot Diameter: 2.559 Inch - Female
Material: Steel
Flange Or Swing Diameter: 5.320 Inch

 VMRS: 024002016


OE Part Number:
5002313

Alternate Part Number:
Spicer 2-2-02313 Flange Yoke

Sku: 3302-256
Vendor: PTI
$34.99
Maximum quantity available reached.

DETAILS

U-Joint Series:
1330
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.625"
Snap Ring Type: Outside Snap Ring
Manufacturer: PTI
Pilot Diameter (G): 2.559" F
Bolt Circle (E): 4.250"
Manufacturer Part Number: 3302-256
Flange or Swing Diameter (J): 5.320"
Bolt Hole (F): 0.500"
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
