Yoke
AMI 3-3-4281X Trans Slip Yoke
Slip Yoke | AMI_3-3-4281X
Transmission Applications: Fits all 27 spline output shafts. Fits Transmission Models , 200-R4 , 4L60E , 4L65E , 700R4 , Auto Gear , M-6 , M21 , Saginaw , T-10 , T-5 , T56 , TH-350
- Series: 1350
- Spline: 27
- Barrel OD: 1.50"
- U-joint: 1.188" X 3.625"
- Length: 6.94"
- Outside Snap Ring
- Series: 1350
- Spline: 27
- Barrel OD: 1.50"
- U-joint: 1.188" X 3.625"
- Length: 6.94"
- Outside Snap Ring
AMI 3-4-6901-1 End Yoke
End Yoke | AMI_3-4-6901-1
- Series: ∙ 1480
- Spline Count: 10
- Spline OD: 1.500"
- Bore Length: 2.000"
- Cap OD: 1.375"
- Yoke Span: 4.188"
- Hub Dia.: 1.810"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1480
- Spline Count: 10
- Spline OD: 1.500"
- Bore Length: 2.000"
- Cap OD: 1.375"
- Yoke Span: 4.188"
- Hub Dia.: 1.810"
- Style: Outside Snap Ring
- Rear Axle Type:

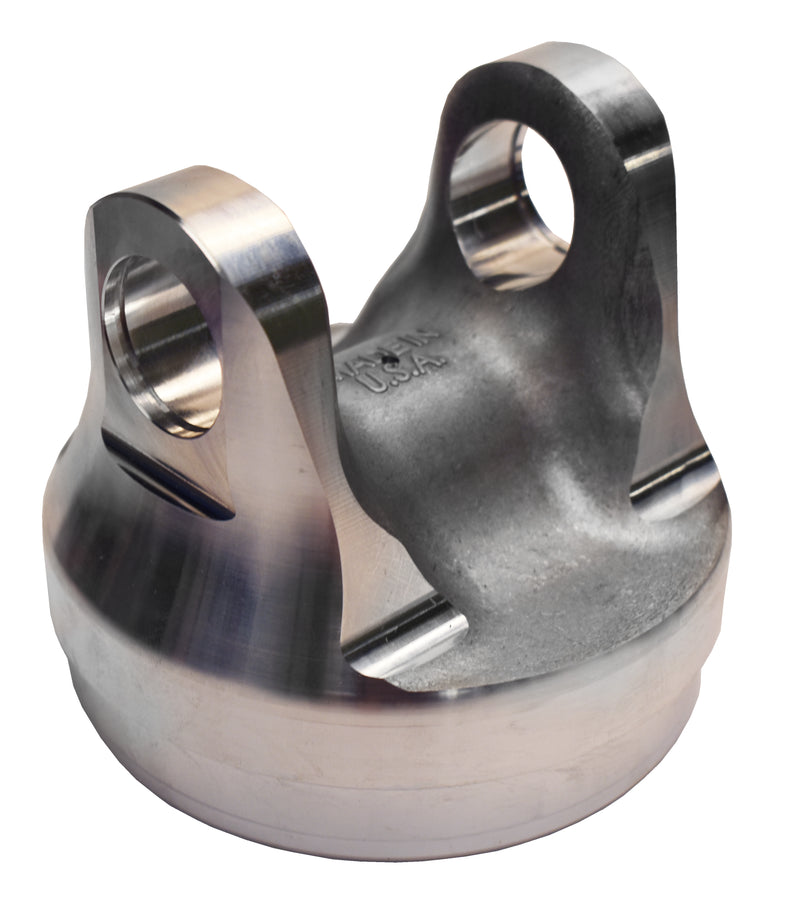

AMI 35-28-5012 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_35-28-5012
- Series: 1350
- Type: Outside Snap Ring
- Tube OD: 5.00" OD
- Material: Aluminum
- Series: 1350
- Type: Outside Snap Ring
- Tube OD: 5.00" OD
- Material: Aluminum

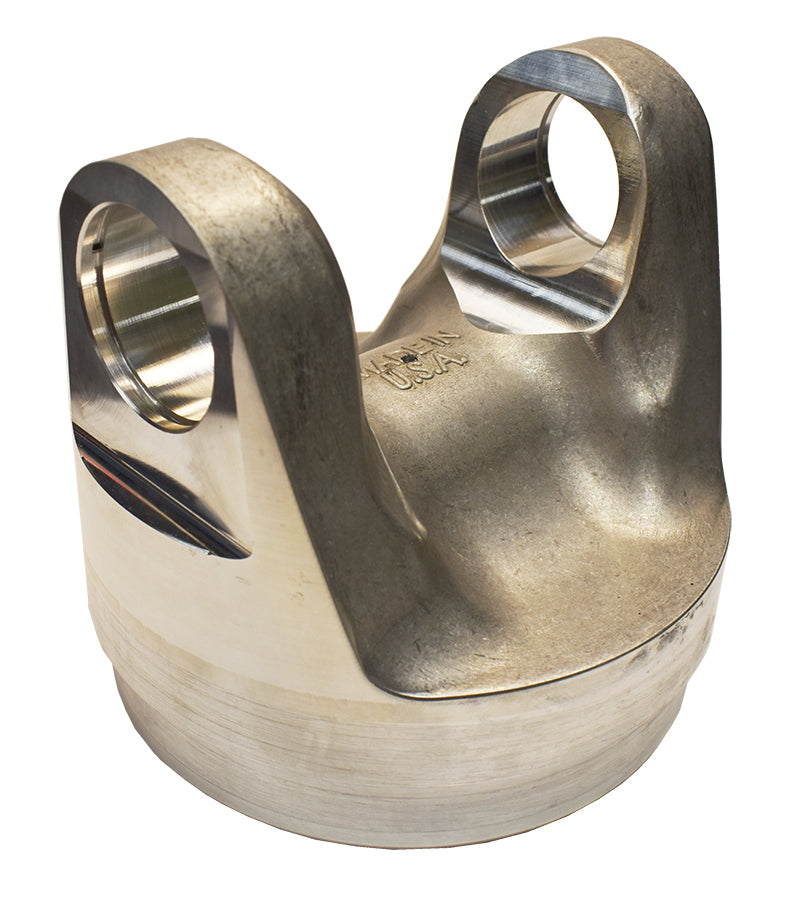

AMI 48-28-5012 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_48-28-5012
- Series: 1480
- Type: Outside Snap Ring
- Tube OD: 5.00" OD
- Material: Aluminum
- Series: 1480
- Type: Outside Snap Ring
- Tube OD: 5.00" OD
- Material: Aluminum
AMI 3-4-6561-1 End Yoke
End Yoke | AMI_3-4-6561-1
- Series: ∙ 1410
- Spline Count: 10
- Spline OD: 1.500"
- Bore Length: 2.000"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1410
- Spline Count: 10
- Spline OD: 1.500"
- Bore Length: 2.000"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 1.812"
- Style: Outside Snap Ring
- Rear Axle Type:
AMI 6-4-1981-1 End Yoke
End Yoke | AMI_6-4-1981-1
- Series: ∙ 1710
- Spline Count: 10
- Spline OD: 1.960"
- Bore Length: 3.00"
- Cap OD: 1.938"
- Yoke Span: 6.094"
- Hub Dia.: 2.812"
- Style: Half Round
Rear Axle Type:
- U-Joint Series: , 1710
- Spline Count: 10
- Spline OD: 1.960"
- Bore Length: 3.00"
- Cap OD: 1.938"
- Yoke Span: 6.094"
- Hub Dia.: 2.812"
- Style: Half Round
- Rear Axle Type:
AMI 6-3-2671KX Slip Yoke
Mid Shaft Slip Yoke | AMI_6-3-2671KX
- Series: 1710
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- U-joint: 1.938" X 6.094"
- Length: 9.594"
- Bearing Plate
- Series: 1710
- Spline Count: 16
- Spline Dia.: 2.500”
- U-joint: 1.938" X 6.094"
- Length: 9.594"
- Bearing Plate
AMI 3-28-537 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_3-28-537
- Series: 1480
- Type: Outside Snap Ring
- Tube OD: 3.50" OD
- Material: Steel
- Series: 1480
- Type: Outside Snap Ring
- Tube OD: 3.50" OD
- Material: Steel
AMI 2-4-533 PTO End Yoke
PTO End Yoke | AMI_2-4-533
- Series: 1310
- Round with Keyway
- Hub Diameter: 2.00"
- Cap OD: 1.06"
- Yoke Span: 3.219"
- Style: Outside Snap Ring
- Series: 1310
- Round with Keyway
- Hub Diameter: 2.00"
- Cap OD: 1.06"
- Yoke Span: 3.219"
- Style: Outside Snap Ring
AMI 2-2-479 Flange Yoke
Flange Yoke | AMI_2-2-479
- Series: 1310
- Pilot Dia.: 2.75" M
- Outside Snap Ring
- U-joint: 1.063" X 3.219"
- Bolt Circle: 3.750"
- Manufacturer: Action Machine Inc.
- Series: 1310
- Pilot Dia.: 2.75" M
- Outside Snap Ring
- Cap: 1.063" Width: 3.219"
- Bolt Circle: 3.750"
- Manufacturer: Action Machine Inc.
AMI 170-4-1271-1 End Yoke
End Yoke | AMI_170-4-1271-1
- Series: ∙ SPL 170
- Spline Count: 46
- Spline OD: 2.39”
- Bore Length: 2.750”
- Cap OD: 2.165”
- Yoke Span: 6.456"
- Hub Dia.: 2.879"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , SPL 170
- Spline Count: 46
- Spline OD: 2.39”
- Bore Length: 2.750”
- Cap OD: 2.165”
- Yoke Span: 6.456"
- Hub Dia.: 2.879"
- Style: Outside Snap Ring
- Rear Axle Type:
AMI 3-3-788KX Mid Slip Yoke
Mid Shaft Slip Yoke | AMI_3-3-788KX
- Series: 1410
- Spline Count: 16
- Spline Dia.: 1.375”
- Grease: Greasable
- U-joint: 1.188" X 4.188"
- Length: 4.438"
- Outside Snap Ring
- Series: 1410
- Spline Count: 16
- Spline Dia.: 1.375”
- U-joint: 1.188" X 4.188"
- Length: 4.438"
- Outside Snap Ring
