Yoke

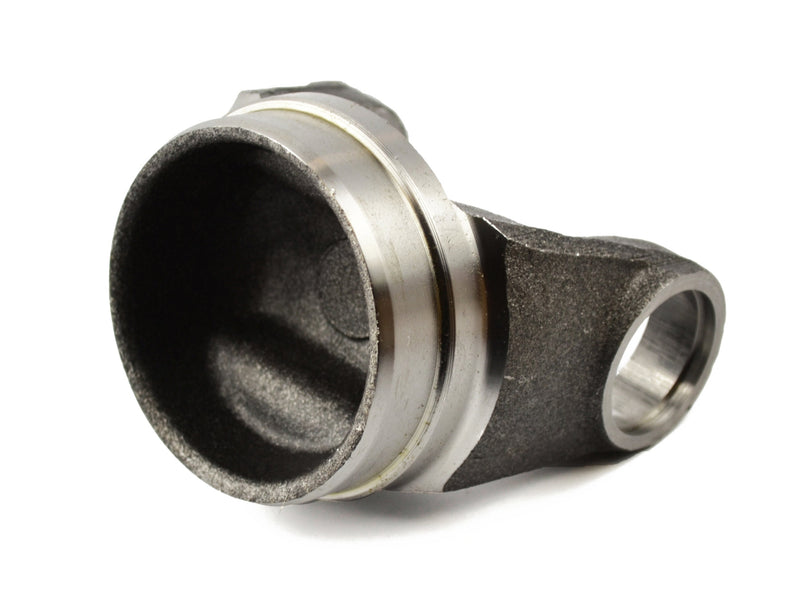

AMI 3-28-57 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_3-28-57
- Series: 1350
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Steel
- Series: 1350
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Steel
AMI 31-28-3512 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_31-28-3512
- Series: 1310
- Type: Outside Snap Ring
- Tube OD: 3.50" OD
- Material: Aluminum
- Series: 1310
- Type: Outside Snap Ring
- Tube OD: 3.50" OD
- Material: Aluminum
AMI 6-28-347 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_6-28-347
- Series: 1710
- Type: Plate
- Tube OD: 4.00" OD
- Material: Steel
- Series: 1710
- Type: Plate
- Tube OD: 4.00" OD
- Material: Steel
AMI 3-3-4271X Trans Slip Yoke
Slip Yoke | AMI_3-3-4271X
Transmission Applications: All manual and automatic transmission with 27 spline output shaftsa. Fits Transmission Models , 200-R4 , 4L60E , 4L65E , 4L75E , 700R4 , Auto Gear , Borg Warner , M-6 , M20 , M21 , M22 , Powerglide , Saginaw , T-10 , T-5 , T375 , T56 , TH-350 , Tremec , Turbo 350 Transfer Case: , NP231
- Series: 1350
- Spline: 27
- Barrel OD: 1.50"
- U-joint: 1.188" X 3.625"
- Length: 5.94"
- Outside Snap Ring
- Series: 1350
- Spline: 27
- Barrel OD: 1.50"
- U-joint: 1.188" X 3.625"
- Length: 5.94"
- Outside Snap Ring
AMI 2-4-503 PTO End Yoke
PTO End Yoke | AMI_2-4-503
- Series: 1310
- Round with Keyway
- Hub Diameter: 2.13"
- Cap OD: 1.06"
- Yoke Span: 3.22"
- Style: Outside Snap Ring
- Series: 1310
- Round with Keyway
- Hub Diameter: 2.13"
- Cap OD: 1.06"
- Yoke Span: 3.22"
- Style: Outside Snap Ring
AMI 41-28-4012 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_41-28-4012
- Series: 1410
- Type: Outside Snap Ring
- Tube OD: 4.00" OD
- Material: Aluminum
- Series: 1410
- Type: Outside Snap Ring
- Tube OD: 4.00" OD
- Material: Aluminum
AMI 3-2-479 Flange Yoke
Flange Yoke | AMI_3-2-479
- Series: 1480
- Pilot Dia.: 3.750" M
- Outside Snap Ring
- U-joint: 1.375" X 4.188"
- Bolt Circle: 4.750"
- Manufacturer: Action Machine Inc.
- Series: 1480
- Pilot Dia.: 3.750" M
- Outside Snap Ring
- Cap: 1.375" Width: 4.188"
- Bolt Circle: 4.750"
- Manufacturer: Action Machine Inc.
AMI 35-28-3012 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_35-28-3012
- Series: 1350
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Aluminum
- Series: 1350
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Aluminum
AMI 33-28-3012 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_33-28-3012
- Series: 1330
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Aluminum
- Series: 1330
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Aluminum
AMI 6-3-2651KX Slip Yoke
Mid Shaft Slip Yoke | AMI_6-3-2651KX
- Series: 1710
- Spline Count: 16
- Spline Dia.: 2.500”
- Grease: Greasable
- U-joint: 1.938" X 6.094"
- Length: 11.688"
- Bearing Plate
- Series: 1710
- Spline Count: 16
- Spline Dia.: 2.500”
- U-joint: 1.938" X 6.094"
- Length: 11.688"
- Bearing Plate
AMI 2-2-329 Flange Yoke
Flange Yoke | AMI_2-2-329
- Series: 1310
- Pilot Dia.: 2.375" M
- Outside Snap Ring
- U-joint: 1.063" X 3.219"
- Bolt Circle: 3.125"
- Manufacturer: Action Machine Inc.
- Series: 1310
- Pilot Dia.: 2.375" M
- Outside Snap Ring
- Cap: 1.063" Width: 3.219"
- Bolt Circle: 3.125"
- Manufacturer: Action Machine Inc.

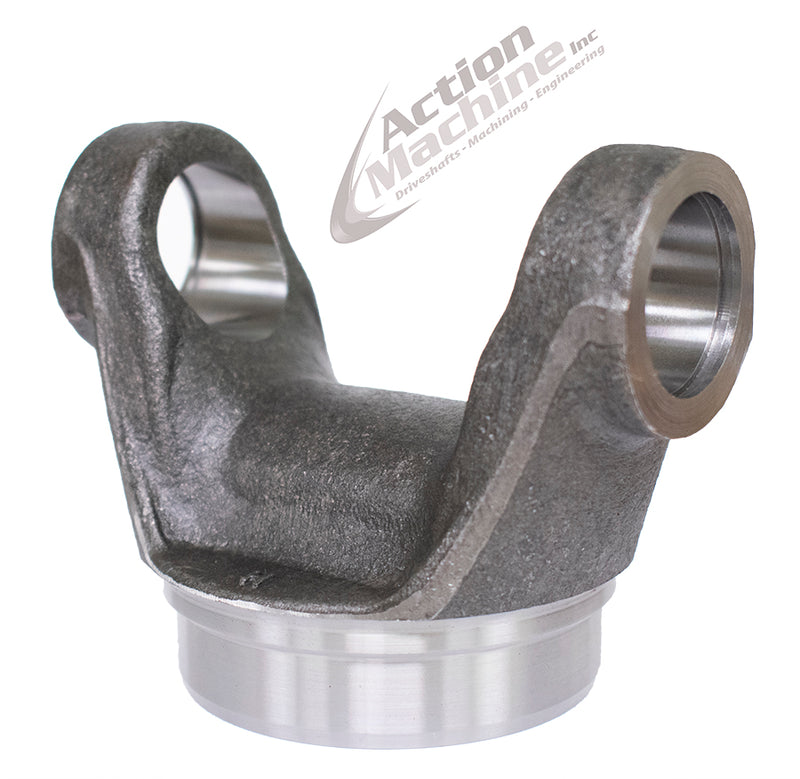

AMI 3-28-97 Weld Yoke / Tube Yoke
Tube Yoke (Weld Yoke) | AMI_3-28-97
- Series: 1410
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Steel
- Series: 1410
- Type: Outside Snap Ring
- Tube OD: 3.00" OD
- Material: Steel
