Spicer 2-3-10791X Transfer Case Slip Yoke (Obsolete)

Vendor: Spicer/Dana, Sku: 2-3-10791X

Previous Product | Next Product

Product Description

Transmission/Transfer Case Applications:

Transfer Case Applications: Fits various 32 spline transfer cases including: , 4L80E Long Tail , 6L50 , 6L80E , TH-400 Long Tail Transfer Case: , 241C , NP205 , NP208 , NP241 , NP243 , NP246 , NP261 , NP263

Spicer/Dana Drive Shaft Transfer Case Slip Yoke

Product Specs
Description
Diagrams

Transfer Case Applications:

Fits various 32 spline transfer cases including New Process NP205, NP208, NP241, NP243, NP246, NP261, NP263 and more.

Series:	1330
U-Joint Lock Up (B):	3.625 Inch
Bearing Cap Diameter (A):	1.062 Inch
Vehicle Make:	Dodge
Center Line to End of Spline (C):	7.940 Inch
Spline Outside Diameter (E):	1.378 Inch
Hub Diameter (D):	1.885 Inch
*Number of Spline (F):**	32 (31 with blind spot - see note below*)
Spline Type:	Counter Bore Depth 0.220 Inch Counter Bore Diameter 1.410 Inch
Style:	Outside Snap Ring
Material:	Steel

VMRS: 024002038

* The slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

SPICER DRIVE SHAFT TRANSMISSION SLIP YOKE

Genuine Spicer/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.

outside snap ring slip yoke Driveshaft Slip Yoke Diagram Spline Count

Alternate Part Option:
PTI 3303-321 Trans Slip Yoke (Length: 7.250 Inch / no counter bore)

Sku: 2-3-10791X

Vendor: Spicer/Dana

$304.60

Maximum quantity available reached.

Related Products

Spicer 2-3-10391X Trans Slip Yoke

$998.21

{"id":4928514195591,"title":"Spicer 2-3-10391X Trans Slip Yoke","handle":"2-3-10391x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp class=\"p1\"\u003eThis part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003cbr\u003e\u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003e\u003cspan class=\"s1\"\u003eCHAT\u003c\/span\u003e\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e\u003cspan class=\"s1\"\u003e(574)287-9650\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ca href=\"tel:(574)287-9650\"\u003e\u003c\/a\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 27 spline, Jeep Cherokees\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e6.000 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.495 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.176 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e27 \u003cem\u003e(26 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eVehicle\u003c\/b\u003e\u003cstrong\u003e Make:\u003c\/strong\u003e\u003cbr\u003eJeep, Cherokee: 1997-2001 RWD; 4.0;L; 6; Automatic; with Dana 1310 Series \u003cbr\u003eJeep, Cherokee: 1995, RWD; 4.0;L ;6; with Dana 1310 Series\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e","published_at":"2020-04-24T13:44:01-04:00","created_at":"2020-04-24T13:44:01-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["2314311X","4L60E","700R4","Application_Transmission Applications: Fits various 27 spline transmissions including:","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","Length_6.00\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1310","Spline Diameter_1.17\"","Spline_27","TH350","Transmission Model_200-R4","Transmission Model_4L60E","Transmission Model_700R4","Transmission Model_M21","Transmission Model_Powerglide","Transmission Model_T-5","Transmission Model_T-56","Transmission Model_TH-350","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Jeep","Yoke_Transmission Slip Yoke"],"price":99821,"price_min":99821,"price_max":99821,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":33922816245895,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-10391X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-10391X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":99821,"weight":907,"compare_at_price":null,"inventory_quantity":6,"inventory_management":null,"inventory_policy":"deny","barcode":"23913231514","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Top_2237.png?v=1587750303"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731","options":["Title"],"media":[{"alt":null,"id":8497999741063,"position":1,"preview_image":{"aspect_ratio":0.678,"height":363,"width":246,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731"},"aspect_ratio":0.678,"height":363,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Front_2236.png?v=1642704731","width":246},{"alt":null,"id":8497999773831,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Top_2237.png?v=1587750303"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-10391X_Top_2237.png?v=1587750303","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp class=\"p1\"\u003eThis part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003cbr\u003e\u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003e\u003cspan class=\"s1\"\u003eCHAT\u003c\/span\u003e\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e\u003cspan class=\"s1\"\u003e(574)287-9650\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ca href=\"tel:(574)287-9650\"\u003e\u003c\/a\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 27 spline, Jeep Cherokees\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e U-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e6.000 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.495 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.176 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e27 \u003cem\u003e(26 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cb\u003eVehicle\u003c\/b\u003e\u003cstrong\u003e Make:\u003c\/strong\u003e\u003cbr\u003eJeep, Cherokee: 1997-2001 RWD; 4.0;L; 6; Automatic; with Dana 1310 Series \u003cbr\u003eJeep, Cherokee: 1995, RWD; 4.0;L ;6; with Dana 1310 Series\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e"}

Spicer 2-3-10391X Trans Slip Yoke

$998.21

Spicer/Dana Drive Shaft Transmission Slip Yoke This part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650 Product Specs De...

Spicer 2-3-8431x Trans Slip Yoke

$859.93

{"id":1227055333428,"title":"Spicer 2-3-8431x Trans Slip Yoke","handle":"2-3-8431x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke \u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003e(Center Line to End of Spline)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e6.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e25 \u003cem\u003e(24 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eFord\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3103-251?variant=13568955383860\" title=\"PTI 3103-251 Trans Slip Yoke\"\u003e3103-251\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e","published_at":"2017-05-17T14:27:52-04:00","created_at":"2018-08-31T13:37:12-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["238431x","A4LD","Application_Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models","Barrel OD_1.37\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C-3","C3","Length_6.50\"","Lock Up_3.219\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1310","Spline Diameter_1.11\"","Spline_25","Transmission Make_Ford","Transmission Model_5R55E","Transmission Model_A4LD","Transmission Model_C3","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":85993,"price_min":85993,"price_max":85993,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":9492347813940,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-8431x","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-8431x Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":85993,"weight":1134,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"23913231859","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528.png?v=1535738563","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Top_13998.png?v=1535738565"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434","options":["Title"],"media":[{"alt":null,"id":2611742539911,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Back_12527.png?v=1642702434","width":600},{"alt":null,"id":2611742572679,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528.png?v=1535738563"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528.png?v=1535738563","width":600},{"alt":null,"id":2611742605447,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Top_13998.png?v=1535738565"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Top_13998.png?v=1535738565","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke \u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.219 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003e(Center Line to End of Spline)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e6.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e25 \u003cem\u003e(24 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eFord\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3103-251?variant=13568955383860\" title=\"PTI 3103-251 Trans Slip Yoke\"\u003e3103-251\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e"}

Spicer 2-3-8431x Trans Slip Yoke

$859.93

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. Series: 1310 Style: Outside Snap Ring U-Joint Cap Diameter (A): 1.063 Inch...

Sold Out

Spicer 2-3-1331X Trans Slip Yoke (Obsolete)

$759.93

{"id":8702420997,"title":"Spicer 2-3-1331X Trans Slip Yoke (Obsolete)","handle":"2-3-1331x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e \n\u003cli data-tab=\"tab-4\"\u003eVehicle\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 16 spline transmissions Powerglide in the early Chevrolet passenger cars.\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n4.875 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.172 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n16 \u003cem\u003e(see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM - Fits older 16 spline Powerglide transmissions from 1955 to 1964.\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\" alt=\"\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e \u003cdiv class=\"shopify-tab-content\" id=\"tab-4\"\u003e\u003cp\u003eFits 16 spline Powerglide transmissions from years: 1955-1964\u003cbr\u003e1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964.\u003c\/p\u003e\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Instock Part:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca title=\"PTI 3103-163 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3103-163?variant=40910160593047\"\u003e3103-163\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e","published_at":"2017-08-02T14:34:04-04:00","created_at":"2017-08-02T14:34:04-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["231331X","3103-163","Application_Transmission Applications: Fits older 16 spline Powerglide transmissions from 1955 to 1964. Fits Transmission Applications:","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","Length_4.88\"","Lock Up_3.219\"","Obsolete","Part_Transmission Slip Yoke","Part_Yoke","Powerglide","Series_1310","Spline Diameter_1.17\"","Spline_16","Transmission Make_GM","Transmission Model_Powerglide","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transmission Slip Yoke"],"price":75993,"price_min":75993,"price_max":75993,"available":false,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38130384901,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-1331X","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Spicer 2-3-1331X Trans Slip Yoke (Obsolete)","public_title":null,"options":["Default Title"],"price":75993,"weight":789,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"023913235796","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222","options":["Title"],"media":[{"alt":null,"id":2392371232903,"position":1,"preview_image":{"aspect_ratio":1.493,"height":1591,"width":2376,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222"},"aspect_ratio":1.493,"height":1591,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-1331X.b.jpg?v=1707236222","width":2376}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e \n\u003cli data-tab=\"tab-4\"\u003eVehicle\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission \u0026amp; Transfer Case Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits various 16 spline transmissions Powerglide in the early Chevrolet passenger cars.\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.063 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.219 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n4.875 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.172 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n16 \u003cem\u003e(see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM - Fits older 16 spline Powerglide transmissions from 1955 to 1964.\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eThis is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.\u003c\/p\u003e\n\u003cp\u003eDana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\" alt=\"\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e \u003cdiv class=\"shopify-tab-content\" id=\"tab-4\"\u003e\u003cp\u003eFits 16 spline Powerglide transmissions from years: 1955-1964\u003cbr\u003e1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964.\u003c\/p\u003e\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Instock Part:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca title=\"PTI 3103-163 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3103-163?variant=40910160593047\"\u003e3103-163\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e"}

Spicer 2-3-1331X Trans Slip Yoke (Obsolete)

$759.93

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Vehicle Transmission & Transfer Case Applications: Fits various 16 spline transmissions Powerglide in the early Chevrolet passenger cars. Series: 1310 Style: Outside Snap Ring U-Joint Cap Diameter (A): 1.063 Inch U-Joint Width (B):...

Spicer 2-3-13721X Trans Slip Yoke

$562.32

{"id":8702420293,"title":"Spicer 2-3-13721X Trans Slip Yoke","handle":"2-3-13721x","description":"\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e This part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\" style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e\u003cspan class=\"s1\"\u003eCHAT\u003c\/span\u003e\u003c\/a\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e | \u003c\/span\u003e\u003ca href=\"tel:(574)287-9650\" style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e\u003cspan class=\"s1\"\u003e(574)287-9650\u003c\/span\u003e\u003c\/a\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpecifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e6.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.374 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e25 (24 with blind spot - see note below*)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca title=\"PTI 3303-251 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3303-251?variant=42692170252515\"\u003e3303-251\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e\u003c\/p\u003e","published_at":"2020-11-20T09:27:36-05:00","created_at":"2017-08-02T14:34:02-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["2-3-15461X","2313721X","2315461X","A4LD","Application_Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models","Barrel OD_1.37\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C-3","C3","Length_6.86\"","Lock Up_3.625\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1330","Spline Diameter_1.11\"","Spline_25","Transmission Make_Ford","Transmission Model_5R55E","Transmission Model_A4LD","Transmission Model_C3","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":56232,"price_min":56232,"price_max":56232,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38130382597,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-13721X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-13721X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":56232,"weight":1070,"compare_at_price":null,"inventory_quantity":2,"inventory_management":null,"inventory_policy":"deny","barcode":"23913232986","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X_Top_2279.png?v=1605880175"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953","options":["Title"],"media":[{"alt":null,"id":2392372019335,"position":1,"preview_image":{"aspect_ratio":0.642,"height":2279,"width":1464,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953"},"aspect_ratio":0.642,"height":2279,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X.b.jpg?v=1696270953","width":1464},{"alt":null,"id":15958737649815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X_Top_2279.png?v=1605880175"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13721X_Top_2279.png?v=1605880175","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e This part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\" style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e\u003cspan class=\"s1\"\u003eCHAT\u003c\/span\u003e\u003c\/a\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e | \u003c\/span\u003e\u003ca href=\"tel:(574)287-9650\" style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e\u003cspan class=\"s1\"\u003e(574)287-9650\u003c\/span\u003e\u003c\/a\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli class=\"current\" data-tab=\"tab-1\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv id=\"tab-1\" class=\"shopify-tab-content current\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpecifications\u003c\/strong\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003e Slip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e6.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Barrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.374 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Number Of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e25 (24 with blind spot - see note below*)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Spline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Material:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-2\" class=\"shopify-tab-content\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tab-3\" class=\"shopify-tab-content\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca title=\"PTI 3303-251 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/3303-251?variant=42692170252515\"\u003e3303-251\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e\u003c\/p\u003e"}

Spicer 2-3-13721X Trans Slip Yoke

$562.32

This part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650 Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Desc...

Spicer 2-3-13691X Trans Slip Yoke

$472.37

{"id":6389031665815,"title":"Spicer 2-3-13691X Trans Slip Yoke","handle":"2-3-13691x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp class=\"p1\"\u003eThis part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003e\u003cspan class=\"s1\"\u003eCHAT\u003c\/span\u003e\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e\u003cspan class=\"s1\"\u003e(574)287-9650\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e7.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.497 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.220 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e28 \u003cem\u003e(27 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Option:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke\u003c\/p\u003e","published_at":"2021-01-26T14:07:34-05:00","created_at":"2021-01-26T13:57:41-05:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["235981X","AOD","AOD-E","AODE","Application_Transmission Applications: Fits various 28 spline transmission output shafts. Fits Transmission Models","Barrel OD_1.50\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C4","Length_7.86\"","Lock Up_3.625\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1330","Spline Diameter_1.22\"","Spline_28","T-10","T-5","T10","T5","Top Loader","Toploader","TR-3550","TR3550","Transmission Make_Ford","Transmission Model_AOD","Transmission Model_AOD-E","Transmission Model_C4","Transmission Model_T-10","Transmission Model_T-5","Transmission Model_Toploader","Transmission Model_TR3550","Transmission Model_Tremec","Transmission Slip Assembly","Tremec","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":47237,"price_min":47237,"price_max":47237,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":38917779095703,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-13691X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-13691X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":47237,"weight":1043,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"23913233204","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Top_11808.png?v=1611687487"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487","options":["Title"],"media":[{"alt":null,"id":19286915743895,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Front_11809.png?v=1611687487","width":600},{"alt":null,"id":19286915776663,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Top_11808.png?v=1611687487"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-13691X_Top_11808.png?v=1611687487","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp class=\"p1\"\u003eThis part is drop shipped from the manufacturer and is non-returnable. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. \u003ca href=\"https:\/\/m.me\/126080680780625?ref=messenger_commerce_1163199097047119_https:\/\/actionmachineinc.myshopify.com\/collections\/step-2-slip-yokes?_sc=1\u0026amp;design_theme_id=169352453\u0026amp;frame_token=M_N5SwVtMVwJVnoWROpsibpht2k2_W8cadlvVAJ0kej_vX_Kn1ZeTiXa9q1gt0_QsQQBNTSagPD0jTIUAGNvWcgHdpxZLlBDrXx0QjFkCDdGrNxRamwV7l-GVSbjpuuoiaDEFMvvgL5EMsWwP1LiKA%3D%3D\"\u003e\u003cspan class=\"s1\"\u003eCHAT\u003c\/span\u003e\u003c\/a\u003e | \u003ca href=\"tel:(574)287-9650\"\u003e\u003cspan class=\"s1\"\u003e(574)287-9650\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD, C4, T-5, T-10, Top Loader, Tremec Tr3550, and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e7.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.497 Inch\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.220 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e28 \u003cem\u003e(27 with blind spot - see note below*)\u003c\/em\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFord\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Option:\u003c\/strong\u003e\u003cbr\u003ePTI \u003ca title=\"PTI 3303-283 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/3303-283?variant=42299046527203\"\u003e3303-283\u003c\/a\u003e Slip Yoke\u003c\/p\u003e"}

Spicer 2-3-13691X Trans Slip Yoke

$472.37

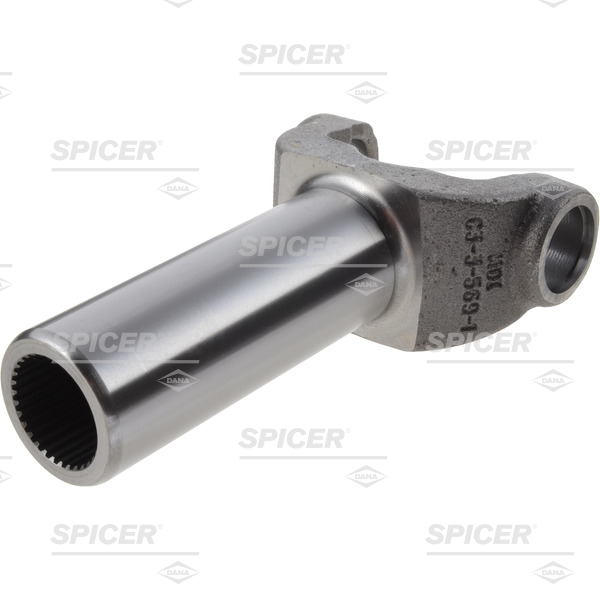

Spicer 3-3-6321x Trans Slip Yoke

$378.09

{"id":3739128528948,"title":"Spicer 3-3-6321x Trans Slip Yoke","handle":"3-3-6321x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFits various 32 spline transmission including Turbo 400 (TH400) with the long tail shaft, 4L80E long tail, 6L50, 6L80E \u0026amp; fits GM transfer cases241C, NP205, NP208, NP241, NP241C, NP243, NP246, NP261, NP263 and more.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1410\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutside U-joint Dimensions (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.940 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Outside Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.378 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.885 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 (*31 plus one blind spot)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e* The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis is a fully splined slip yoke, if you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Transmission Slip yoke with and without counter bore\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca title=\"PTI 4103-327 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/4103-327?variant=39017398960279\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/products\/4103-327?variant=39017398960279\"\u003e4103-327\u003c\/a\u003e Trans Slip Yoke \u003cbr\u003eAAM \u003ca title=\"AAM 26064292 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/26064292?variant=33338328547463\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/products\/26064292?variant=33338328547463\"\u003e26064292\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e","published_at":"2019-07-03T10:30:35-04:00","created_at":"2019-07-03T10:30:35-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["12479385","22944358","241DLD","336321x","40021530","6L80-E","6L80E","Application_Applications: Fits various GM 32 spline output shaft transmissions and transfer cases. Fits Transmission Applications","Barrel OD_1.89\"","Bearing Cap Diameter_1.188\"","Brand_Spicer","Length_6.94\"","Lock Up_4.188\"","NP241","NP241C","NP246","NP263","NP263HD","NP421C","Part_Transmission Slip Yoke","Part_Yoke","Series_1410","Spline Diameter_1.38\"","Spline_32","Transfer Case Slip Assembly","Transfer Case_241C","Transfer Case_241DLD","Transfer Case_NP241","Transfer Case_NP241C","Transfer Case_NP246","Transfer Case_NP261HD","Transfer Case_NP263HD","Transmission Make_Chrysler","Transmission Make_Dodge","Transmission Make_GM","Transmission Model_4L80E Long Tail","Transmission Model_6L50","Transmission Model_6L80E","Transmission Model_TH-400 Long Tail","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transfer Case Slip Yoke","Yoke_Transmission Slip Yoke"],"price":37809,"price_min":37809,"price_max":37809,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":28894858215476,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"3-3-6321x","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 3-3-6321x Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":37809,"weight":1860,"compare_at_price":null,"inventory_quantity":-10,"inventory_management":null,"inventory_policy":"deny","barcode":"23913233655","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Back_12672.png?v=1562164387","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Top_12671.png?v=1562164389","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Front_12673.png?v=1562164391"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Back_12672.png?v=1562164387","options":["Title"],"media":[{"alt":null,"id":3016069513351,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Back_12672.png?v=1562164387"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Back_12672.png?v=1562164387","width":600},{"alt":null,"id":3016069546119,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Top_12671.png?v=1562164389"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Top_12671.png?v=1562164389","width":600},{"alt":null,"id":3016069578887,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Front_12673.png?v=1562164391"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/3-3-6321X_Front_12673.png?v=1562164391","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFits various 32 spline transmission including Turbo 400 (TH400) with the long tail shaft, 4L80E long tail, 6L50, 6L80E \u0026amp; fits GM transfer cases241C, NP205, NP208, NP241, NP241C, NP243, NP246, NP261, NP263 and more.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1410\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutside U-joint Dimensions (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.940 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Outside Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.378 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.885 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Splines (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 (*31 plus one blind spot)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e* The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eThis is a fully splined slip yoke, if you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Transmission Slip yoke with and without counter bore\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cp\u003e\u003cbr\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003ePTI \u003ca title=\"PTI 4103-327 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/4103-327?variant=39017398960279\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/products\/4103-327?variant=39017398960279\"\u003e4103-327\u003c\/a\u003e Trans Slip Yoke \u003cbr\u003eAAM \u003ca title=\"AAM 26064292 Trans Slip Yoke\" href=\"https:\/\/www.actionmachineinc.com\/products\/26064292?variant=33338328547463\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/products\/26064292?variant=33338328547463\"\u003e26064292\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e"}

Spicer 3-3-6321x Trans Slip Yoke

$378.09

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 32 spline transmission including Turbo 400 (TH400) with the long tail shaft, 4L80E long tail, 6L50, 6L80E & fits GM transfer cases241C, NP205, NP208, NP241, NP241C, NP243, NP246, NP261, NP26...

Sonnax T3-3-2431CBH Trans Slip Yoke

$339.72

{"id":4384877904007,"title":"Sonnax T3-3-2431CBH Trans Slip Yoke","handle":"t3-3-2431cbh","description":"\u003ch2\u003eSonnax Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits the GM transmissions with 32 spline output shaft Turbo 400, TH-400, Super T-10, Richmond, M22, M21, M20, Jericho, 4L85E, 4L80E and confirm dimensions for transfer cases fitment. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\n\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.188 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cb\u003eU-Joint Width (B):\u003c\/b\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5.500 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOverall Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.370 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.800 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub \/ Seal \/ Journal Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.888 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.378 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCounter Bore\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003eForged 4340 Chromoly\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Transmission Slip yoke with and without counter bore\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eSlip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.\u003c\/p\u003e\n\u003cp\u003eSonnax performance roller bearing slip yoke T3-3-2431CBH is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eForged 4340 chromoly\u003c\/li\u003e\n\u003cli\u003eThrough-hardened, tempered barrel\u003c\/li\u003e\n\u003cli\u003eUnique Sonnax design increases strength in critical areas\u003c\/li\u003e\n\u003cli\u003eUse with single- or double-roller bearings\u003c\/li\u003e\n\u003cli\u003e100% leak tested to 40 psi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch1\u003eSonnax Performance Slip Yokes\u003c\/h1\u003e\n\u003ch2\u003eQuality \u0026amp; Engineering You Can Trust\u003c\/h2\u003e\n\u003cp\u003eA Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFully machined from billet steel for enhanced strength \u0026amp; durability\u003c\/li\u003e\n\u003cli\u003eLeak-free plug tested to 40 psi for optimum sealing\u003c\/li\u003e\n\u003cli\u003e1330 \u0026amp; 1350 Series yokes are chromoly steel\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e","published_at":"2019-12-02T13:40:13-05:00","created_at":"2019-12-02T13:40:13-05:00","vendor":"Sonnax","type":"Slip Yoke","tags":["4L80","4L80-E","4L80E","4L85","Application_Transmission Applications: For roller bearing tail housing. Fits Transmission Applications","Barrel OD_1.89\"","Bearing Cap Diameter_1.188\"","Brand_Sonnax","Length_5.50\"","Lock Up_3.625\"","M-20","M20","M21","M22","Part_Transmission Slip Yoke","Part_Yoke","Series_1350","Spline Diameter_1.38\"","Spline_32","T-10","T10","T332431CBH","TH-400","Transmission Model_4L80E","Transmission Model_4L85E","Transmission Model_M20","Transmission Model_M21","Transmission Model_M22","Transmission Model_T-10","Transmission Model_TH-400","Transmission Model_Turbo 400","Transmission Slip Assembly","Turbo 400","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transmission Slip Yoke"],"price":33972,"price_min":33972,"price_max":33972,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31295160352903,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"T3-3-2431CBH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sonnax T3-3-2431CBH Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":33972,"weight":1270,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083","options":["Title"],"media":[{"alt":null,"id":5795125493895,"position":1,"preview_image":{"aspect_ratio":1.293,"height":580,"width":750,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083"},"aspect_ratio":1.293,"height":580,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-2431CBH.jpg?v=1575312083","width":750}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSonnax Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits the GM transmissions with 32 spline output shaft Turbo 400, TH-400, Super T-10, Richmond, M22, M21, M20, Jericho, 4L85E, 4L80E and confirm dimensions for transfer cases fitment. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\n\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.188 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cb\u003eU-Joint Width (B):\u003c\/b\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5.500 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOverall Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.370 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.800 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub \/ Seal \/ Journal Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.888 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.378 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCounter Bore\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003eForged 4340 Chromoly\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a 5.5” short barrel counter bored slip yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Transmission Slip yoke with and without counter bore\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eSlip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.\u003c\/p\u003e\n\u003cp\u003eSonnax performance roller bearing slip yoke T3-3-2431CBH is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eForged 4340 chromoly\u003c\/li\u003e\n\u003cli\u003eThrough-hardened, tempered barrel\u003c\/li\u003e\n\u003cli\u003eUnique Sonnax design increases strength in critical areas\u003c\/li\u003e\n\u003cli\u003eUse with single- or double-roller bearings\u003c\/li\u003e\n\u003cli\u003e100% leak tested to 40 psi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch1\u003eSonnax Performance Slip Yokes\u003c\/h1\u003e\n\u003ch2\u003eQuality \u0026amp; Engineering You Can Trust\u003c\/h2\u003e\n\u003cp\u003eA Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFully machined from billet steel for enhanced strength \u0026amp; durability\u003c\/li\u003e\n\u003cli\u003eLeak-free plug tested to 40 psi for optimum sealing\u003c\/li\u003e\n\u003cli\u003e1330 \u0026amp; 1350 Series yokes are chromoly steel\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e"}

Sonnax T3-3-2431CBH Trans Slip Yoke

$339.72

Sonnax Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission Applications: Fits the GM transmissions with 32 spline output shaft Turbo 400, TH-400, Super T-10, Richmond, M22, M21, M20, Jericho, 4L85E, 4L80E and confirm dimensions for transfer cases fitment. Series: 1350 Bearing Cap Diameter...

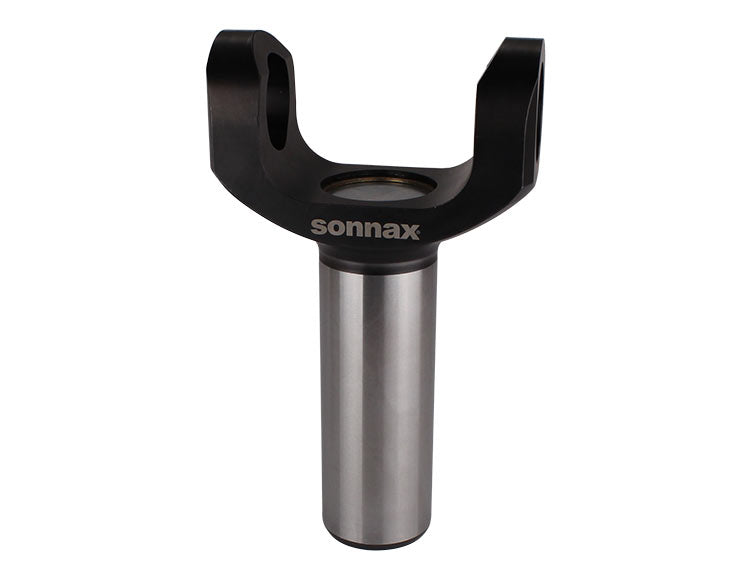

Sonnax T3-3-6081H Trans Slip Yoke

$339.72

{"id":450965602341,"title":"Sonnax T3-3-6081H Trans Slip Yoke","handle":"t3-3-6081h","description":"\u003ch2\u003eSonnax Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\nFor roller bearing tail housing; Powerglide, TH350, TH350C; Muncie M20, M21 \u0026amp; M22 with 27-tooth spline; Saginaw 3- \u0026amp; 4-speed\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eOutside Yoke Dimension \/ \u003c\/strong\u003e\u003cstrong\u003eU-Joint Lock Up (B):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5.810 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax overall Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.680 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.890 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub \/ Seal \/ Journal Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F):*\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e27\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.176 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003eForged 4340 Chromoly\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eSlip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.\u003c\/p\u003e\n\u003cp\u003eSonnax performance slip yoke T3-3-6081H is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eForged 4340 chromoly\u003c\/li\u003e\n\u003cli\u003eThrough-hardened, tempered barrel\u003c\/li\u003e\n\u003cli\u003eUnique Sonnax design increases strength in critical areas\u003c\/li\u003e\n\u003cli\u003eUse with single- or double-roller bearings\u003c\/li\u003e\n\u003cli\u003e100% leak tested to 40 psi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch1\u003eSonnax Performance Slip Yokes\u003c\/h1\u003e\n\u003ch2\u003eQuality \u0026amp; Engineering You Can Trust\u003c\/h2\u003e\n\u003cp\u003eA Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFully machined from billet steel for enhanced strength \u0026amp; durability\u003c\/li\u003e\n\u003cli\u003eLeak-free plug tested to 40 psi for optimum sealing\u003c\/li\u003e\n\u003cli\u003e1330 \u0026amp; 1350 Series yokes are chromoly steel\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n","published_at":"2017-05-30T08:16:02-04:00","created_at":"2018-01-08T13:58:54-05:00","vendor":"Sonnax","type":"Slip Yoke","tags":["350C","Application_Transmission Applications: Fits 27 spline Transmissions. Fits Transmission Applications","Barrel OD_1.50\"","Bearing Cap Diameter_1.188\"","Brand_Sonnax","Length_5.81\"","Lock Up_3.625\"","M-20","M20","M21","M22","Part_Transmission Slip Yoke","Part_Yoke","Powerglide","Saginaw","Series_1350","Spline Diameter_1.17\"","Spline_27","T3-3-6081H","T336081H","Transmission Make_GM","Transmission Model_M20","Transmission Model_M21","Transmission Model_M22","Transmission Model_Powerglide","Transmission Model_Saginaw","Transmission Model_TH-350","Transmission Model_TH-350C","Transmission Slip Assembly","Transmission Slip Yoke_GM","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transmission Slip Yoke"],"price":33972,"price_min":33972,"price_max":33972,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":5131669209125,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"T3-3-6081H","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sonnax T3-3-6081H Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":33972,"weight":998,"compare_at_price":null,"inventory_quantity":-5,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-6081H.jpg?v=1531765255"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-6081H.jpg?v=1531765255","options":["Title"],"media":[{"alt":null,"id":2609075060871,"position":1,"preview_image":{"aspect_ratio":1.293,"height":580,"width":750,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-6081H.jpg?v=1531765255"},"aspect_ratio":1.293,"height":580,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/T3-3-6081H.jpg?v=1531765255","width":750}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSonnax Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Applications: \u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\nFor roller bearing tail housing; Powerglide, TH350, TH350C; Muncie M20, M21 \u0026amp; M22 with 27-tooth spline; Saginaw 3- \u0026amp; 4-speed\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eOutside Yoke Dimension \/ \u003c\/strong\u003e\u003cstrong\u003eU-Joint Lock Up (B):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5.810 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax overall Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.680 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Length:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.890 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub \/ Seal \/ Journal Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.500 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F):*\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e27\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.176 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cdiv\u003eForged 4340 Chromoly\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003cp\u003eSlip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.\u003c\/p\u003e\n\u003cp\u003eSonnax performance slip yoke T3-3-6081H is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eForged 4340 chromoly\u003c\/li\u003e\n\u003cli\u003eThrough-hardened, tempered barrel\u003c\/li\u003e\n\u003cli\u003eUnique Sonnax design increases strength in critical areas\u003c\/li\u003e\n\u003cli\u003eUse with single- or double-roller bearings\u003c\/li\u003e\n\u003cli\u003e100% leak tested to 40 psi\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch1\u003eSonnax Performance Slip Yokes\u003c\/h1\u003e\n\u003ch2\u003eQuality \u0026amp; Engineering You Can Trust\u003c\/h2\u003e\n\u003cp\u003eA Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFully machined from billet steel for enhanced strength \u0026amp; durability\u003c\/li\u003e\n\u003cli\u003eLeak-free plug tested to 40 psi for optimum sealing\u003c\/li\u003e\n\u003cli\u003e1330 \u0026amp; 1350 Series yokes are chromoly steel\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\" alt=\"outside snap ring slip yoke\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n"}

Sonnax T3-3-6081H Trans Slip Yoke

$339.72

Sonnax Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission Applications: For roller bearing tail housing; Powerglide, TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed Series: 1350 Outside Yoke Dimension / U-Joint Lock Up (B): 3.625 Inch Bearing Cap Dia...

PTI 5503-367 Trans Slip Yoke

$330.53

{"id":7496600682723,"title":"PTI 5503-367 Trans Slip Yoke","handle":"5503-367","description":"\u003ch2\u003ePTI Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n \u003cbr\u003e\n\u003c\/div\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits 2006+ Dodge Ram 3500 Rear 2pc \/ SNAP ON SEAL\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1550 (1555)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Lock Up (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.969 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDodge\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 7.441 Inch (189.00 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cstrong\u003eSpline Outside Diameter (E):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.547 Inch (39.3 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 36 \u003cem\u003e(34 with blind spots - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2.071 Inch (52.60 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003ePowertrain Industries Driveshaft Slip Yoke\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\n\u003cbr\u003e\n\u003cp\u003e\u003cb\u003eCompatible\u003c\/b\u003e\u003cstrong\u003e Parts:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\" title=\"PTI 4818-367 Boot Kit\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\"\u003e4818-367\u003c\/a\u003e Boot and Clamp Kit\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003eAAM \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\" title=\"AAM 40038044 Trans Slip Yoke\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\"\u003e40038044\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n","published_at":"2021-12-20T08:41:40-05:00","created_at":"2021-12-20T08:41:40-05:00","vendor":"PTI","type":"Slip Yoke","tags":["Application_Dodge 36 Spline 1555 Series Fits Transmission Models","Barrel OD_2.07\"","Bearing Cap Diameter_1.375\"","Brand_PTI","Length_7.44\"","Lock Up_4.969\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1550","Spline Diameter_1.55\"","Spline_36","Transfer Case Slip Assembly","Transmission Make_Dodge","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Dodge","Yoke_Transmission Slip Yoke"],"price":33053,"price_min":33053,"price_max":33053,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42243108929763,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"5503-367","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PTI 5503-367 Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":33053,"weight":3629,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935318.2218.-PTIWM.jpg?v=1640007751","\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935314.4234.-PTIWM.jpg?v=1640007746"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894","options":["Title"],"media":[{"alt":null,"id":28921439387875,"position":1,"preview_image":{"aspect_ratio":0.774,"height":500,"width":387,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894"},"aspect_ratio":0.774,"height":500,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935310.3891.-PTIWM.jpg?v=1640007894","width":387},{"alt":null,"id":28921439355107,"position":2,"preview_image":{"aspect_ratio":1.042,"height":480,"width":500,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935318.2218.-PTIWM.jpg?v=1640007751"},"aspect_ratio":1.042,"height":480,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935318.2218.-PTIWM.jpg?v=1640007751","width":500},{"alt":null,"id":28921439420643,"position":3,"preview_image":{"aspect_ratio":1.497,"height":334,"width":500,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935314.4234.-PTIWM.jpg?v=1640007746"},"aspect_ratio":1.497,"height":334,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/40038044.1383935314.4234.-PTIWM.jpg?v=1640007746","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003ePTI Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n \u003cbr\u003e\n\u003c\/div\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003eFits 2006+ Dodge Ram 3500 Rear 2pc \/ SNAP ON SEAL\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1550 (1555)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Lock Up (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4.969 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBearing Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.375 Inch\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDodge\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCenter Line to End of Spline (C):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 7.441 Inch (189.00 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n \u003cstrong\u003eSpline Outside Diameter (E):\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.547 Inch (39.3 mm)\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline* (F):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 36 \u003cem\u003e(34 with blind spots - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHub Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e2.071 Inch (52.60 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Type:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFull Spline\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\"\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003ePowertrain Industries Driveshaft Slip Yoke\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\"\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\n\u003cbr\u003e\n\u003cp\u003e\u003cb\u003eCompatible\u003c\/b\u003e\u003cstrong\u003e Parts:\u003cbr\u003e\u003c\/strong\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\" title=\"PTI 4818-367 Boot Kit\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/hardware\/products\/4818-367?variant=38732835094679\"\u003e4818-367\u003c\/a\u003e Boot and Clamp Kit\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAlternate Part Number:\u003c\/strong\u003e \u003cbr\u003eAAM \u003ca href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\" title=\"AAM 40038044 Trans Slip Yoke\" data-mce-href=\"https:\/\/www.actionmachineinc.com\/collections\/yoke\/products\/40038044?variant=42236703637731\"\u003e40038044\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003e\u003c\/p\u003e\n"}

PTI 5503-367 Trans Slip Yoke

$330.53

PTI Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits 2006+ Dodge Ram 3500 Rear 2pc / SNAP ON SEAL Series: 1550 (1555) U-Joint Lock Up (B): 4.969 Inch Bearing Cap Diameter (A): 1.375 Inch Vehicle Make: Dodge Center Line to End of Spline (C):...

Spicer 2-3-15461X Trans Slip Yoke

$330.18

{"id":1227065163828,"title":"Spicer 2-3-15461X Trans Slip Yoke","handle":"2-3-15461x","description":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e6.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.374 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e25 \u003cem\u003e(24 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eJoint Angle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e20 Degrees \u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\n\u003cbr\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003eSpicer \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/2-3-13721x?variant=38130382597\" title=\"Spicer 2-3-13721X Trans Slip Yoke\"\u003e2-3-13721X\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3303-251?variant=42692170252515\" title=\"PTI 3303-251 Trans Slip Yoke\"\u003e3303-251\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e","published_at":"2017-05-17T14:27:52-04:00","created_at":"2018-08-31T14:14:57-04:00","vendor":"Spicer\/Dana","type":"Slip Yoke","tags":["2315461X","A4LD","Application_Transmission Applications: Fits many Ford 25 spline Transmissions. Fits Transmission Models","Barrel OD_1.37\"","Bearing Cap Diameter_1.063\"","Brand_Spicer","C-3","C3","Length_6.86\"","Lock Up_3.625\"","Part_Transmission Slip Yoke","Part_Yoke","Series_1330","Spline Diameter_1.11\"","Spline_25","Transmission Make_Ford","Transmission Model_5R55E","Transmission Model_A4LD","Transmission Model_C3","Transmission Slip Assembly","U-Joint Type_Outside Snap Ring","Vehicle_Ford","Yoke_Transmission Slip Yoke"],"price":33018,"price_min":33018,"price_max":33018,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":9492577484852,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2-3-15461X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spicer 2-3-15461X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":33018,"weight":1179,"compare_at_price":null,"inventory_quantity":14,"inventory_management":null,"inventory_policy":"deny","barcode":"23913276560","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528_7dab3dd7-378c-42d0-963f-c659b2a60632.png?v=1676490725"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528_7dab3dd7-378c-42d0-963f-c659b2a60632.png?v=1676490725","options":["Title"],"media":[{"alt":null,"id":2611742638215,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528_7dab3dd7-378c-42d0-963f-c659b2a60632.png?v=1676490725"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/2-3-8431X_Front_12528_7dab3dd7-378c-42d0-963f-c659b2a60632.png?v=1676490725","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eSpicer\/Dana Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003eFits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. \u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1330\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Style:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.062 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n3.625 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003c\/strong\u003e\u003cbr\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e6.860 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n1.374 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1.113 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eNumber Of Splines (F):\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e25 \u003cem\u003e(24 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eJoint Angle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e20 Degrees \u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMaterial:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSteel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e Vehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nFord\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003e\n\u003ch2\u003eSPICER DRIVE SHAFT TRANSMISSION SLIP YOKE\u003c\/h2\u003e\n\u003cp\u003eGenuine Spicer\/Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\n\u003cp\u003eSome slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg alt=\"outside snap ring slip yoke\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Screen_Shot_2020-01-31_at_8.22.40_AM_480x480.png?v=1580478334\"\u003e\u003cimg alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\n\n\u003cbr\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eAlternate Part Number:\u003cbr\u003e\u003c\/b\u003eSpicer \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/2-3-13721x?variant=38130382597\" title=\"Spicer 2-3-13721X Trans Slip Yoke\"\u003e2-3-13721X\u003c\/a\u003e Trans Slip Yoke\u003cbr\u003ePTI \u003ca href=\"https:\/\/www.actionmachineinc.com\/products\/3303-251?variant=42692170252515\" title=\"PTI 3303-251 Trans Slip Yoke\"\u003e3303-251\u003c\/a\u003e Trans Slip Yoke\u003c\/p\u003e"}

Spicer 2-3-15461X Trans Slip Yoke

$330.18

Spicer/Dana Drive Shaft Transmission Slip Yoke Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. Series: 1330 Style: Outside Snap Ring U-Joint Cap Diameter (A): 1.062 Inch...

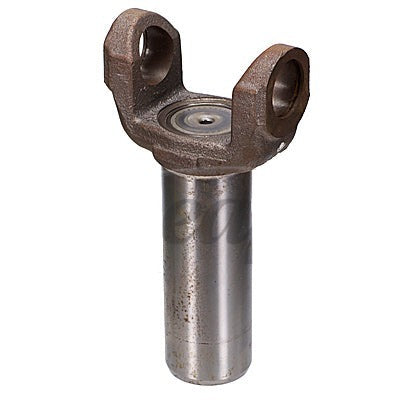

Neapco N3-3-4261X Trans Slip Yoke

$314.23

{"id":453595004965,"title":"Neapco N3-3-4261X Trans Slip Yoke","handle":"n3-3-4261x","description":"\u003ch2\u003eNeapco Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003cp\u003eNeapco Slip Yoke for GM vehicles with 1350 Series U Joints, 32 spline and matching measurement specs.\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 32 spline transmission including Turbo 400 (TH400) with the long tailshaft, Muncie and Auto Gear M22, 6L50, 6L80E, 4L80E long tail, and \u003c\/span\u003e\u003cspan\u003eAlso fits Chevrolet and GMC transfer cases 241C and more.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.625 \u003cspan\u003eInch\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.94 \u003cspan\u003eInch\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.89 \u003cspan\u003eInch\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 1.378 \u003cspan\u003eInch\u003c\/span\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 \u003cem\u003e(31 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVented:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg data-mce-fragment=\"1\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a \u003c\/span\u003e\u003cspan\u003e5.5” short barrel\u003c\/span\u003e\u003cspan\u003e counter\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003ebored\u003c\/span\u003e\u003cspan\u003e slip yoke.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\" alt=\"Transmission Slip yoke with and without counter bore\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003eNeapco Trans. Slip Yoke\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\u003cp\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\" alt=\"\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\"\u003e\u003cimg data-mce-fragment=\"1\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003cbr\u003e\u003c\/p\u003e\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cstrong\u003eAlternate Part Options:\u003c\/strong\u003e\u003cbr\u003eSpicer 3-3-4261X Slip Yoke\u003cbr\u003eSpicer 3-3-6481X \u003cspan\u003eSlip Yoke\u003c\/span\u003e\u003cbr\u003ePTI 3503-3201 \u003cspan\u003eSlip Yoke\u003c\/span\u003e\u003cbr\u003e","published_at":"2017-05-30T08:16:02-04:00","created_at":"2018-01-09T10:34:21-05:00","vendor":"Neapco","type":"Slip Yoke","tags":["6L80-E","6L80E","74085229","Application_Transmission Applications: Fits various manual and automatic transmission with 32 spline output shafts. Fits Transmission Applications:","Barrel OD_1.89\"","Bearing Cap Diameter_1.188\"","Brand_Neapco","Length_6.94\"","Lock Up_3.625\"","M22","N334261X","Part_Transmission Slip Yoke","Part_Yoke","Richmond","Series_1350","Spline Diameter_1.38\"","Spline_32","Transmission Make_GM","Transmission Model_4L80E Long Tail","Transmission Model_6L50","Transmission Model_6L80E","Transmission Model_M22","Transmission Model_Richmond","Transmission Slip Assembly","Transmission Slip Yoke_GM","U-Joint Type_Outside Snap Ring","Vehicle_GM","Yoke_Transmission Slip Yoke"],"price":31423,"price_min":31423,"price_max":31423,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":5138064179237,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"N3-3-4261X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Neapco N3-3-4261X Trans Slip Yoke","public_title":null,"options":["Default Title"],"price":31423,"weight":1814,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":null,"inventory_policy":"deny","barcode":"083869009896","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.actionmachineinc.com\/cdn\/shop\/products\/N3-3-4261X.jpg?v=1676659002"],"featured_image":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/N3-3-4261X.jpg?v=1676659002","options":["Title"],"media":[{"alt":null,"id":2495778193543,"position":1,"preview_image":{"aspect_ratio":1.0,"height":400,"width":400,"src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/N3-3-4261X.jpg?v=1676659002"},"aspect_ratio":1.0,"height":400,"media_type":"image","src":"\/\/www.actionmachineinc.com\/cdn\/shop\/products\/N3-3-4261X.jpg?v=1676659002","width":400}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eNeapco Drive Shaft Transmission Slip Yoke\u003c\/h2\u003e\n\u003cp\u003eNeapco Slip Yoke for GM vehicles with 1350 Series U Joints, 32 spline and matching measurement specs.\u003c\/p\u003e\n\u003c!-- ↓ TAB Section ↓ --\u003e\n\u003cul class=\"shopify-tabs\"\u003e\n\u003cli data-tab=\"tab-1\" class=\"current\"\u003eProduct Specs\u003c\/li\u003e\n\u003cli data-tab=\"tab-2\"\u003eDescription\u003c\/li\u003e\n\u003cli data-tab=\"tab-3\"\u003eDiagrams\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"shopify-tab-content current\" id=\"tab-1\"\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eTransmission and Transfer Case Applications:\u003c\/strong\u003e\u003cbr\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eFits various 32 spline transmission including Turbo 400 (TH400) with the long tailshaft, Muncie and Auto Gear M22, 6L50, 6L80E, 4L80E long tail, and \u003c\/span\u003e\u003cspan\u003eAlso fits Chevrolet and GMC transfer cases 241C and more.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1350\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStyle:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eOutside Snap Ring\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Cap Diameter (A):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.188 Inch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eU-Joint Width (B):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n3.625 \u003cspan\u003eInch\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eSlip Yoke Length (C):\u003cbr\u003e\u003c\/strong\u003e(Center Line to End of Spline)\u003c\/td\u003e\n\u003ctd\u003e\n6.94 \u003cspan\u003eInch\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBarrel Diameter (D):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n1.89 \u003cspan\u003eInch\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Diameter (E):\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n 1.378 \u003cspan\u003eInch\u003c\/span\u003e\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNumber of Spline (F)*:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32 \u003cem\u003e(31 with blind spot - see note below*)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVented:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSpline Counter Bore:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVehicle Make:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\nGM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cem\u003eVMRS: 024002038\u003c\/em\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.\u003c\/p\u003e\n\u003cp\u003e\u003cimg data-mce-fragment=\"1\" alt=\"Driveshaft Slip Yoke Diagram Outside Snap Ring Style\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at3.07.11PM_480x480.png?v=1685128181\"\u003e\u003c\/p\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eTransmission Output Shaft Style\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp\u003e\u003cspan\u003eIf you have a TH-400 or 4L80 confirm if you have an o-ring on the output spline of your transmission. If your transmission has an o-ring you will need a \u003c\/span\u003e\u003cspan\u003e5.5” short barrel\u003c\/span\u003e\u003cspan\u003e counter\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003ebored\u003c\/span\u003e\u003cspan\u003e slip yoke.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Transmission_Slip_yoke_counterbore_480x480.png?v=1613663588\" alt=\"Transmission Slip yoke with and without counter bore\"\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-2\"\u003eNeapco Trans. Slip Yoke\u003c\/div\u003e\n\u003cdiv class=\"shopify-tab-content\" id=\"tab-3\"\u003e\u003cp\u003e\u003cimg data-mce-fragment=\"1\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\" alt=\"\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/Slip_Yoke_Side_Diagram_480x480.png?v=1599676229\"\u003e\u003cimg data-mce-fragment=\"1\" alt=\"Driveshaft Slip Yoke Diagram Spline Count\" src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\" data-mce-src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2012\/8549\/files\/ScreenShot2023-05-26at12.47.42PM_480x480.png?v=1685119728\"\u003e\u003cbr\u003e\u003c\/p\u003e\u003c\/div\u003e\n\u003c!-- ↑ TAB Section ↑ --\u003e\n\u003cstrong\u003eAlternate Part Options:\u003c\/strong\u003e\u003cbr\u003eSpicer 3-3-4261X Slip Yoke\u003cbr\u003eSpicer 3-3-6481X \u003cspan\u003eSlip Yoke\u003c\/span\u003e\u003cbr\u003ePTI 3503-3201 \u003cspan\u003eSlip Yoke\u003c\/span\u003e\u003cbr\u003e"}

Neapco N3-3-4261X Trans Slip Yoke

$314.23

Neapco Drive Shaft Transmission Slip Yoke Neapco Slip Yoke for GM vehicles with 1350 Series U Joints, 32 spline and matching measurement specs. Product Specs Description Diagrams Transmission and Transfer Case Applications: Fits various 32 spline transmission including Turbo 400 (TH400) with the long tailshaft, Muncie and Auto Gear...

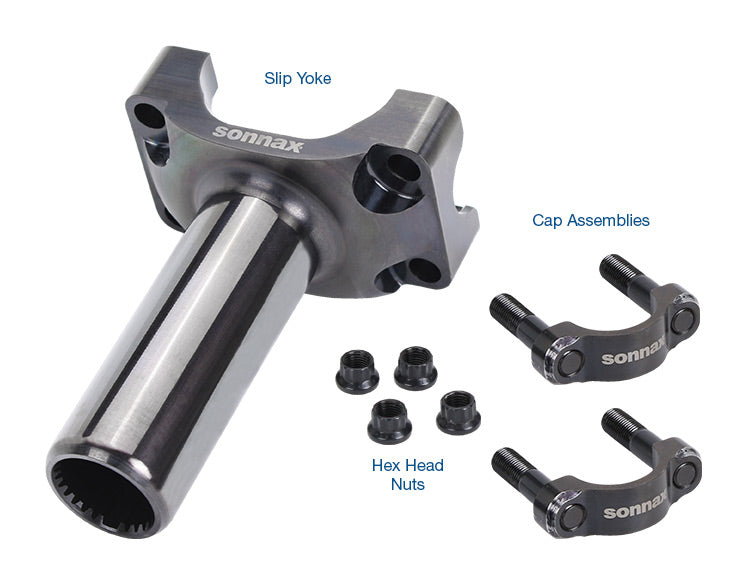

Sonnax T3-3-6081QR Trans Slip Yoke
