Spicer 3-3-6201X Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-6201X

Previous Product | Next Product
Product Description

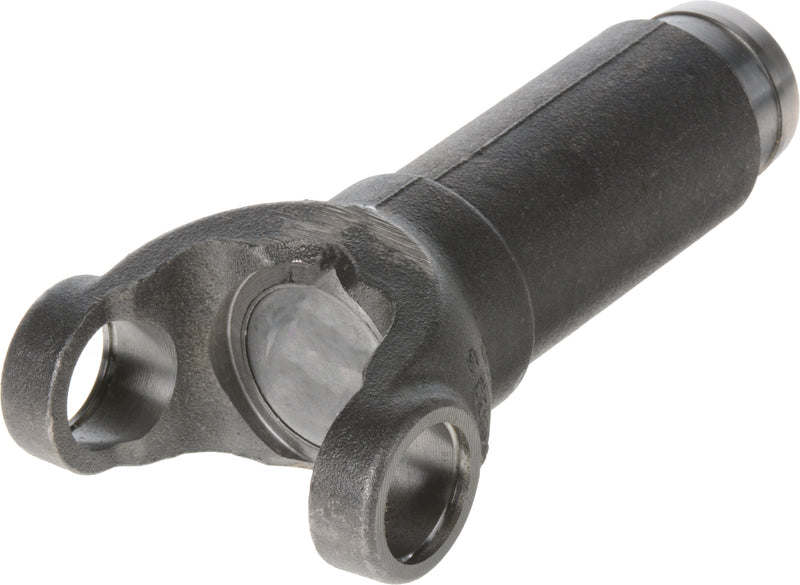

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1350
U-Joint Width (B): 3.625 Inch
U-Joint Cap Diameter (A): 1.188 Inch
Center Line to End of Spline (C): 7.312 Inch
Center Line to Face of Plug: 1.190 Inch
Spline Outside Diameter (E): 1.463 Inch

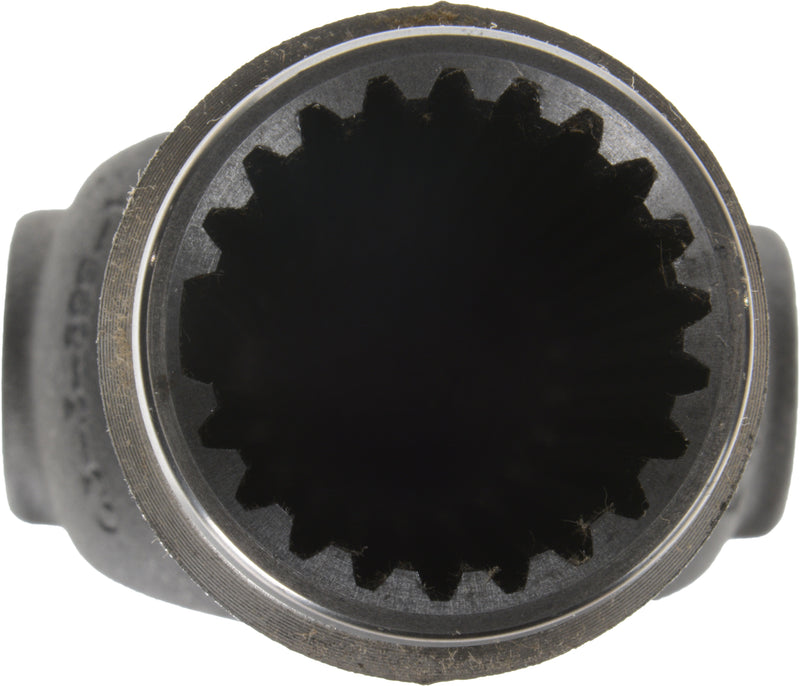

Spline Count (F): 22/21
Greasable: No
Material: Steel

VMRS: 024002038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Compatible Parts:
Spicer 5-1350X U-Joint
Spicer 212010X Boot Kit

Spicer 3-3-6981X Slip Yoke

Sku: 3-3-6201X
Vendor: Spicer/Dana
