AMI 3-2-479 Flange Yoke

Vendor: Action Machine Inc., Sku: AMI 3-2-479

Product Description

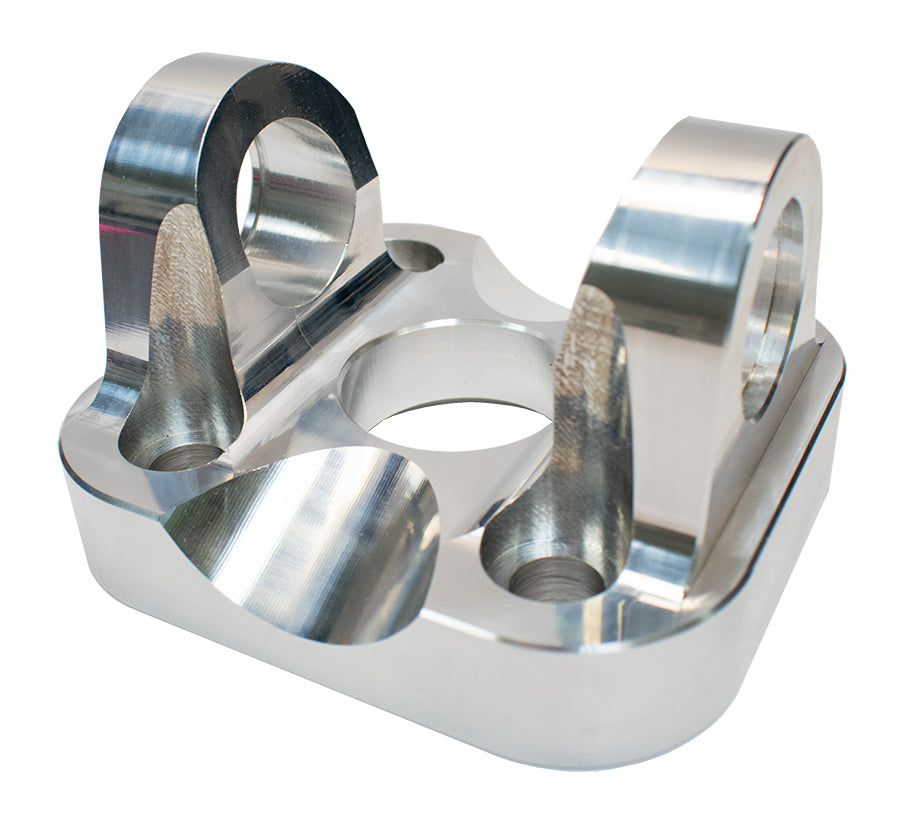

Driveshaft Flange Yoke

Specifications

Bolt Circle:  4.75 Inch
Series: 1480
U-Joint Lock Up: 4.188 Inch
Bearing Cap Diameter: 1.375 Inch
Flange Face to Center Line: 2.00 Inch
Hole/Thread Size: 0.51 Inch
Joint Angle: 20 Degrees
Number of Bolt Holes:
4
Pilot Diameter: 3.75 Inch Male

VMRS: 024-002-016


Alternate Part Numbers:
Spicer 3-2-479 Flange Yoke
Neapco N3-2-479 Flange Yoke
PTI P3-2-479 Flange Yoke
Sku: AMI 3-2-479
$50.17
Maximum quantity available reached.

DETAILS

U-Joint Series:
1480
U-Joint Cap Size (B): 1.375"
U-Joint Width (A): 4.188"
Snap Ring Type: Outside Snap Ring
Manufacturer: Action Machine Inc.
Pilot Diameter (G): 3.750" M
Bolt Circle (E): 4.750"
Manufacturer Part Number: AMI 3-2-479
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
