PTI 5502-531 Flange Yoke

Vendor: PTI, Sku: 5502-531

Product Description

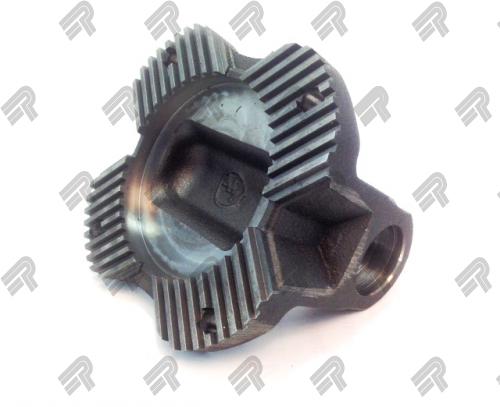

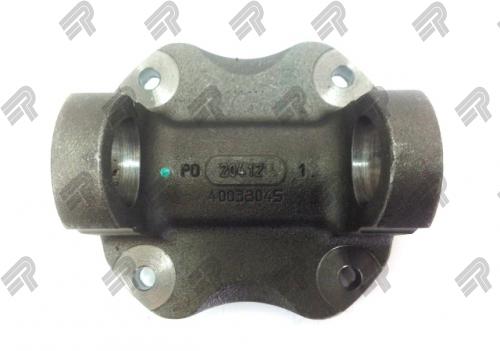

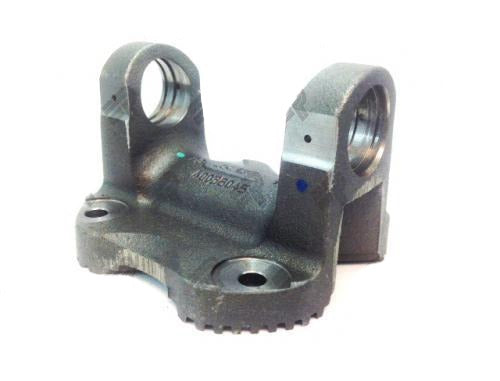

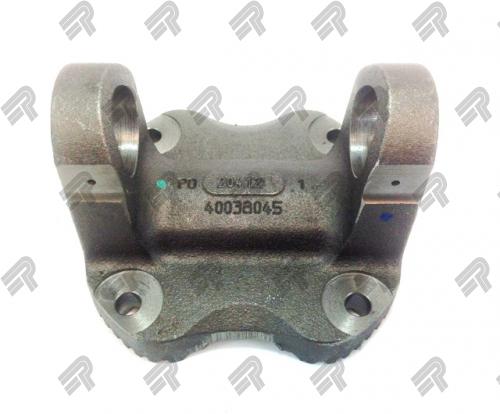

PTI Driveshaft Serrated Flange Yoke

Square pattern, Serrated Chrysler/Dodge Ram TC flange 2006+

Specifications

Bolt Circle:
5.315 Inch (135.00 mm)
Series:
1550 (1555)
U-Joint Lock Up:
4.969 Inch
Bearing Cap Diameter:
1.375 Inch
Flange Face to Center Line:
2.772 Inch (70.4 mm)
Number of Bolt Holes:
4
Pilot Diameter:
3.750  Inch (95.25 mm)
Pilot Type: Male Pilot
Vehicle Make: Chrysler
Swing Diameter: 6.102 Inch (155.00 mm)
Flange Type: Serrated

VMRS: 024-002-016


Alternate Part Option:
AAM 40038046 Flange Yoke (Serrated)
Sku: 5502-531
Vendor: PTI
$327.02
Maximum quantity available reached.

DETAILS

U-Joint Series:
1550
U-Joint Cap Size (B): 1.375"
U-Joint Width (A): 4.969"
Snap Ring Type: Outside Snap Ring
Manufacturer: PTI
Pilot Diameter (G): 3.748" M
Bolt Circle (E): 5.315"
Manufacturer Part Number: 5502-531
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
