Action Machine Inc. is a distributor of high quality driveshaft end yokes.
Use the filters below to help narrow your selection.
Free shipping on all orders over $100.00 within the USA.
If you do not see the end yoke that you are looking for please contact us for assistance.
Hours: Monday - Friday, 7:00 am to 4:30 pm EST
CONTACT US | CHAT | (574) 287-9650
End Yokes
Spicer 2-4-8051-1X End Yoke
End Yoke | 2-4-8051-1X
- Series: ∙ 1330
- Spline Count: 29
- Spline OD: 1.276"
- Bore Length: 1.500"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.875"
- Style: Outside Snap Ring
Rear Axle Type: | Dana 60/70
- U-Joint Series: , 1330
- Spline Count: 29
- Spline OD: 1.276"
- Bore Length: 1.500"
- Cap OD: 1.063"
- Yoke Span: 3.625"
- Hub Dia.: 1.875"
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 60/70
Spicer 2-4-8091-1X End Yoke
End Yoke | 2-4-8091-1X
- Series: ∙ 1310
- Spline Count: 29
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.219"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
Rear Axle Type: | Dana 30/44/50
- U-Joint Series: , 1310
- Spline Count: 29
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.219"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 30/44/50

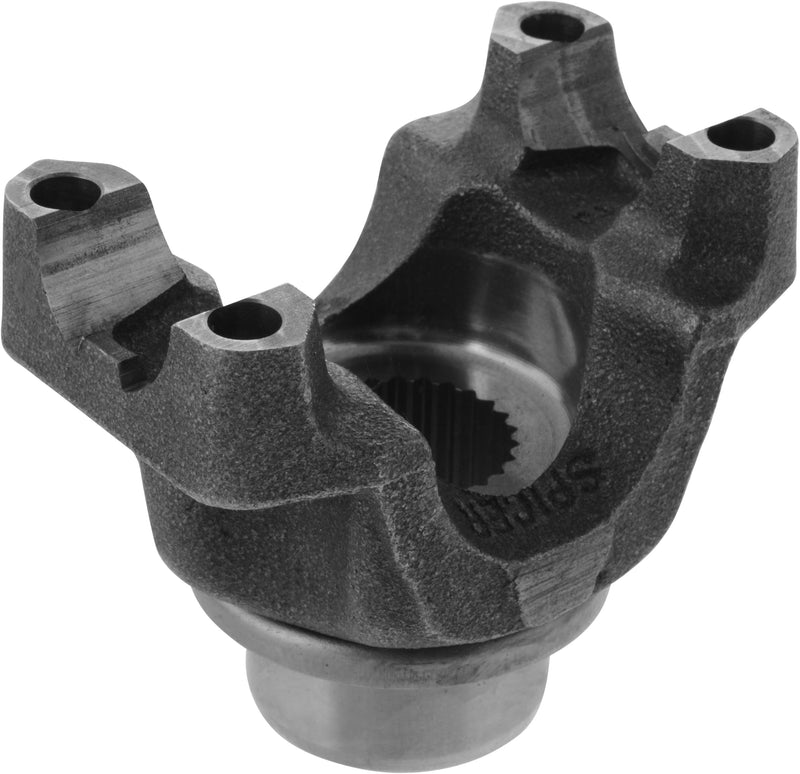

Spicer 2-4-8091X End Yoke
End Yoke | 2-4-8091X
- Series: ∙ 1310
- Spline Count: 26
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.219"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
Rear Axle Type: | Dana 30/44/50
- U-Joint Series: , 1310
- Spline Count: 26
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 1.063"
- Yoke Span: 3.219"
- Hub Dia.: 1.552”
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 30/44/50
Spicer 250-4-21-1 End Yoke
End Yoke | 250-4-21-1
- Series: ∙ SPL 250
- Spline Count: 46
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 2.362"
- Yoke Span: 6.417"
- Hub Dia.: 1.552”
Rear Axle Type:
- U-Joint Series: , SPL 250
- Spline Count: 46
- Spline OD: 1.146”
- Bore Length: 1.500”
- Cap OD: 2.362"
- Yoke Span: 6.417"
- Hub Dia.: 1.552”
- Rear Axle Type:
Spicer 250-4-81-1X End Yoke
End Yoke | 250-4-81-1X
- Series: ∙ SPL 250
- Spline Count: 44
- Spline OD: 2.274”
- Bore Length: 2.500”
- Cap OD: 2.362"
- Yoke Span: 6.417"
- Hub Dia.: 3.000”
Rear Axle Type:
- U-Joint Series: , SPL 250
- Spline Count: 44
- Spline OD: 2.274”
- Bore Length: 2.500”
- Cap OD: 2.362"
- Yoke Span: 6.417"
- Hub Dia.: 3.000”
- Rear Axle Type:
Spicer 3-4-10951-1 End Yoke
End Yoke | 3-4-10951-1
- Series: ∙ 1410
- Spline Count: 32
- Spline OD: 1.400"
- Bore Length: 2.000”
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.125"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1410
- Spline Count: 32
- Spline OD: 1.400"
- Bore Length: 2.000”
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 2.125"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 3-4-11281-1X End Yoke
End Yoke | 3-4-11281-1X
- Series: ∙ 1480
- Spline Count: 37
- Spline OD: 1.609"
- Bore Length: 2.000"
- Cap OD: 1.375"
- Yoke Span: 4.188"
- Hub Dia.: 2.500"
- Style: Outside Snap Ring
Rear Axle Type: | Dana 80
- U-Joint Series: , 1480
- Spline Count: 37
- Spline OD: 1.609"
- Bore Length: 2.000"
- Cap OD: 1.375"
- Yoke Span: 4.188"
- Hub Dia.: 2.500"
- Style: Outside Snap Ring
- Rear Axle Type: | Dana 80
Spicer 3-4-11931-1X End Yoke
End Yoke | 3-4-11931-1X
- Series: ∙ 1350
- Spline Count: 28
- Spline OD: 1.229"
- Bore Length: 1.375"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.844"
- Style: Outside Snap Ring
Rear Axle Type: | AMC 20
- U-Joint Series: , 1350
- Spline Count: 28
- Spline OD: 1.229"
- Bore Length: 1.375"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.844"
- Style: Outside Snap Ring
- Rear Axle Type: | AMC 20
Spicer 3-4-13881-1 End Yoke
End Yoke | 3-4-13881-1
- Series: ∙ 1350
- Spline Count: 10
- Spline OD: 1.375"
- Bore Length: 1.781"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.719"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1350
- Spline Count: 10
- Spline OD: 1.375"
- Bore Length: 1.781"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.719"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 3-4-14591-1 End Yoke
End Yoke | 3-4-14591-1
- Series: ∙ 1410
- Spline Count: 29
- Spline OD: 1.276"
- Bore Length: 1.500"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 1.810"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1410
- Spline Count: 29
- Spline OD: 1.276"
- Bore Length: 1.500"
- Cap OD: 1.188"
- Yoke Span: 4.188"
- Hub Dia.: 1.810"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 3-4-178-1X End Yoke
End Yoke | 3-4-178-1X
- Series: ∙ 1350
- Spline Count: 10
- Spline OD: 1.375"
- Bore Length: 1.781"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.719"
- Style: Outside Snap Ring
Rear Axle Type:
- U-Joint Series: , 1350
- Spline Count: 10
- Spline OD: 1.375"
- Bore Length: 1.781"
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.719"
- Style: Outside Snap Ring
- Rear Axle Type:
Spicer 3-4-2051-1 End Yoke
End Yoke | 3-4-2051-1
- Series: ∙ 1350
- Spline Count: 10
- Spline OD: 1.181”
- Bore Length: 1.656”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.875”
- Style: Outside Snap Ring
Rear Axle Type: | Chrysler 8.75"
- U-Joint Series: , 1350
- Spline Count: 10
- Spline OD: 1.181”
- Bore Length: 1.656”
- Cap OD: 1.188"
- Yoke Span: 3.625"
- Hub Dia.: 1.875”
- Style: Outside Snap Ring
- Rear Axle Type: | Chrysler 8.75"
