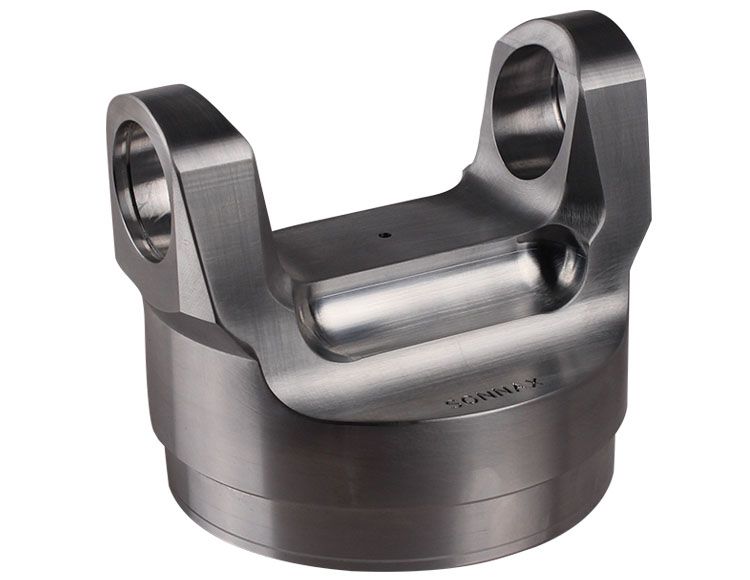

Sonnax T55-28-5012 Weld Yoke / Tube Yoke

Vendor: Sonnax, Sku: T55-28-5012

Product Description

Aluminum Weld Yoke/Tube Yoke

This item is drop shipped from the manufacturer when quantities are available. Contact Action Machine Inc today to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650



Designed for 5 inch aluminum driveshafts with 0.125 inch wall tubing and 1550/1555 series U-joints, Sonnax T55-28-5012 aluminum weld yokes are turned from billet 6061-T6 aluminum and precision-machined. They are ideal for converting two-piece Dodge driveshafts to eliminate the carrier bearing, and are a great strength and performance upgrade for Chevy heavy-duty truck applications. These 5" yokes are field proven to hold up to the higher torque demands which modified Dodge and Chevy Diesels can produce.

  • High-strength, turned aluminum yokes are stronger than OE yokes and offer significant weight savings over steel components
  • Critical dimensions and tolerances are tightly controlled to ensure every part is perfectly concentric, minimizing time in building and balancing

Aluminum Weld Yokes

  • Precision machined from billet 6061-T6 aluminum to be stronger than OE cast steel yokes
  • Unrivaled concentricity for exceptional balance & minimal runout
  • Extra-thick pilot weld wall for consistent welds

Series: 1550 (1555)
U-Joint Width: 4.969 Inch
Bearing Cap Diameter: 1.375 Inch
Material: 6061-T6 Aluminum
Center Line to Weld: 2.76 Inch
Tube Diameter: 5.00 Inch
Tube Wall Thickness: 0.125 Inch


    Compatible Parts:
    Spicer 5-155X U-Joint

    Alternate Part Options:
    AMI 55-28-5012 Weld Yoke/Tube Yoke
    PTI 5526-50A  Weld Yoke/Tube Yoke

    Sku: T55-28-5012
    Vendor: Sonnax
    $135.23
