Sonnax T485-28-5012 Weld Yoke / Tube Yoke

Vendor: Sonnax, Sku: T485-28-5012

Product Description

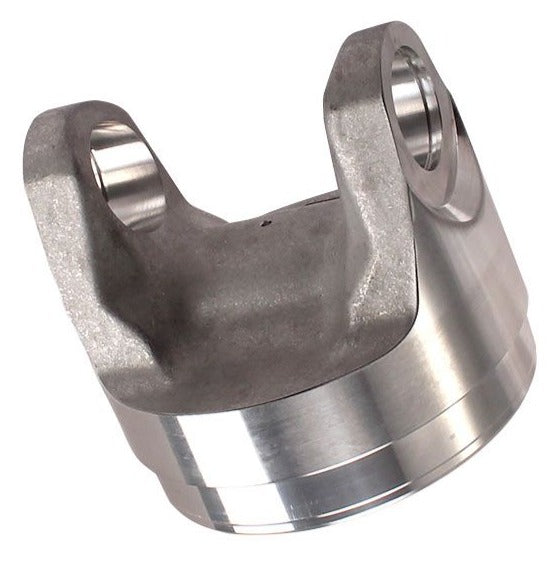

Driveshaft Aluminum Weld Yoke/Tube Yoke

This part is drop shipped from the manufacturer and will ship at the earliest available time. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650



Designed for 5 inch aluminum driveshafts with 0.125 inch wall tubing and 1485 series U-joints, Sonnax T485-28-5012 aluminum weld yokes are forged from 6061-T6 aluminum and precision-machined. They are ideal for converting two-piece Dodge driveshafts to eliminate the carrier bearing, and are a great strength and performance upgrade for Chevy heavy-duty truck applications. These 5" yokes are field proven to hold up to the higher torque demands which modified Dodge and Chevy Diesels can produce.

  • High-strength, forged aluminum yokes are stronger than OE yokes and offer significant weight savings over steel components
  • Critical dimensions and tolerances are tightly controlled to ensure every part is perfectly concentric, minimizing time in building and balancing
  • Yokes are precision-machined by skilled craftsmen at the Sonnax manufacturing facility in Vermont, U.S.A.
Series: 1480 (1485)
Outside Yoke Dimension: 4.188 Inch
Bearing Cap Diameter: 1.375 Inch
Fits Tube Diameter: 5.000 Inch
Fits Tube Wall: 0.125 Inch
Butt Diameter: 4.752 Inch
Center Line to Weld: 2.88 Inch
Design: Outside Snap Ring
Material: 6061-T6 Aluminum


Alternate Part Options:
AMI 48-28-5012 Weld Yoke / Tube Yoke (Sereis: 1480)

Sku: T485-28-5012
Vendor: Sonnax
$125.88
