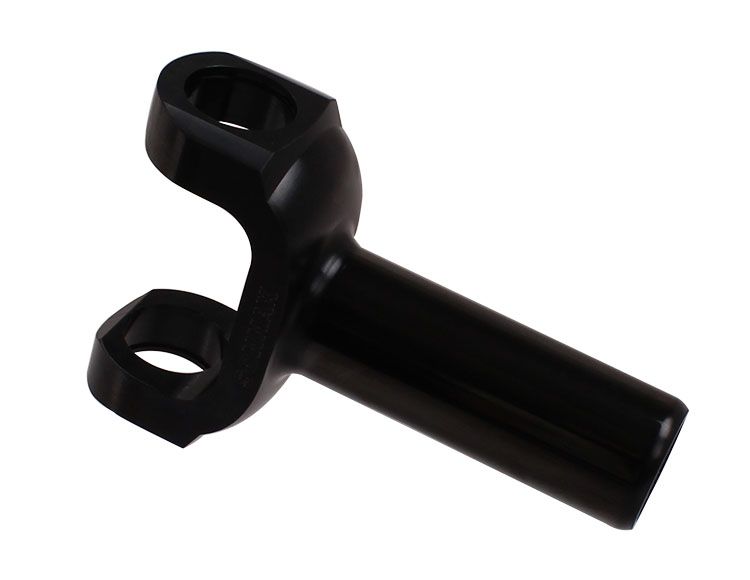

Sonnax T2-3-4911HP Trans Slip Yoke

Vendor: Sonnax, Sku: T2-3-4911HP

Product Description

Sonnax Drive Shaft Transmission Slip Yoke

This item is drop shipped from the manufacturer when quantities are available. Contact Action Machine Inc today to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650


Sonnax T2-3-4911HP performance forged steel slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price. The T2-3-4911HP uses
1310 series u-joints, and fits several applications, including most Powerglide, TH 350, 700R, 200R and 4L60 transmissions. Also fits Muncie M20 & M21, Saginaw, Borg Warner T-5 T-10 & T-56 transmissions. These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.

Sonnax Performance Slip Yokes

Quality & Engineering You Can Trust

A Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.

  • Fully machined from billet steel for enhanced strength & durability
  • Leak-free plug tested to 40 psi for optimum sealing
  • 1330 & 1350 Series yokes are chromoly steel
Transmission Applications:

Fits various manual and automatic transmission with 27 spline output shafts including 27T PG, THM 200-4R, 350, 700-R4, 4L60E, Muncie M20, 21, 22( w 27T) and Saginaw 3- & 4-Speed



Series: 1310
Outside Yoke Dimension / U-Joint Lock Up (B): 3.219 Inch
Bearing Cap Diameter (A): 1.063 Inch
Vehicle Make: GM
Center Line to End of Spline (C): 4.880 Inch
Overall Length: 5.630 Inch
Barrel Length: 3.630 Inch
Hub / Seal / Journal Diameter (D): 1.503 Inch
Number of Spline* (F): 27
Spline Diameter (E): 1.176 Inch
Spline Type: Full Spline
Style: Outside Snap Ring
Material: Forged Chromoly

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeDriveshaft Slip Yoke Diagram Spine Count

0


Alternate Part Number:
Spicer 2-3-4911X Trans Slip Yoke
PTI 3103-271 Trans Slip Yoke (U-bolt)
