Spicer 5-4-4461 End Yoke (Obsolete)

Vendor: Spicer/Dana, Sku: 5-4-4461

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*

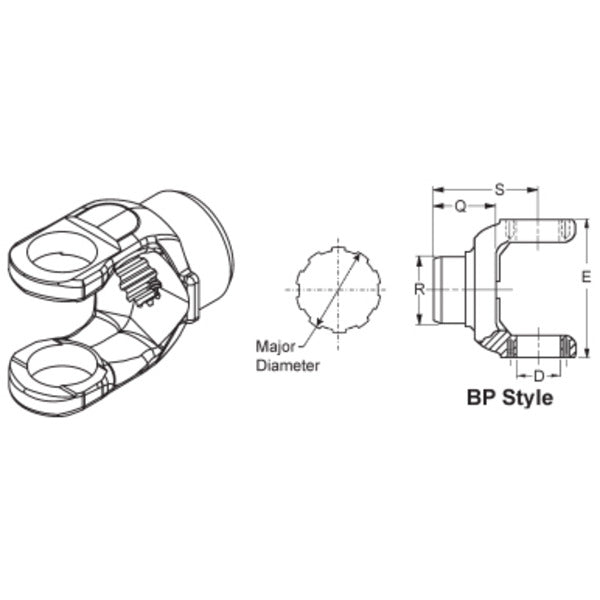

U-Joint Series: 1610
Style: Full Round
U-Joint Cap Diameter (D): 1.875 Inch
U-Joint Width (E): 5.312 Inch
End Yoke Length(S) :
- Center Line to End of Spline
5.344 Inch
Hub Diameter (R): 2.625 Inch
Spline Diameter:
- From Farthest Point to Farthest Point
1.750 Inch
Number of Splines: 10
Bore Length (Q): 2.625 Inch

VMRS: 022003072


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


This part is compatible with:
1610 U-joint Series: U-Joint Options

Alternate Option:
Neapco N5-4-4461 End Yoke (Obsolete)

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
