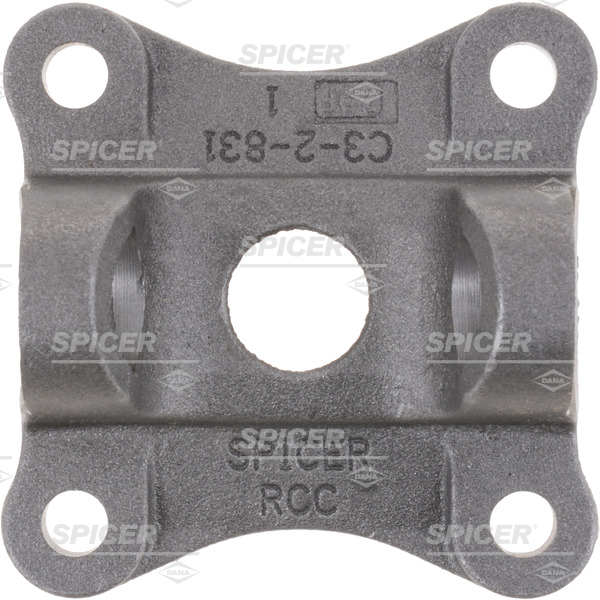

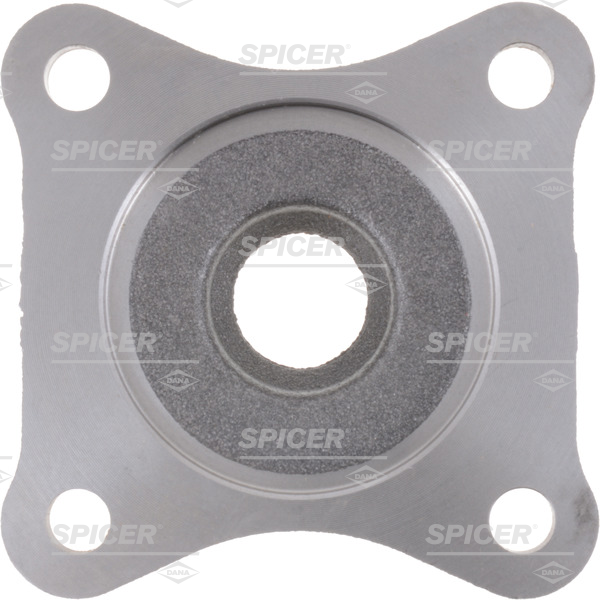

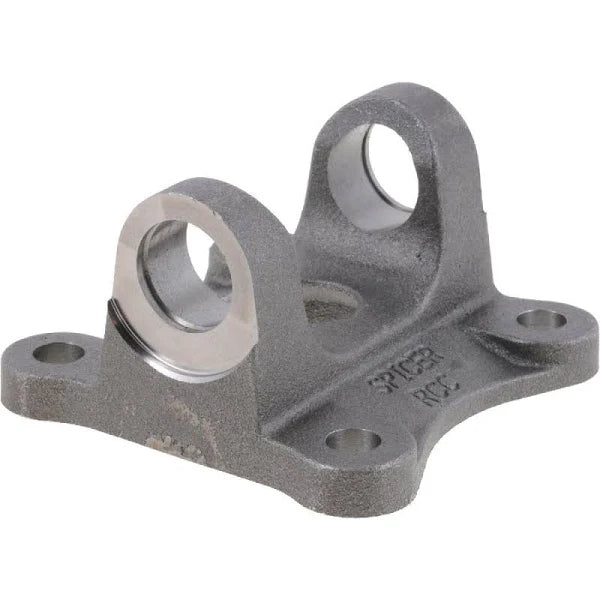

Spicer 2-2-03489 Flange Yoke

Vendor: Spicer/Dana, Sku: 2-2-03489

Product Description

Spicer Drive shaft Flange Yoke

U-Joint Type: Outside Lock-Up
Bolt Circle: 4.750 Inch
Series: 1330
Snap Ring to Snap Ring: 3.625 Inch
Bearing Cap Diameter: 1.062 Inch
Flange Face to Center Line: 1.730 Inch
Hole Diameter: 0.500 Inch  - Drilled
Number of Bolt Holes: 4
Pilot Diameter: 2.953 Inch Female
Flange or Swing Diameter: 5.875 Inch

 VMRS: 0204002016

Sku: 2-2-03489
Vendor: Spicer/Dana
$75.62
Maximum quantity available reached.

DETAILS

U-Joint Series:
1330
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.625"
Snap Ring Type: Outside Snap Ring
Manufacturer: Spicer/Dana
Pilot Diameter (G): 2.953" F
Bolt Circle (E): 4.750"
Manufacturer Part Number: 2-2-03489
Flange or Swing Diameter (J): 5.875"
Bolt Hole (F): 0.500"
Number of Bolt Holes: 4
OEM/Alternate Part Number:
023913236823

“Outside

.
