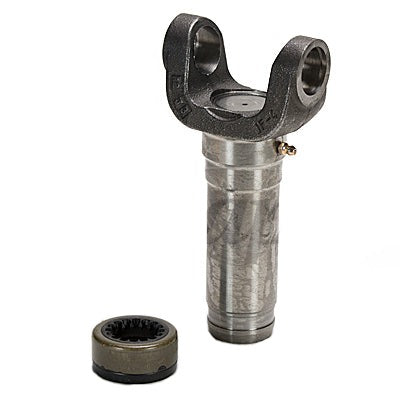

Neapco N3-3-1502KX Slip Yoke

Vendor: Neapco, Sku: N3-3-1502KX

Product Description

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1350
U-Joint Width (B): 3.625 Inch
U-Joint Cap Diameter (A): 1.188 Inch
Style: Outside Snap Ring
Center Line to End of Spline (C): 7.31 Inch
Center Line to Face of Washer: 1.24 Inch
Spline Outside Diameter (E): 1.375 Inch
Spline Count (F): 16
Greasable: Yes
Joint Angle: 20.00 Degree
Material: Steel

VMRS: 024-002-038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Compatible Parts:
Neapco 0641-B Lube Fitting
Neapco 280195 Dust Cap

Sku: N3-3-1502KX
Vendor: Neapco
$107.74
