Neapco N2-3-8001KX Slip Yoke

Vendor: Neapco, Sku: N2-3-8001KX

Product Description

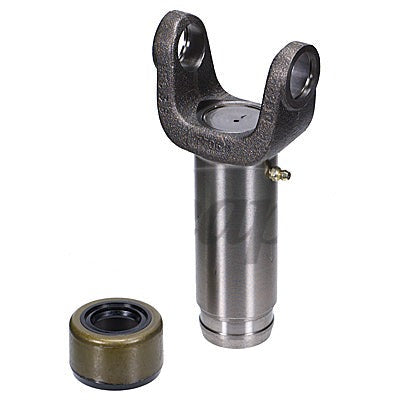

Slip Yoke Assembly / Sleeve Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1310
U-Joint Width (B): 3.219 Inch
Bearing Cap Diameter (A): 1.063 Inch
Center Line to End of Spline (C): 6.88 Inch
Center Line to Face of Washer: 1.53 Inch
Spline Outside Diameter (E): 1.375 Inch
Spline Count (F): 16
Joint Angle: 30 Degrees
Material: Steel
Dust Cap Included: Yes - 280194
Greasable: Yes

VMRS: 024-002-038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
AMI 2-3-8001KX Slip Yoke Assembly
Spicer 2-3-8001KX Slip Yoke Assembly
Spicer 2-3-8001KXB Slip Yoke Assembly
PTI 3103-161 Slip Yoke Assembly
Meritor 131N-3-8001KX Slip Yoke Assembly

Compatible Parts:
Neapco 280194 Dust Cap
Neapco 0641-B Lube Fitting
Spicer 5-788X Conversion U-Joint (7260 X 1310)
