AMI 2-3-128KX Slip Yoke

Vendor: Action Machine Inc., Sku: AMI_2-3-128KX

Product Description

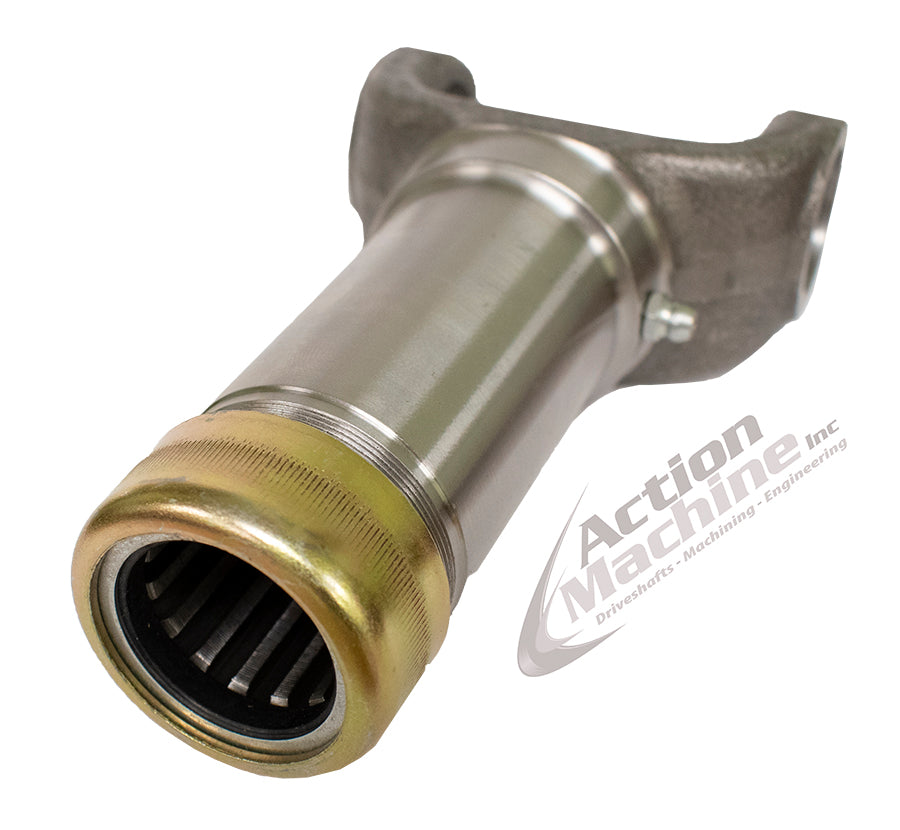

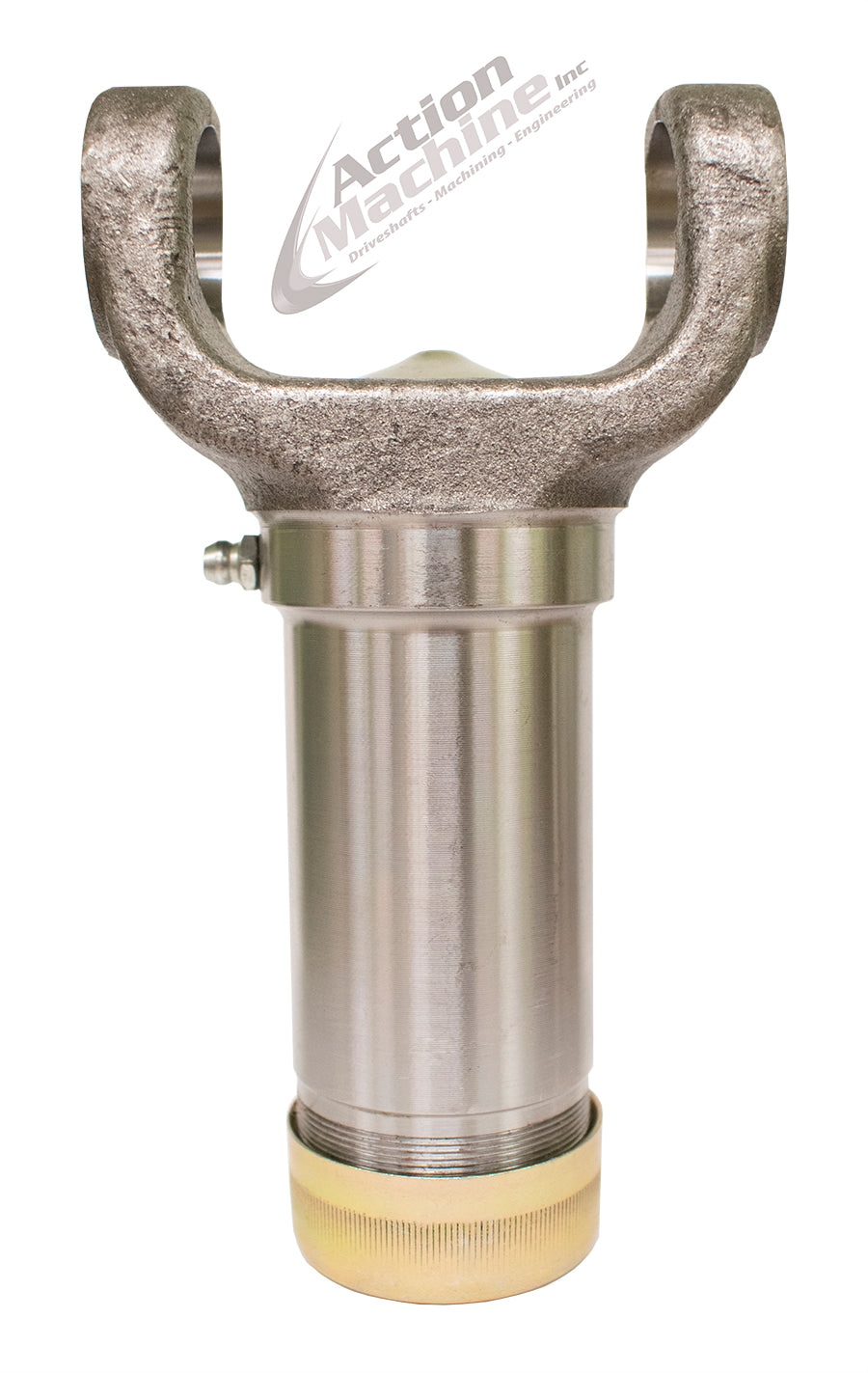

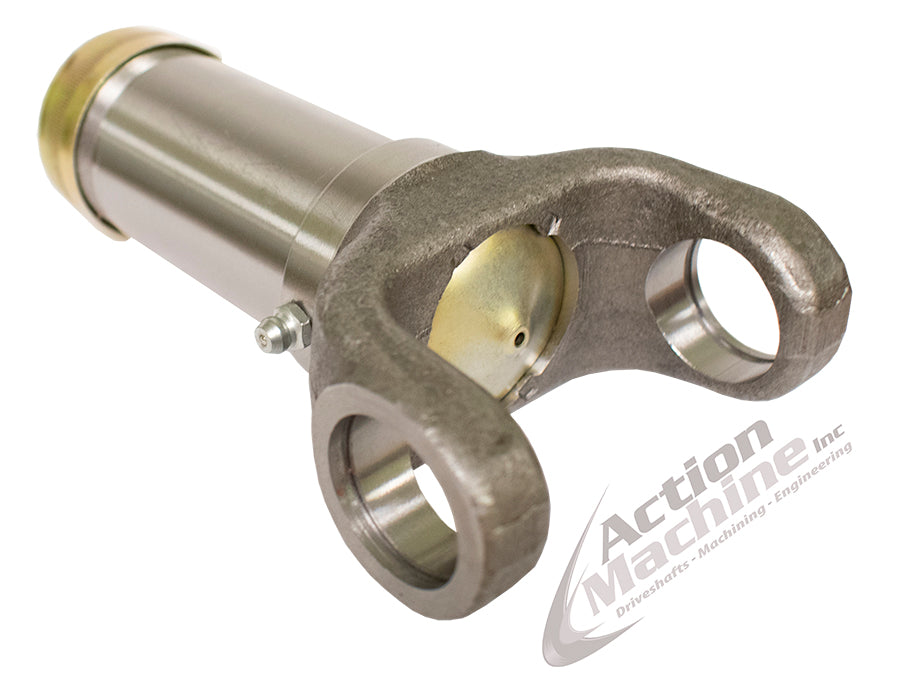

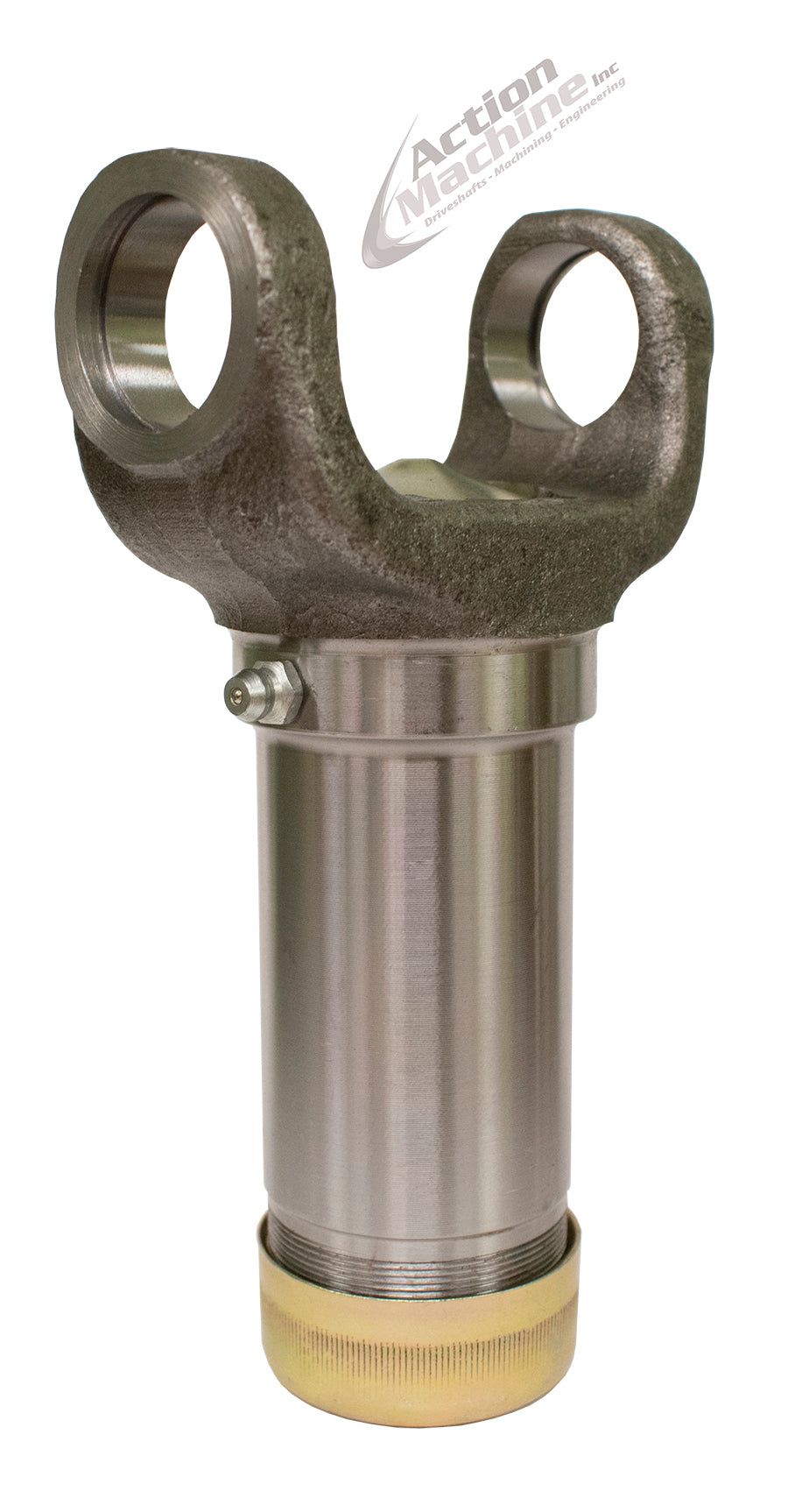

Slip Yoke Assembly / Sleeve Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Brand: Action Machine Inc
Series: 1310
U-Joint Width (B): 3.219 Inch
Bearing Cap Diameter (A): 1.063 Inch
Center Line to End of Spline (C): 5.375 Inch
Center Line to Face of Plug: 1.000 Inch
Spline Outside Diameter (E): 1.375 Inch
Spline Count (F): 16
Involute:
No
Material: Steel
Dust Cap Included: Yes

VMRS: 024002038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
Spicer 2-3-128KX Slip Yoke Assembly
Spicer 2-3-128KXB Slip Yoke Assembly
Neapco N2-3-128KX Slip Yoke Assembly

PTI P2-3-128KX Slip Yoke Assembly
Meritor 131N-3-128KX Slip Yoke Assembly

Compatible Parts:
Neapco 280194 Dust Cap
Neapco 0641-B Lube Fitting

Sku: AMI_2-3-128KX
$56.23
