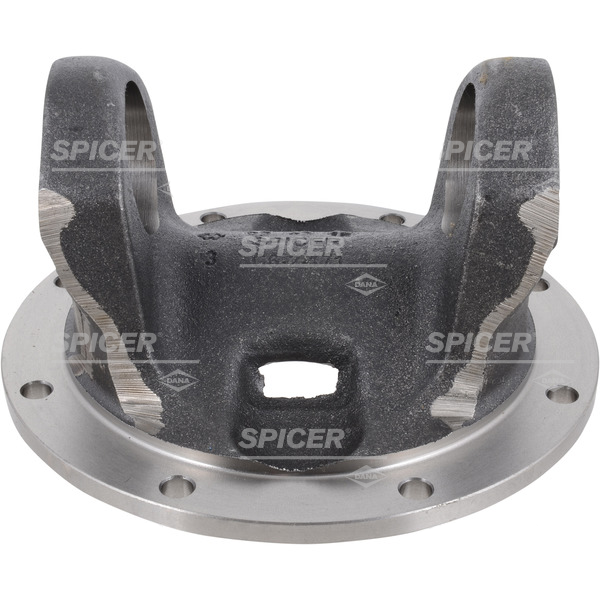

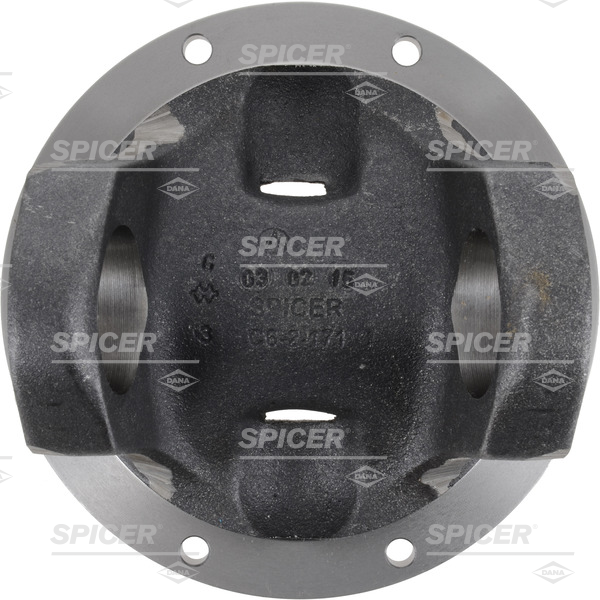

Spicer 6-2-749 Flange Yoke

Vendor: Spicer/Dana, Sku: 6-2-749

Product Description

Driveshaft Flange Yoke

Specifications

Series: 1710
Outside Yoke Dimension: 6.094 Inch
Bearing Cap Diameter: 1.938 Inch
Bolt Circle: 7.25 Inch
Number of Bolt Holes: 8
Flange Face to Center Line (Length): 3.00 Inch
Hole / Thread Size: 0.375 Inch - Drilled
Pilot Diameter: 7.75 Inch - Male
Material: Steel
Joint Angle: 22/29 Degrees
Design: Circular

VMRS: 024002016


Alternate Part Option:
Neapco N6-2-749 Flange Yoke
PTI P6-2-749 Flange Yoke
Sku: 6-2-749
Vendor: Spicer/Dana
$212.14
Maximum quantity available reached.

DETAILS

U-Joint Series:
1710
U-Joint Cap Size (B): 1.938"
U-Joint Width (A): 6.094"
Snap Ring Type: Bearing Plate
Manufacturer: Spicer/Dana
Pilot Diameter (G): 7.75" M
Bolt Circle (E): 7.25"
Manufacturer Part Number: 6-2-749
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 8
OEM/Alternate Part Number:
