Spicer 5-2031X Wing U-Joint

Vendor: Spicer/Dana, Sku: 5-2031X

Product Description

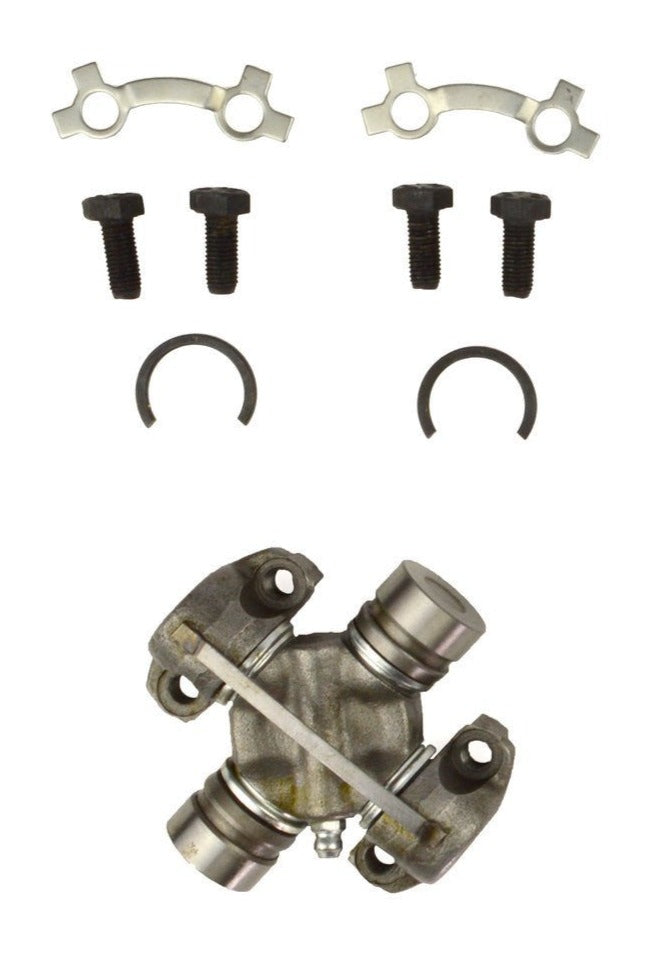

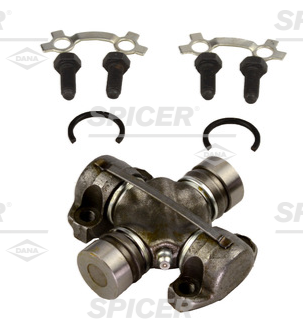

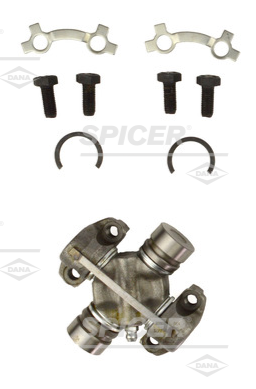

Spicer brand Mechanics 2R to 2CRL Series Greasable Conversion U Joint. U-joint has 2 caps with inside snap rings and two wing type caps. Includes 2 inside snap rings and 4 bolts and washers. This series is found primarily on Late 50's and earlier Ford models.

Series Innovations Include:

• Forged cross
• Case hardening process for strength
• Sealed slip spline system
• Triple lip seal, thrust washer, and seal guard package
• Reduced maintenance
• Increased torque capacity

*



Brand Spicer
Greaseable Yes
Type Inside Snap Ring / Wing Bearing Style
OEM Mfg Mechancis
OEM Series 2C
Converts This Series
To This Series 2R
Distance Between Bolts (S1) 3.926"
Distance Between Bolts (S2) 3.926"
Wb Type (1) HWD
Wb Type (2) HWD
Pilot Diameter (C) 10.235"
Country of Origin Italy

VMRS: 024002046



Brand Spicer
Greaseable Yes
Type
Inside Snap Ring / Wing Bearing Style
OEM Series 2C
Converts This Series 2CRL
To This Series 2R
Bearing Cap Diameter (D) 1 in (25.4 mm)
Snap Ring to Snap Ring (K) 2.344 in (59.5376 mm)
Distance Between Bolts (S) 1.312 in (33.3248 mm)
Wing Bearing Type TBC
Pilot Diameter (C) 3.125 in (79.375 mm)
Bearing Cap Type Round, Wing
Snap Ring Included Yes
Material Steel

 VMRS: 024002046

Inside Snap Ring / Wing Bearing U-Joint

How to Measure a Yoke

Measure across the inside of the pilot diameter
CAUTION: Make sure your spicer ruler or caliper is directly over the center of the bolt holes and pilot hole on the yoke.
Wing Yoke DiagramMeasuring a yoke

How to Measure a Wing U-Joint

  We recommend using a caliper or micrometer to most accurately measure u-joints. U-joint caps must be compressed when measuring dimension over the caps.

Inside and outside u-joint

 (C)
Pilot Diameter / Distance over Caps
 (S)
Distance Between Bolts

****

Sku: 5-2031X
Vendor: Spicer/Dana
$51.84
Maximum quantity available reached.

DETAILS

OEM Series:
2C (Converts 2CRL to 2R)
Manufacturer: Spicer/Dana
Greasable: Greasable
Bearing Type: Inside Snap Ring
Manufacturer Part Number: 5-2031X
Distance Between Bolts (1): 1.312"
Distance Between Bolts (2): Distance Over Caps: 1"
Pilot Diameter (1): 3:125"
Pilot Diameter (2): Snap Ring to Snap Ring: 2.344"
Bolt Hole: Yes 4 bolts 2 Inside Snap Rings
