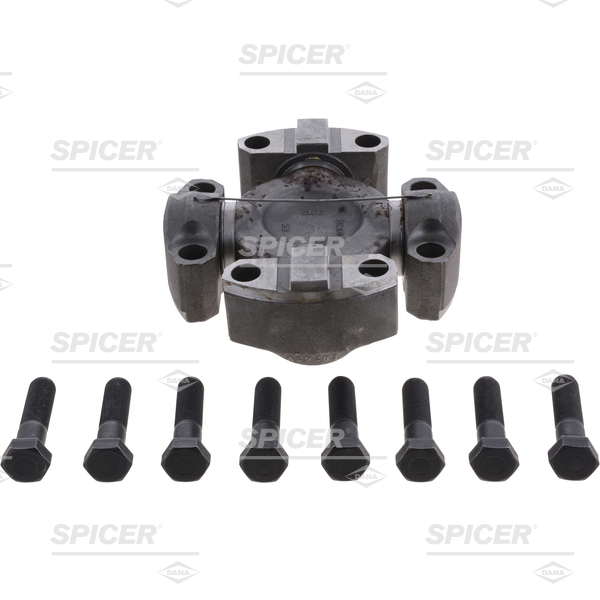

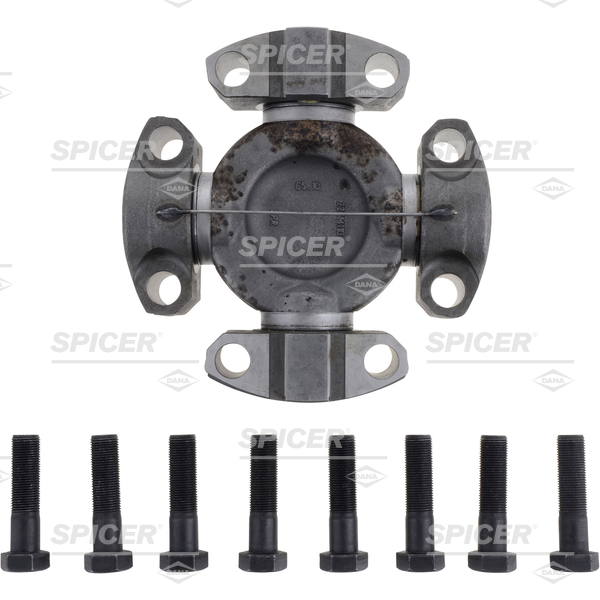

Spicer 5-11211X U-Joint

Vendor: Spicer/Dana, Sku: 5-11211X

Product Description


Spicer® Wing™Series:

For Performance that begins where the pavement ends. Spicer wing bearing style driveshafts are designed for longer life, minimal maintenance, and lower operating costs.

Series Innovations Include:

• Forged cross
• Case hardening process for strength
• Sealed slip spline system
• Triple lip seal, thrust washer, and seal guard package
• Reduced maintenance
• Increased torque capacity

*



Brand: Spicer
Greaseable: Non-Greaseable
Type: Wing Bearing Style (HWD/HWD)
OEM Mfg: Italcardano
OEM Series: 11C
Distance Between Bolts: 3.5 Inch (S1) / 3.5 Inch (S2)
Pilot Diameter (C): 8.75 Inch

VMRS: 024002046

Wing Bearing Style U-Joint Diagram

How to Measure a Yoke

Measure across the inside of the pilot diameter
CAUTION: Make sure your spicer ruler or caliper is directly over the center of the bolt holes and pilot hole on the yoke.
Wing Yoke DiagramMeasuring a yoke

How to Measure a Wing U-Joint

  We recommend using a caliper or micrometer to most accurately measure u-joints. U-joint caps must be compressed when measuring dimension over the caps.

Wing U-Joint

 (C)
Pilot Diameter / Distance over Caps
 (S)
Distance Between Bolts

****


Alternate Part Number:
Spicer 5-11111X U-Joint (Greasable)
Spicer 050A56000 U-Joint

Sku: 5-11211X
Vendor: Spicer/Dana
$934.84
Maximum quantity available reached.

DETAILS

OEM Series:
11C
Manufacturer: Spicer/Dana
Greasable: Non-Greasable
Bearing Type: Wing HWD
Manufacturer Part Number: 5-11211X
Distance Between Bolts: 3.500"
Pilot Diameter (1): 8.75"
OEM/Alternate Part Number:
023913437275
.
