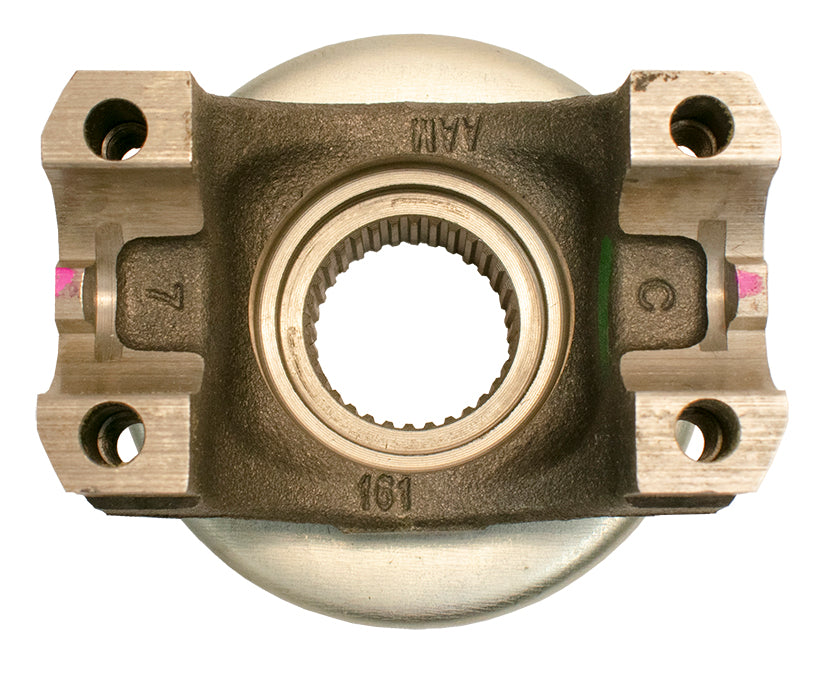

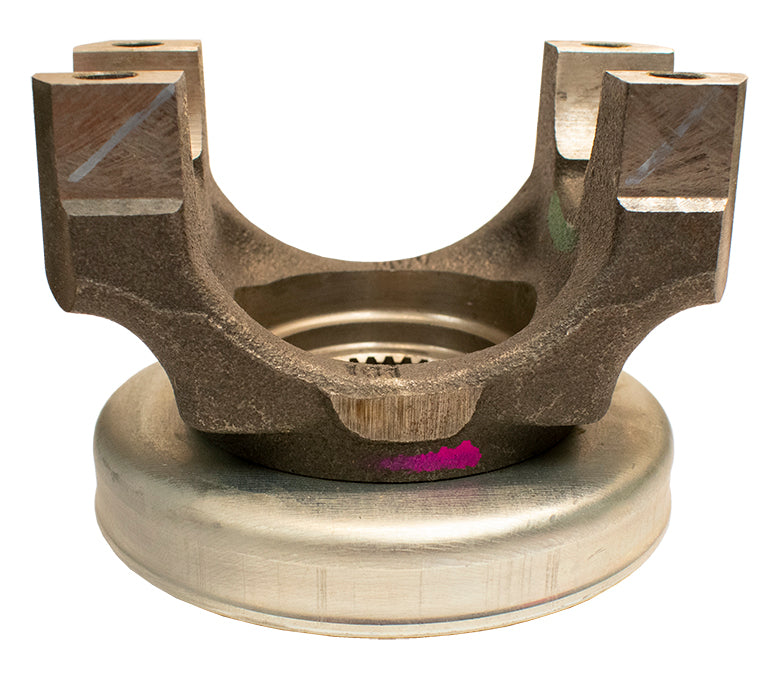

AAM 40087159 End Yoke

Vendor: AAM, Sku: 40087159

Product Description

Drive Shaft End Yoke / Pinion Yoke

Flange assembly w/ Deflector  - 32 teeth


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

Includes Deflector Seal 40101832


Manufacturer: AAM
Manufacturer Part Number: 40087159
U-Joint Series: 1355
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.612 Inch
End Yoke Length(C) :
- Center Line to End of Spline
2.850 Inch
Hub Diameter (D): 2.112 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.406 Inch
Number of Splines (F): 32
Bore Length (G): 1.187 Inch
Rear Axle Type:
9.5 Inch-12 Bolt
Vehicle: GM
VMRS: 024001003



How to Measure a Driveshaft Slip Yoke.


Applications

Applications for the 12 bolt 9.5 Inch - Rear Axle




****


This part is compatible with:
Neapco 1-0020 Bearing Strap Kit
Deflector Seal 40101832
AAM 19256728 U-Joint
AAM 40101832 Includes Deflector Seal

For assistance measuring your end yoke/pinion yoke you can use our:

End Yoke Measuring Guide
