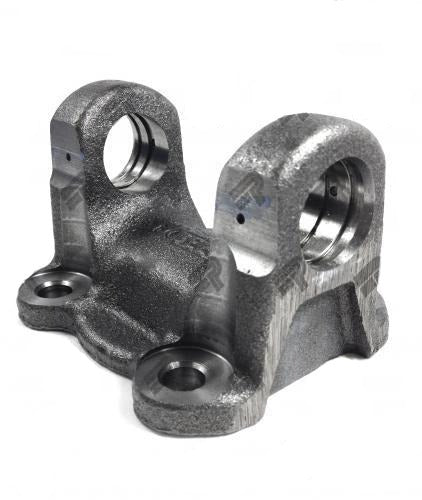

AAM 40065822 Flange Yoke

Vendor: AAM, Sku: 40065822

Product Description

AAM Driveshaft Flange Yokes

AAM driveshaft components are designed, tested and manufactured to maximize performance and durability. All driveshaft components meet the OEM specifications because they are the authentic OEM products. The same products we use to build driveshafts used by vehicle manufacturers around the world.



Specifications

Bolt Circle: 4.25 Inch (107.95 MM)
Swing Diameter: 5.512 Inch (140 MM)
Series: 1415 (1410)
U-Joint Lock Up: 4.178 Inch
Bearing Cap Diameter: 1.188 Inch (30.17 MM)
Flange Face to Center Line: 2.248 Inch (57.10 MM)
Number of Bolt Holes: 4
Pilot Diameter: 2.560 Inch (65.02 MM)
Pilot Type Female
Vehicle Make: Nissan

VMRS: 024-002-016


Alternate Part Number:
PTI 4102-256 Flange Yoke

Sku: 40065822
Vendor: AAM
$150.36
Maximum quantity available reached.

DETAILS

U-Joint Series:
1410 1415
U-Joint Cap Size (B): 1.188"
U-Joint Width (A): 4.178"
Snap Ring Type: Outside Snap Ring
Manufacturer: AAM
Pilot Diameter (G): 2.560" F
Bolt Circle (E): 4.250"
Manufacturer Part Number: 40065822
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
