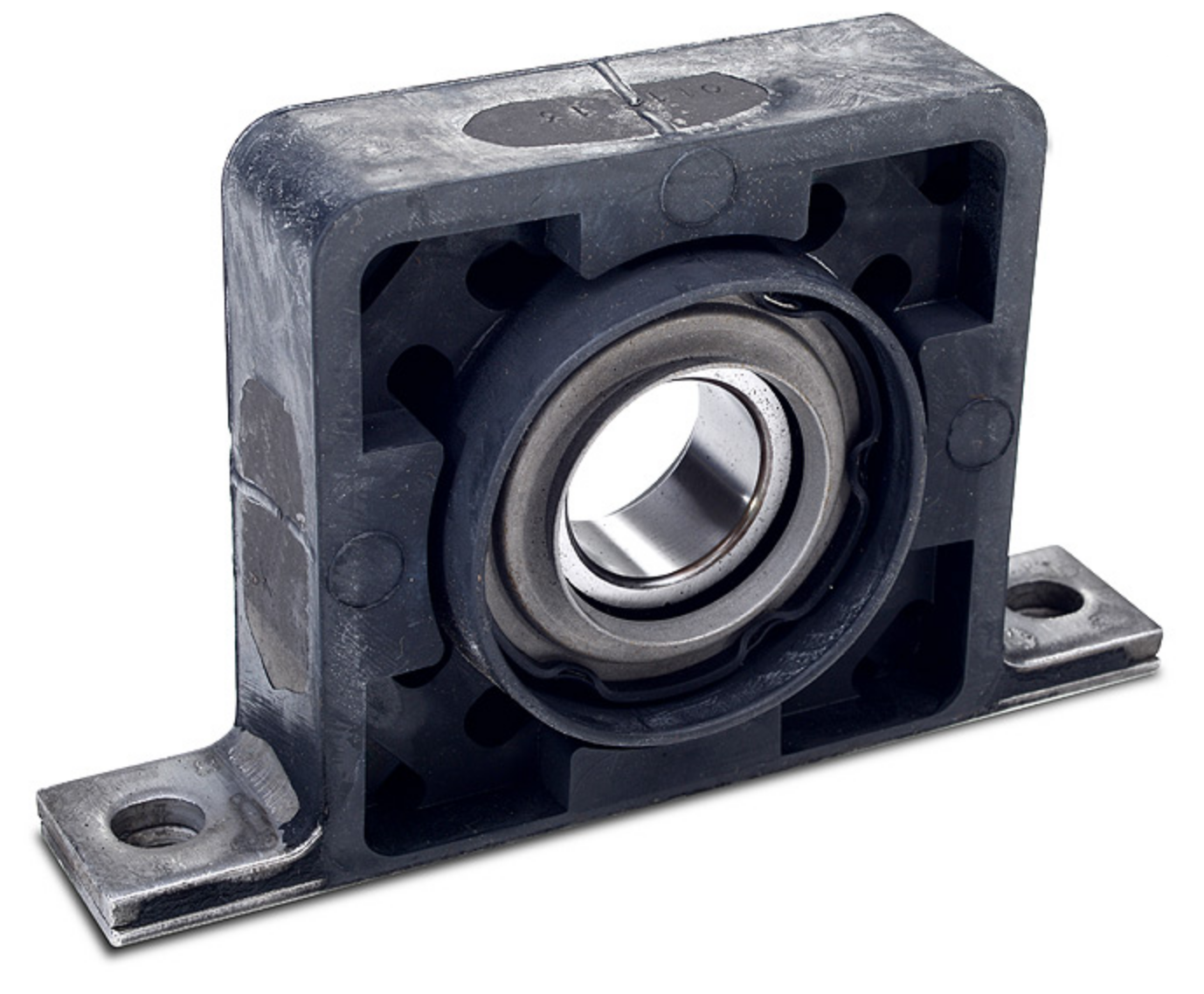

AAM 40007042 Center Bearing

Vendor: AAM, Sku: 40007042

Product Description

Drive Shaft Center Support Bearing

Driveshaft Center Support Bearing
Center support bearings are used when the driveshaft is split into two or more sections. It serves to hold the drive shaft to the vehicle between the transmission and the differential allowing the driveshaft to flex, relieving stress on other drive line components. These parts are often made with rubber and steel to dampen vibration and noise from transferring to the vehicle.

Brand: AAM
Bolt Hole Diameter: 0.524 Inch X 0.563 Inch
(13.31 mm X 14.3 mm)
Bore / Bearing (E): 1.378 Inch (35 mm)
CL of Bearing to Face (C): 2.252 Inch (57.20 mm)
CL of Bearing to Mounting (A): 3.313 Inch (84.14 mm)
CL to CL of Mounting (B): 6.625 Inch (168.28 mm)
Bracket Hight (D): 4.626 Inch (117.50 mm)
Vehicle: GM

VMRS: 024002008

Vehicle Make: GM
Chevrolet GMC, Square type used with double CV, 6.40mm X 14.30mm mounting bolts, square steel bracket

Alternate Part Numbers:
Neapco N217042 Center Bearing
12479237, 26039842, 74087042, 12475525
Sku: 40007042
Vendor: AAM
$60.24
