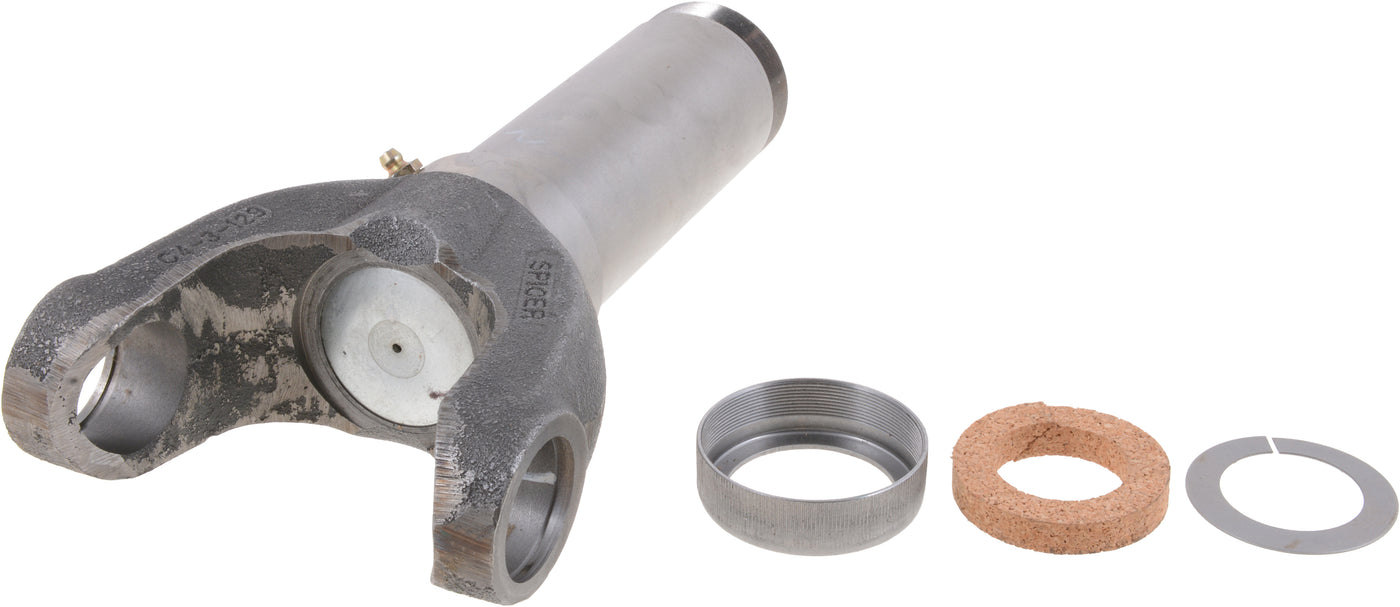

Spicer 4-3-1431KX Slip Yoke

Vendor: Spicer/Dana, Sku: 4-3-1431KX

Product Description
Transmission/Transfer Case Applications:

Mid Drive Shaft Slip Yoke

Series: 1550
U-Joint Width: 5.25 Inch
U-Joint Cap Diameter: 1.375 Inch
Center Line to End of Spline: 10.062 Inch
Center Line to Face of Plug 2.062 Inch
Spline Outside Diameter: 1.750 Inch

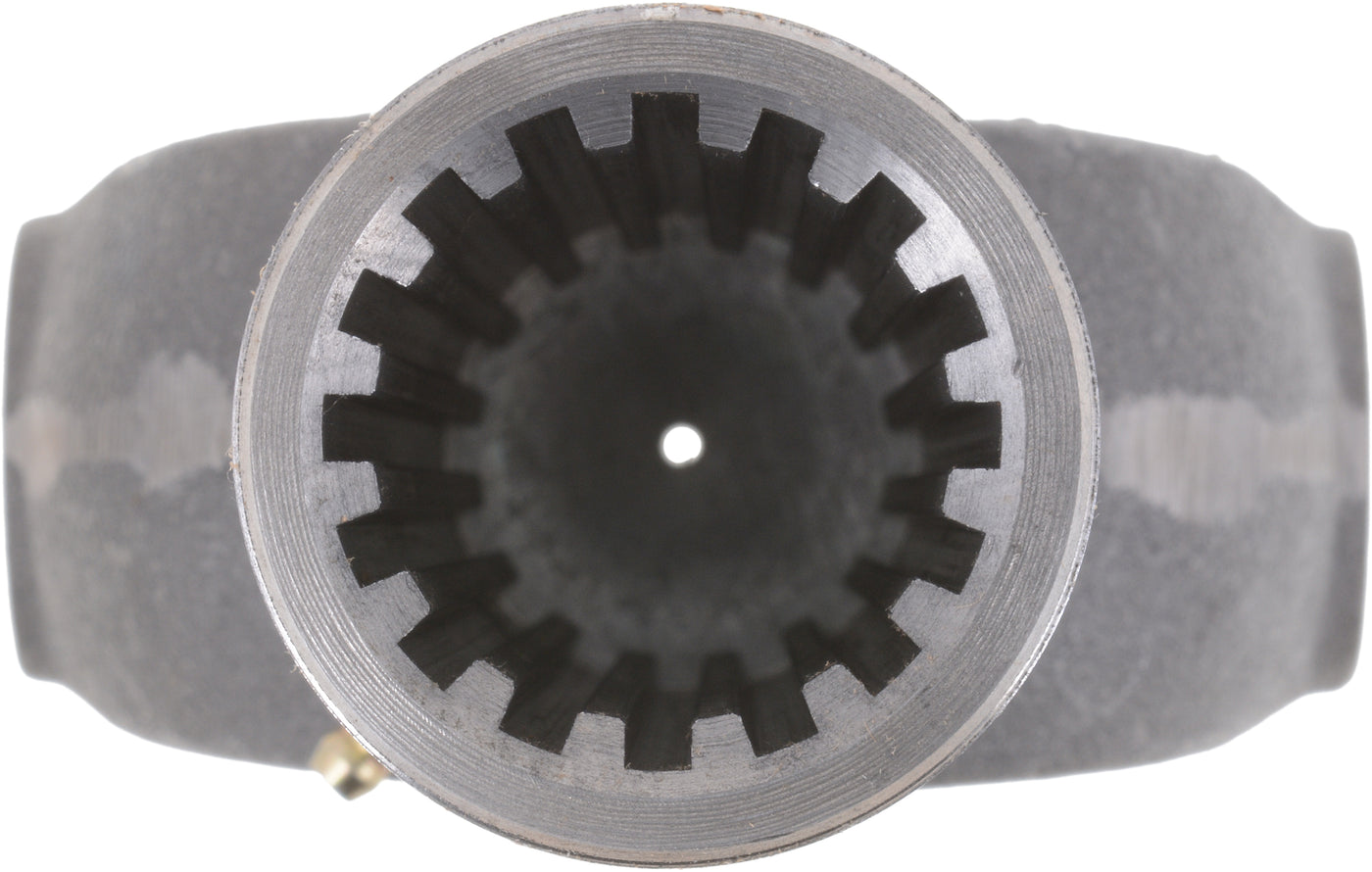

Spline Count: 16
Greasable: Yes
Joint Angle: 35.0 Degree
Material: Steel

VMRS: 024002038


Compatible Parts:
4-14-69 Drive Shaft Dust Seal
4-15-13 Drive Shaft Dust Seal
4-16-143 Drive Shaft Dust Seal

Sku: 4-3-1431KX
Vendor: Spicer/Dana
$172.50
