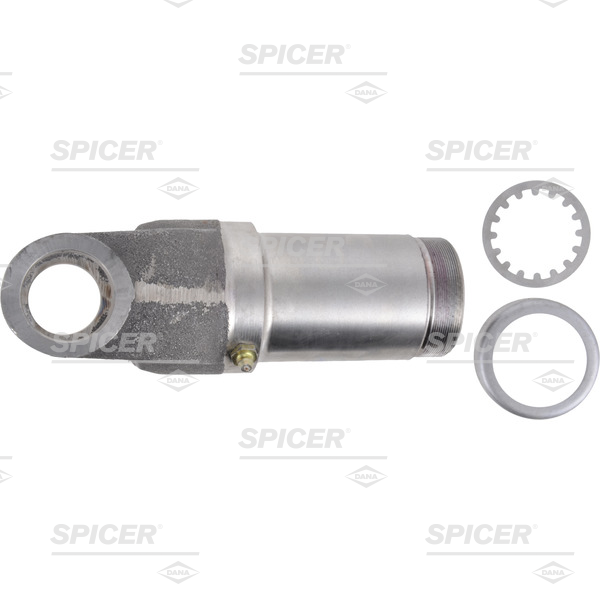

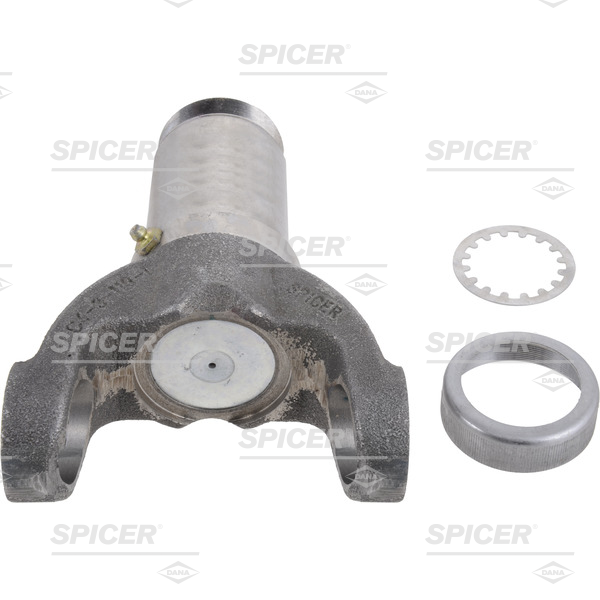

Spicer 4-3-1241KX Slip Yoke

Vendor: Spicer/Dana, Sku: 4-3-1241KX

Product Description

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1550
U-Joint Width (B): 4.969 Inch
U-Joint Cap Diameter (A): 1.375 Inch
Center Line to End of Spline (C): 6.875 Inch
Center Line to Face of Plug: 1.375 Inch
Spline Outside Diameter (E): 1.750 Inch
Spline Count (F): 16
Greasable: Yes
Joint Angle: 22.0 Degree
Material: Steel
Dust Cap: Yes

VMRS: 024-002-038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
Neapco N4-3-1241KX Slip Yoke Assembly

Compatible Parts:
Spicer D4K Slip Yoke Dust Cap
4-68-143 Plug
500168-2 Lube fitting

Sku: 4-3-1241KX
Vendor: Spicer/Dana
$211.40
