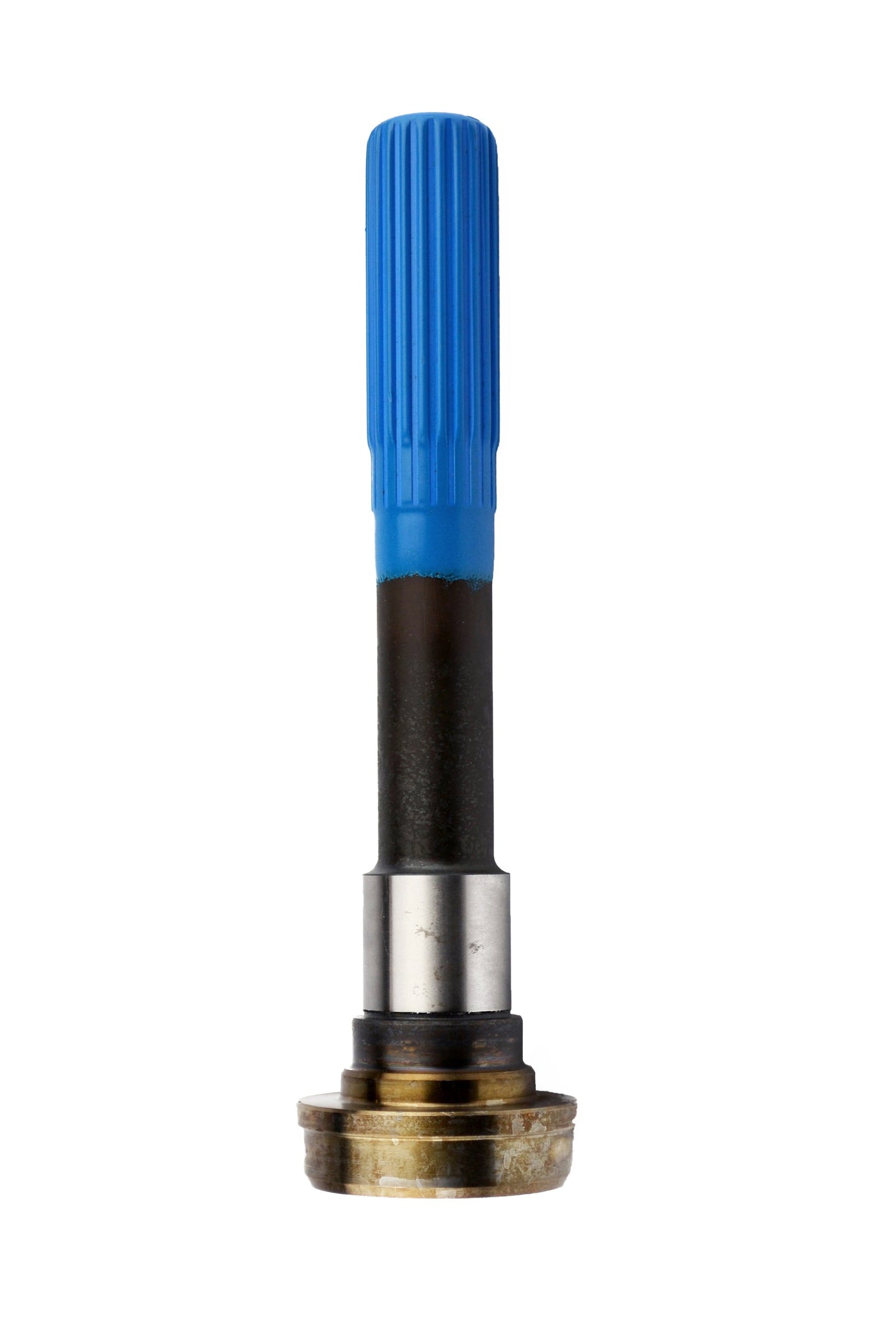

Spicer 3-53-2451 Midship Tube Shaft

Vendor: Spicer/Dana, Sku: 3-53-2451

Product Description

Midship Tube Shaft

Specifications

Bearing Diameter: 1.575 Inch
(1.5751 Max / 1.5747 Min)
Bearing Diameter Length: 1.500 Inch
Bearing Diameter Radius: 0.190 Inch
Butt Diameter: 2.845 Inch
End of Spline to Bearing Shoulder: 9.500 Inch
End of Spline to Point of Weld: 10.620 Inch
Length of Shoulder: 0.880 Inch
Length of Spline: 3.500 Inch
Shoulder Diameter: 1.810 Inch
Spline Diameter: 1.4370 Inch
Number Teeth: 21/22
Tubing Diameter: 3.000 Inch
Tubing Wall: 0.083 Inch
Material Steel

VMRS: 024002060



Sku: 3-53-2451
Vendor: Spicer/Dana
$167.91
