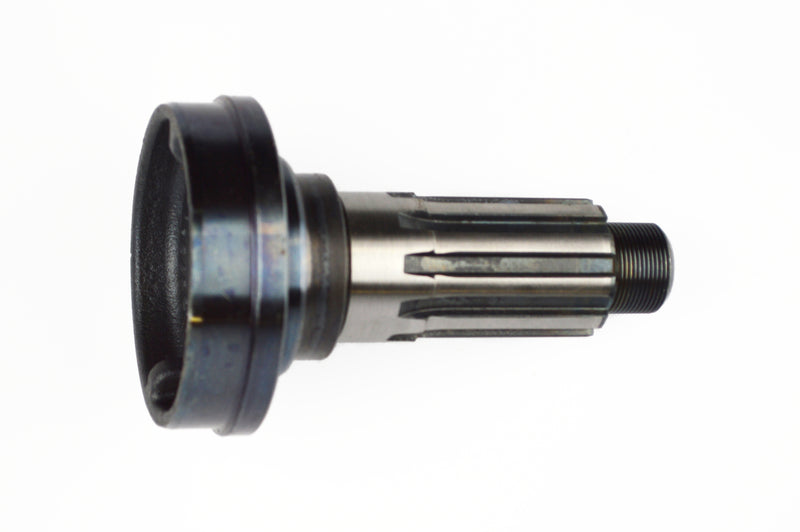

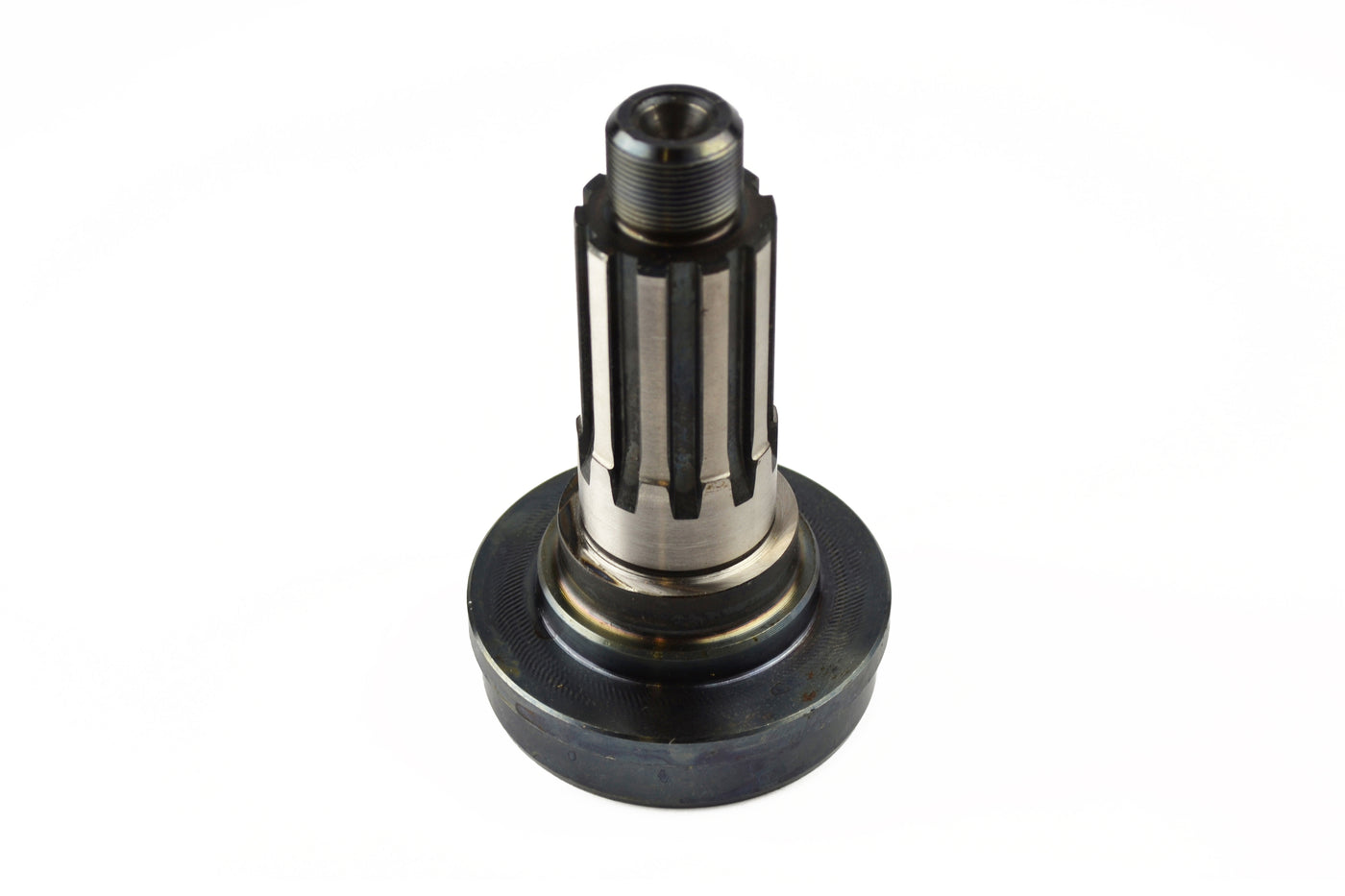

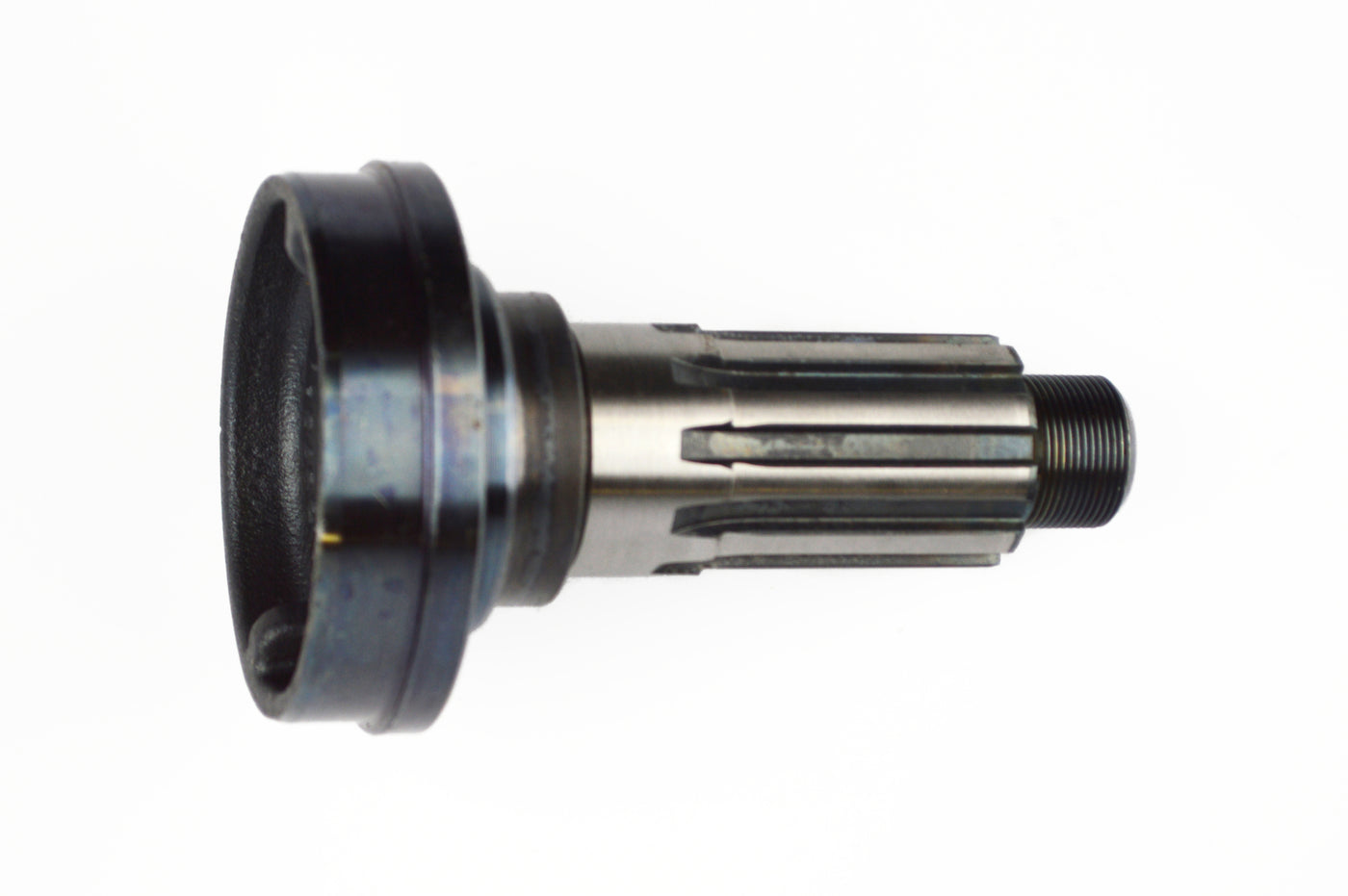

Spicer 3-53-1821 Midship Tube Shaft

Vendor: Spicer/Dana, Sku: 3-53-1821

Product Description

Midship Tube Shaft

Specifications

Bearing Diameter: 1.574 Inch
(1.5748 Max / 1.5743 Min)
Butt Diameter: 3.345 Inch
End of Spline to Bearing Shoulder: 2.969 Inch
End of Spline to Point of Weld: 4.031 Inch
Length of Shoulder: Inch
Length of Spline: 2.000 Inch
Shoulder Diameter: 1.938 Inch
Shoulder Length: 0.812 Inch
Spline Diameter: 1.500 Inch
Number Teeth: 10
Thread Size: 1.000-20
Tubing Diameter: 3.500 Inch
Tubing Wall: 0.083 Inch
Series: 1310-1480
Material: Steel

VMRS: 024002060

Sku: 3-53-1821
Vendor: Spicer/Dana
$112.50
