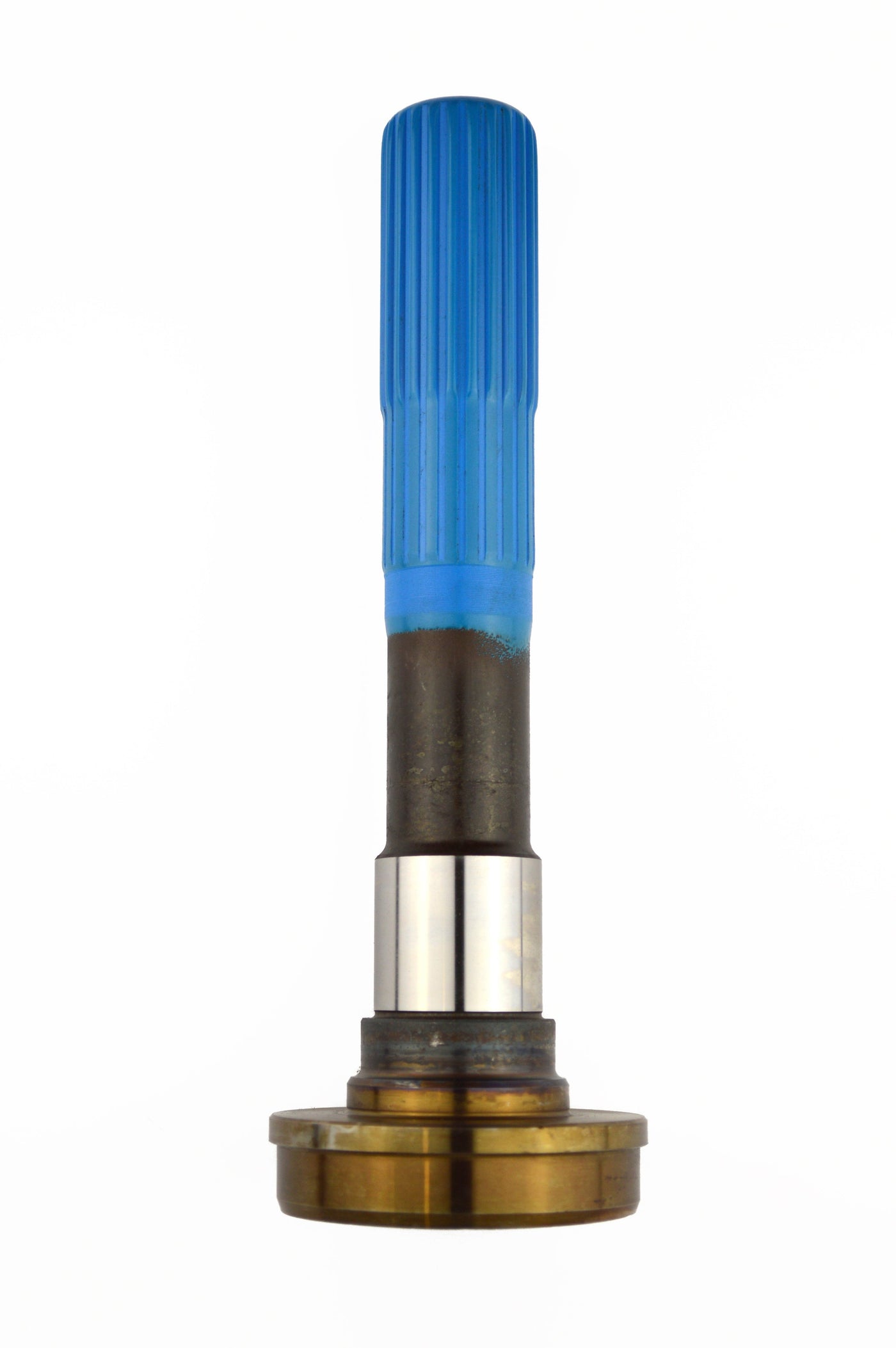

Spicer 3-53-08004 Midship Tube Shaft

Vendor: Spicer/Dana, Sku: 3-53-08004

Product Description

Midship Tube Shaft

Specifications

Bearing Diameter: 1.575 Inch
(1.5752 MAX / 1.5747 MIN)
Bearing Diameter Length: 1.5 Inch
Bearing Diameter Radius: 0.19 Inch
Butt Diameter: 3.345 Inch
End of Spline to Bearing Shoulder: 8.732 Inch
End of Spline to Point of Weld: 9.512 Inch
Length of Shoulder: 0.540 Inch
Length of Spline: 3.000 Inch
Shoulder Diameter: 1.811 Inch
Spline Diameter: 1.5620 Inch
Number Teeth: 23/24
Tubing Diameter: 3.500 Inch
Tubing Wall: 0.083 Inch

VMRS: 024002060

Sku: 3-53-08004
Vendor: Spicer/Dana
$192.50
