Spicer 3-4-5761-1X End Yoke

Vendor: Spicer/Dana, Sku: 3-4-5761-1X

Product Description

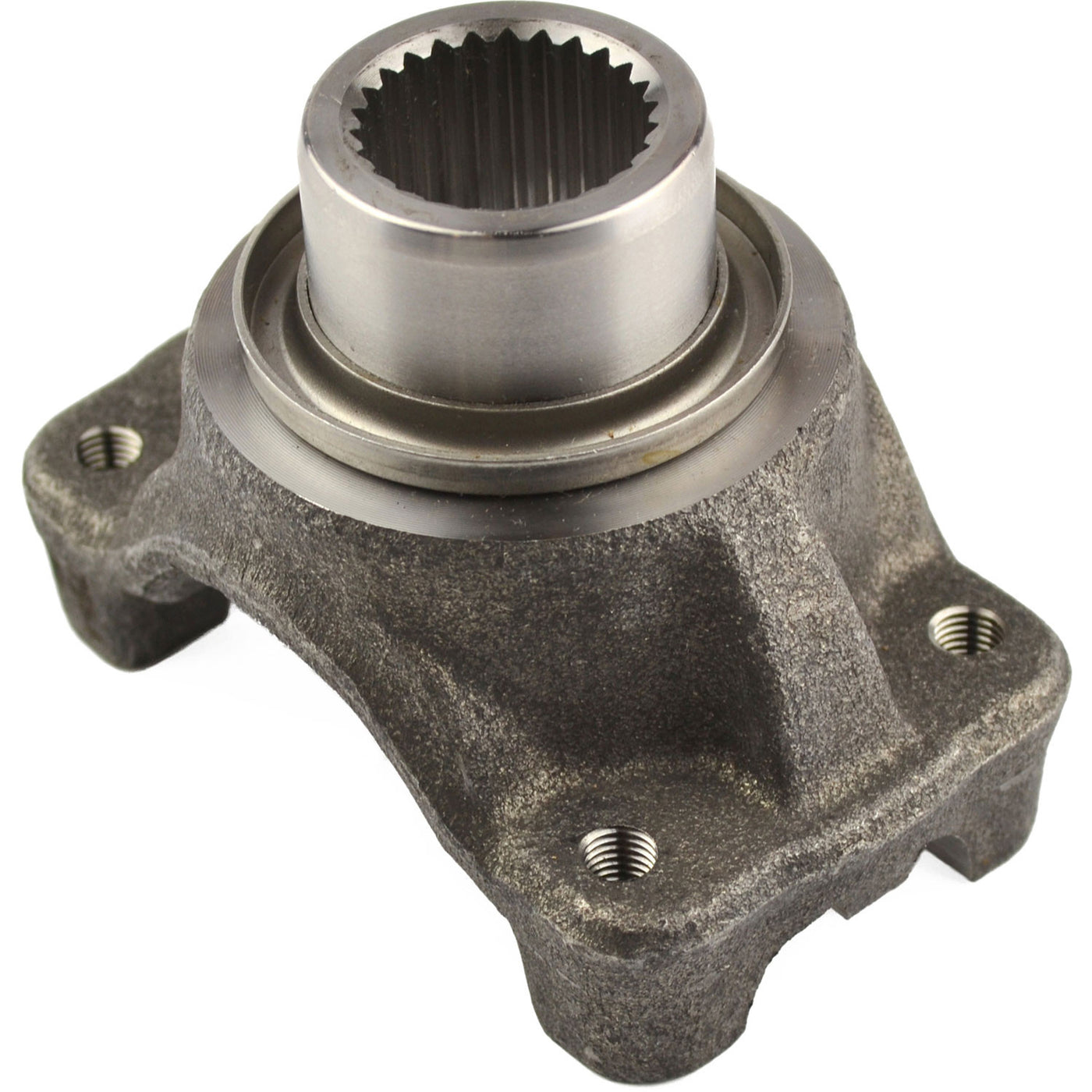

Drive Shaft Pinion Yoke / End Yoke

Fits 1350 Series applications.  Non-greasable, outside snap ring u-joint.  Same U-joint as the old Spicer part number 5-799X.



Driveline Parts

Spicer End yoke fits Dana 44 with 1350Series U Joint and other applications with similar dimensions.  26 spline.  Check the End Yoke Chart for full dimensions.

This is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry. You can read more about Spicer quality and products at Dana.com.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.



Manufacturer: Spicer/Dana
Manufacturer Part Number: 3-4-5761-1X
U-Joint Series: 1350
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
End Yoke Length(C) :
- Center Line to End of Spline
3.000 Inch
Hub Diameter (D): 1.550 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.146 Inch
Number of Splines (F): 26
Bore Length (G): 1.500 Inch
Rear Axle Type:
Dana 35, Dana 44
VMRS: 022003072


This 1350 pinion yoke fits the Dana 44 differential. It takes the Dana strap kit 3-70-28X.


Applications for the Dana 44

1/2 Ton Dodge Pickup: 1955 - 2002 (Front)
1/2 Ton GM Pickup: 1960 - 1980 (Front)
1/2 Ton GM Pickup: 1967 - 1972 (Rear)
3/4 Ton Dodge Pickup: 1955 - 2002 (Front)
3/4 Ton GM Pickup: 1960 - 1980 (Front)
420: 1958 - 1970 (Rear)
Blazer: 1969 - 1979 (Front)
Bronco: 1972 - 1996 (Front)
CJ5: 1966 - 1975 (Rear)
CJ6: 1966 - 1975 (Rear)
CJ7: 1986 - 1986 (Rear)
CJ8: 1981 - 1986 (Rear)
Commando: 1966 - 1973 (Rear)
F100: 1948 - 1979 (Rear)
F150: 1967 - 1996 (Front)
F250: 1959 - 1989 (Front)
F350: 1979 - 1979 (Front)
Grand Wagoneer: 1984 - 1991 (Front)
Grand Wagoneer: 1984 - 1991 (Rear)
J10: 1972 - 1983 (Rear)
Mark I: 1950 - 1970 (Rear)
Mark II: 1950 - 1970 (Rear)
Mark X: 1958 - 1970 (Rear)
Ram Charger: 1974 - 1993 (Front)
Rodeo: 1993 - 1997 (Rear)
Scout 800: 1967 - 1971 (Rear)
Scout II: 1972 - 1980 (Front)
Scout II: 1972 - 1980 (Rear)
Suburban 1/2 Ton: 1969 - 1979 (Front)
TJ: 1997 - 2004 (Rear)
TJ: 2003 - 2005 (Front)
Wagoneer: 1971 - 1992 (Rear)
Wagoneer: 1974 - 1992 (Front)
XJ: 1986 - 1989 (Rear)
XJ Sport: 1986 - 1989 (Rear)
XJR: 1940 - 1940 (Front)
XJS: 1976 - 1997 (Rear)
XK8: 1961 - 1974 (Rear)
X-Type: 1974 - 1995 (Rear)

*Can be used on Dana 35 rear, use a national seal 476441

****


Compatible Parts:
Strap Kit : 3-70-28X

Sku: 3-4-5761-1X
Vendor: Spicer/Dana
