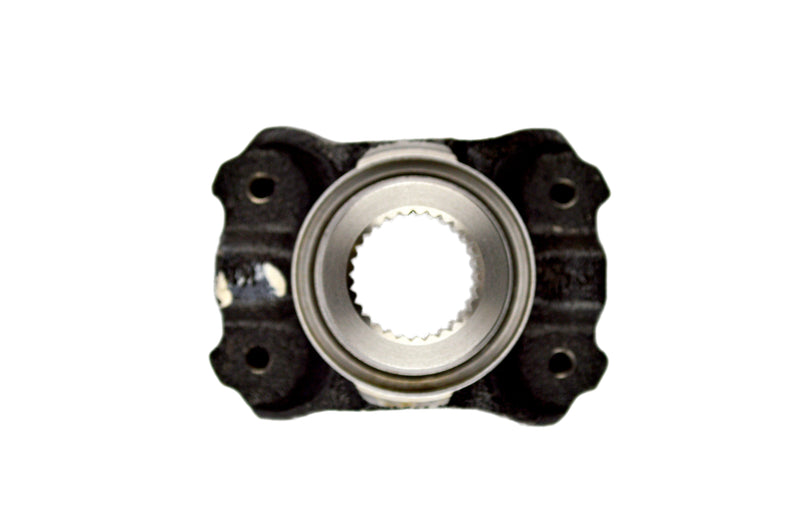

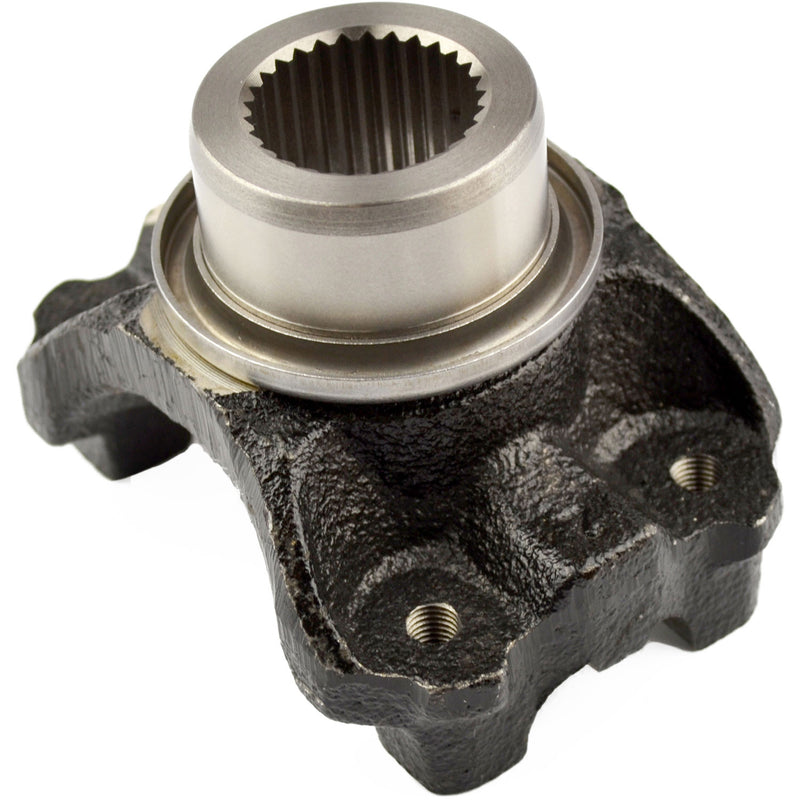

Spicer 3-4-5731-1X End Yoke

Vendor: Spicer/Dana, Sku: 3-4-5731-1X

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

Driveshaft End Yoke

Spicer End yoke fits Dana 60 with 1350 Series U Joint and other applications with similar dimensions.  29 spline.  Check the End Yoke Chart for full dimensions.

This is a genuine Spicer built driveshaft component.  Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.  You can read more about Spicer quality and products at Dana.com.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.






t

*



End/Pinion Yoke Specifications

U-Joint Series: 1350
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
End Yoke Length(C) :
- Center Line to End of Spline
3.000 Inch
Hub Diameter (D): 1.875 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.276 Inch
Number of Splines (F): 29
Bore Length (G): 1.500 Inch
Rear Axle Type:
Dana 60/70

VMRS: 022003072


How to Measure a Driveshaft Slip Yoke.

Application:

  Dana 60/70


Vehicle Information:

  Dana 60/70



****


This part is compatible with:
Strap Kit: 3-70-28X

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

Sku: 3-4-5731-1X
Vendor: Spicer/Dana
$73.21
