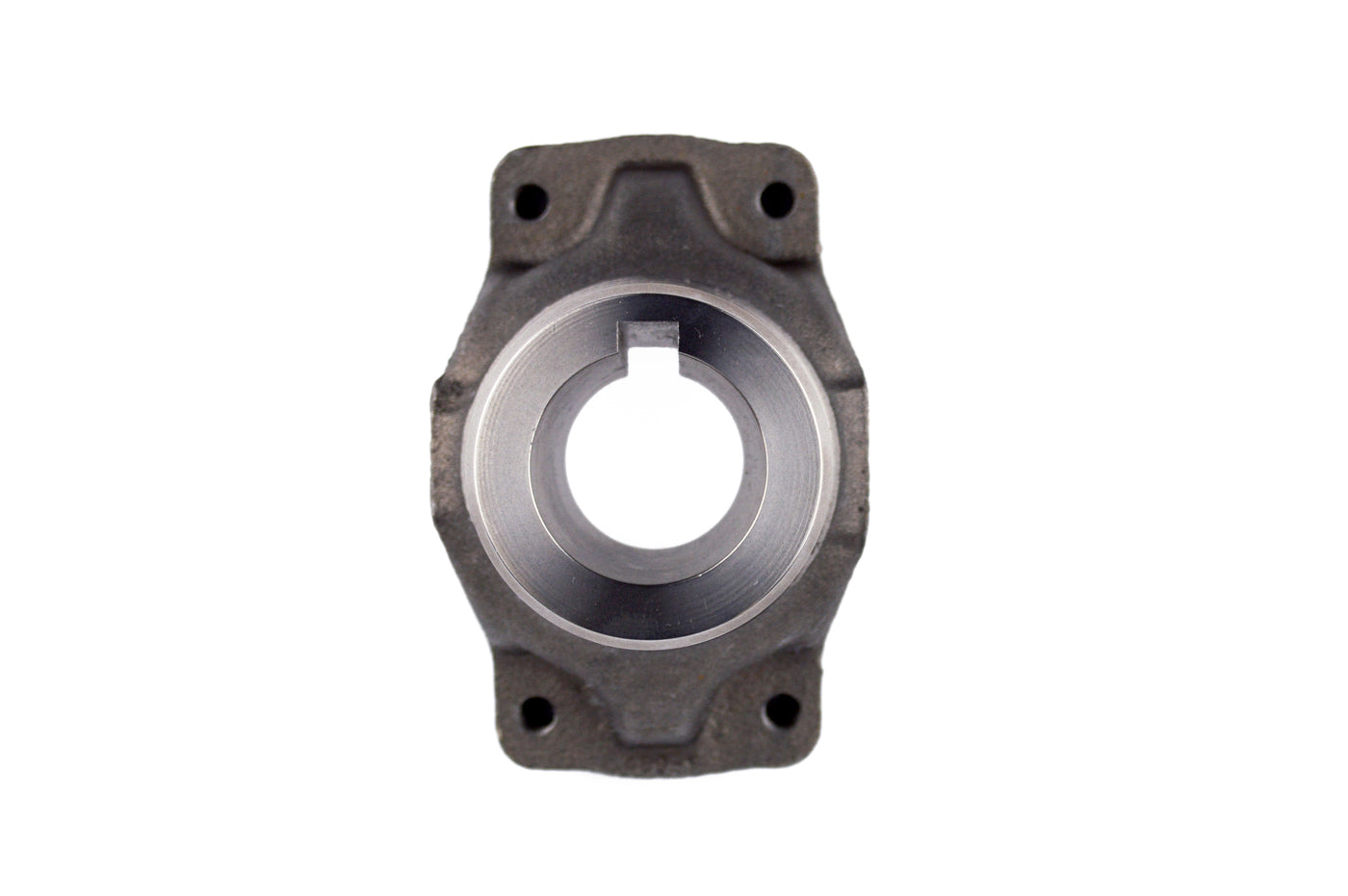

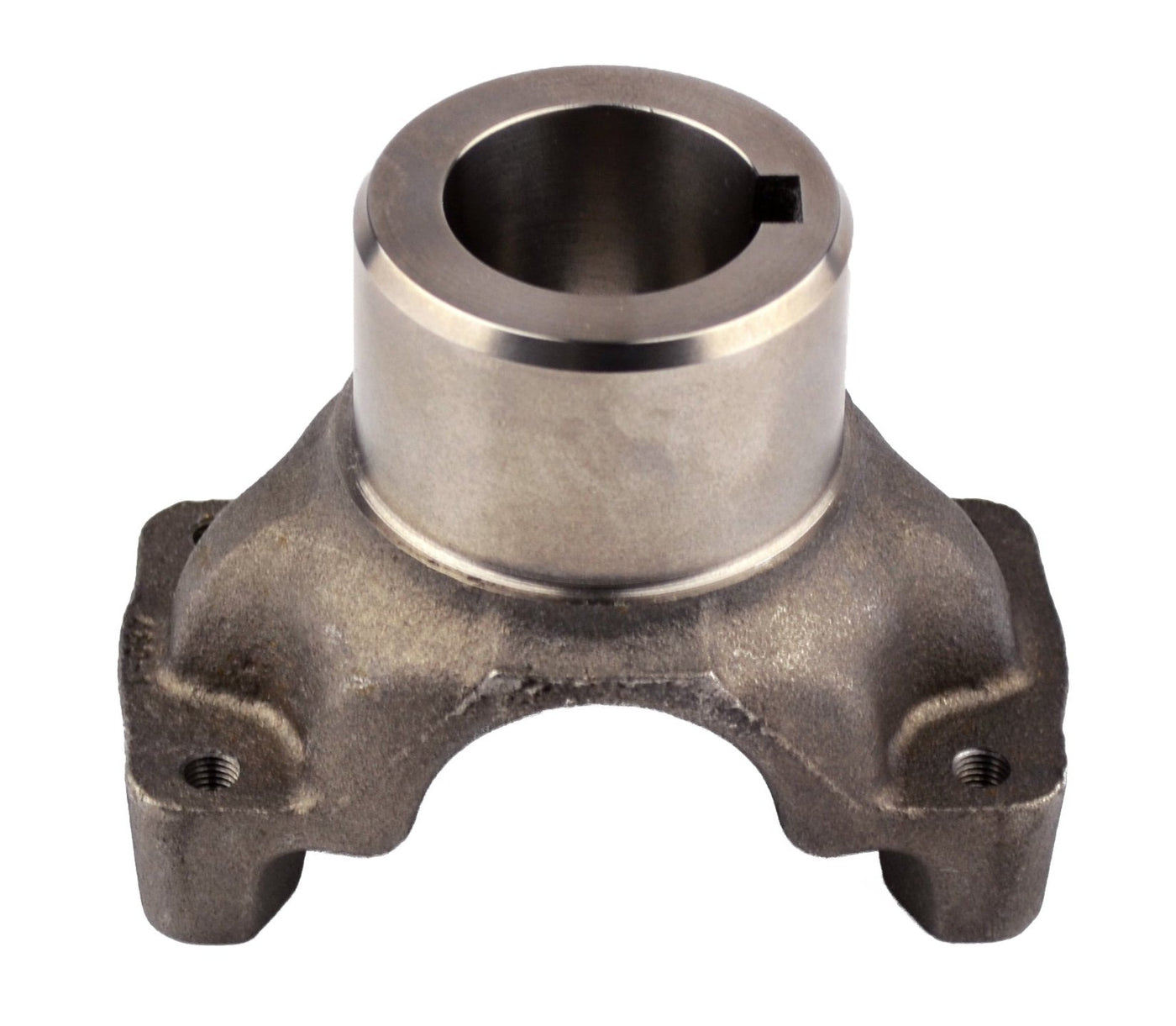

Spicer 3-4-34-1 PTO End Yoke
Vendor: Spicer/Dana, Sku: 3-4-34-1
DETAILS
Manufacturer: | Spicer/Dana |
Manufacturer Part Number: | 3-4-34-1 |
U-Joint Series: | , 1410 |
Style: | Outside Snap Ring |
U-Joint Cap Diameter (A): | 1.188 Inch |
U-Joint Width (B): | 4.188 Inch |
End Yoke Length(C) :
- Center Line to End of Spline |
3.690 Inch |
Hub Diameter (D): | 2.350 Inch |
Spline Diameter (E):
- From Farthest Point to Farthest Point |
|
Number of Splines (F): | |
Bore Length (G): | 2.000 Inch |
Joint Angle: | 30.0 Degree |
Rear Axle Type: |
|
