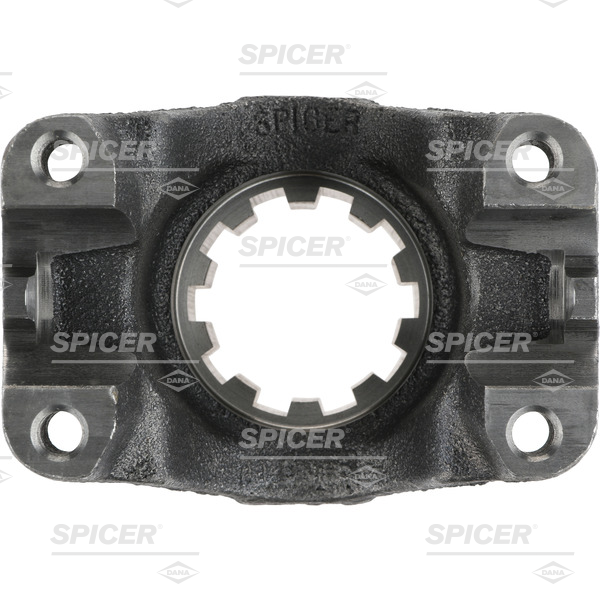

Spicer 3-4-3051-1 End Yoke

Vendor: Spicer/Dana, Sku: 3-4-3051-1

Product Description

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

U-Joint Series: 1480
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.375 Inch
U-Joint Width (B): 4.188 Inch
End Yoke Length(C) :
- Center Line to End of Spline
4.525 Inch
Hub Diameter (D): 2.598 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.972 Inch
Number of Splines (F): 10
Bore Length (G): 1.859 Inch
Joint Angle:
35 Degree

VMRS: 024001003


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


This part is compatible with:
Spicer 3-70-38X U-Joint Strap Kit

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650


Sku: 3-4-3051-1
Vendor: Spicer/Dana
$145.41
