Spicer 3-3-598KX Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-598KX

Product Description

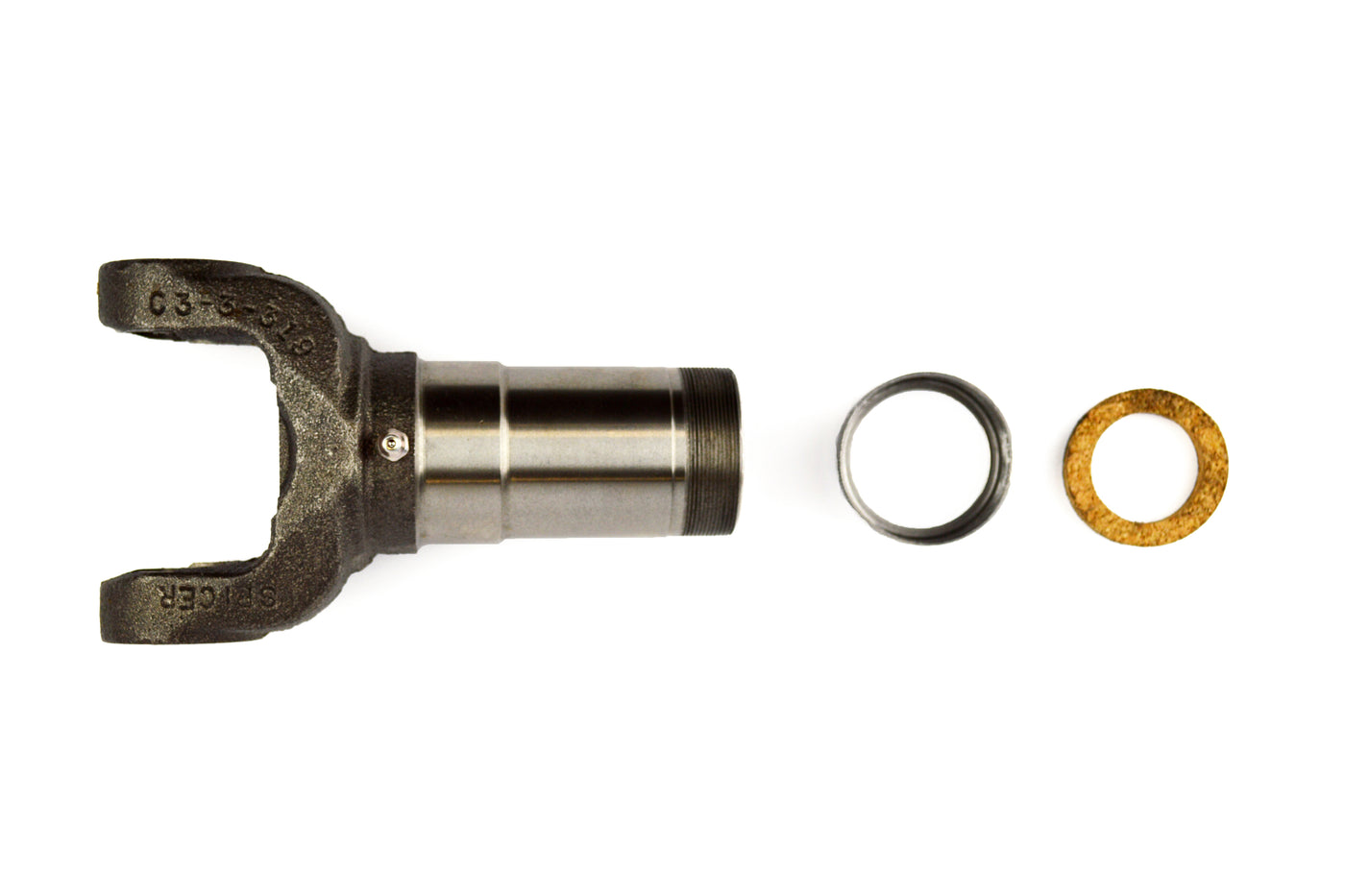

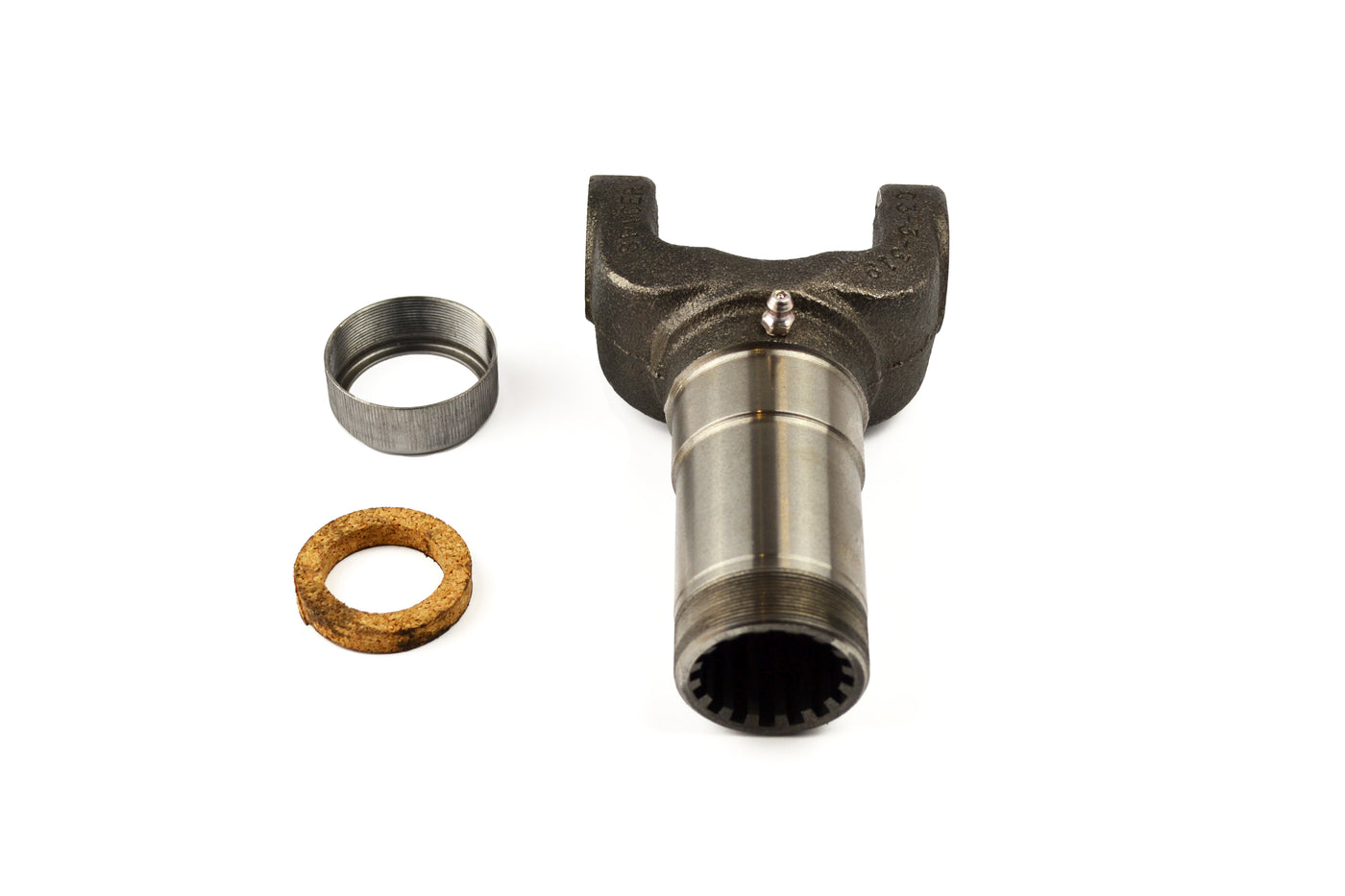

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1350
U-Joint Width (B): 3.625 Inch
U-Joint Cap Diameter (A): 1.188 Inch
Style: Outside Snap Ring
Center Line to End of Spline (C): 5.812 Inch
Center Line to Face of Washer: 1.312 Inch
Spline Outside Diameter (E): 1.500 Inch
Spline Count (F): 16
Greasable: Yes
Joint Angle: 20.00 Degree
Material: Steel

VMRS: 024002038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
Spicer 3-3-2991X Slip Yoke Assembly (C/L to Washer 1.375 Inch)
Neapco N3-3-598KX Slip Yoke Assembly
PTI P3-3-598KX Slip Yoke Assembly

Compatible Parts:
Spicer 2-68-33 Slip Yoke Plug
Spicer 500174-1 Lube Fitting
Spicer D3A Dust Cap

Sku: 3-3-598KX
Vendor: Spicer/Dana
$82.81
