Spicer 3-3-468KX Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-468KX

Product Description

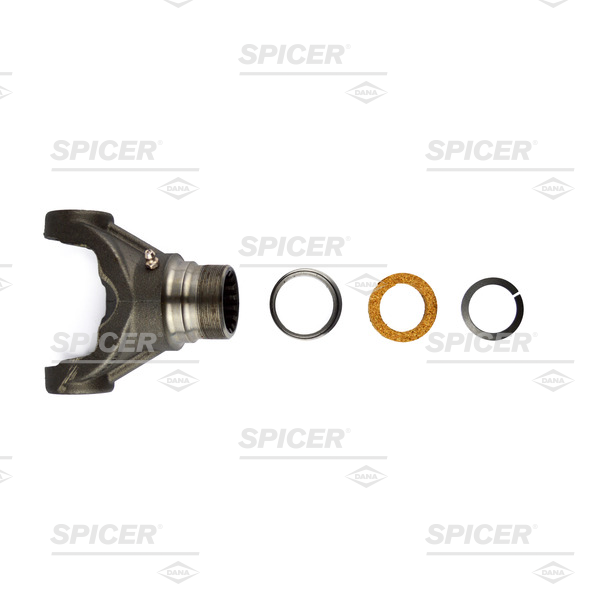

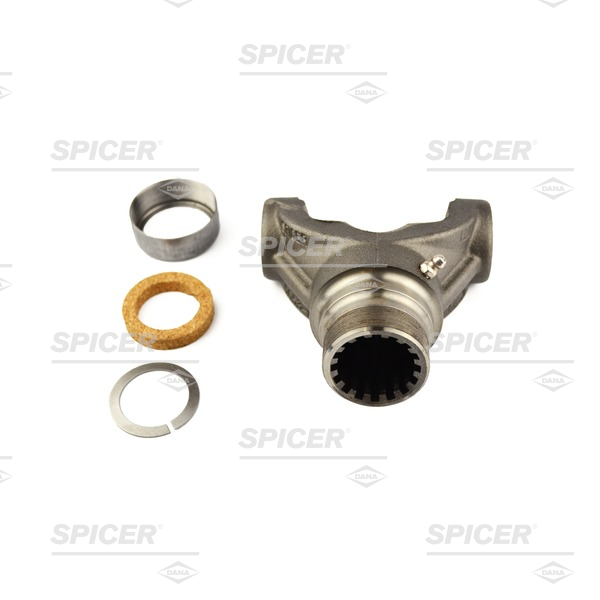

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1410
U-Joint Width: 4.188 Inch
U-Joint Cap Diameter: 1.188 Inch
Center Line to End of Spline: 3.906 Inch
Center Line to Face of Plug 1.156 Inch
Spline Outside Diameter: 1.500 Inch
Spline Count: 16
Greasable: Yes
Joint Angle: 20.0 Degree
Material: Steel
Dust Cap: D3A

VMRS: 024002038


Compatible Parts:
Spicer 5-1410X U-Joint
Spicer D3A Dust Cap
Spicer 3-68-33 Slip Yoke Plug
Spicer 500174-1 Lube Fitting

Sku: 3-3-468KX
Vendor: Spicer/Dana
$128.91
