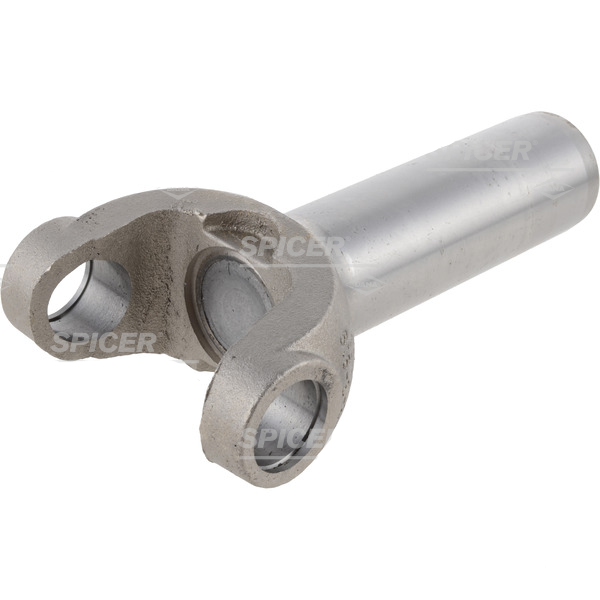

Spicer 3-3-3891X Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-3891X

Product Description
Transmission/Transfer Case Applications:

Transfer Case Application: Transfer Case: , NP205 , NP208 , NP241 , NP243 , NP246 , NP261 , NP263

Spicer/Dana Drive Shaft Slip Yoke

This is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.

Transmission Applications:

Fits various 32 spline transfer cases including New Process NP205, NP208, NP241, NP243, NP246, NP261, NP263 and more.



Series: 1410
Outside U-joint Dimensions:
4.188 Inch
Bearing Cap Diameter: 1.188 Inch
Center Line to End of Spline: 7.750 Inch
Spline Outside Diameter:
1.378 Inch
Hub Diameter: 1.885 Inch
Number of Spline*: 31/32 I
Spline Type: Full Spline
Style: Snap Ring

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeSlip Yoke
