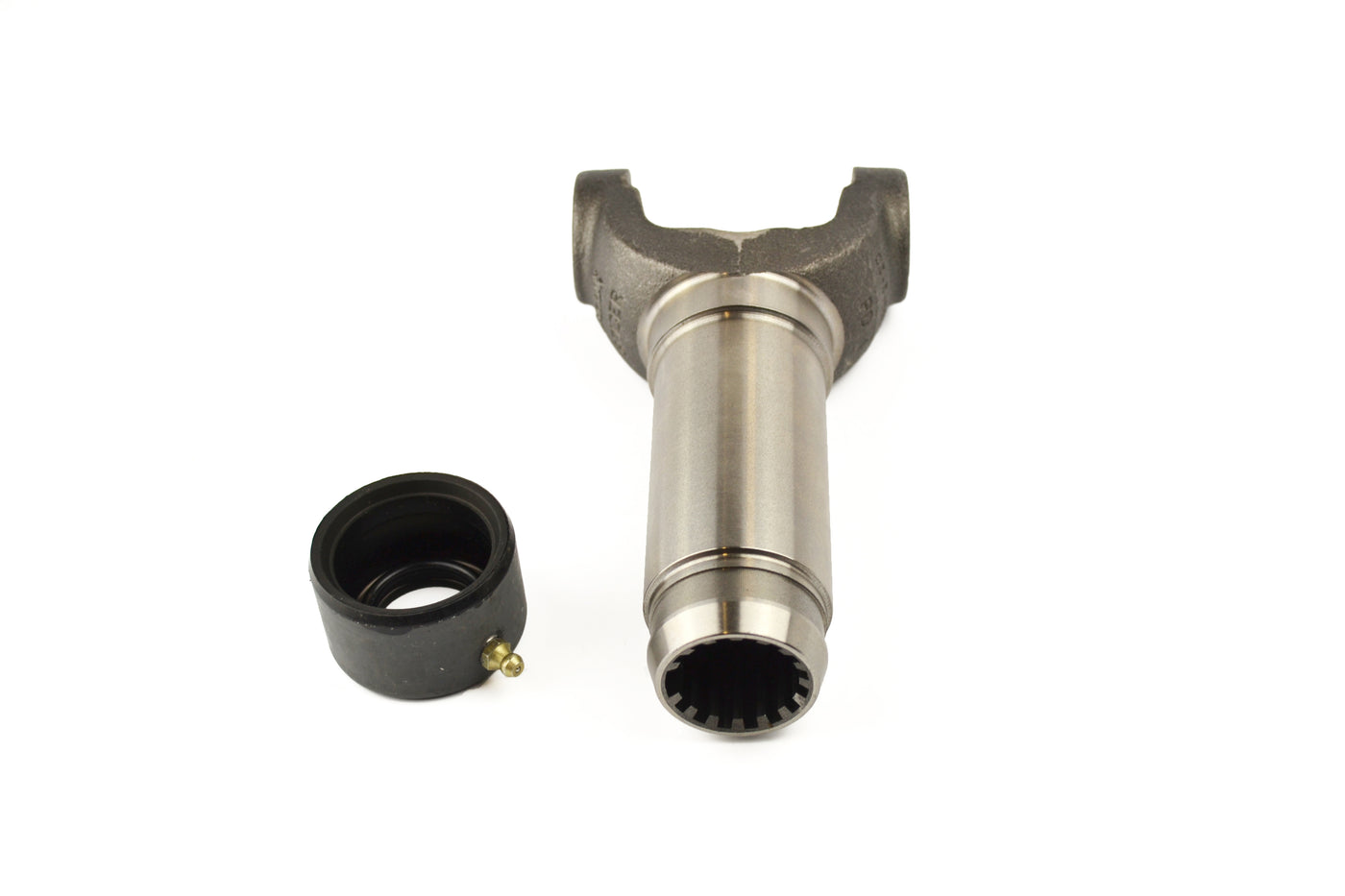

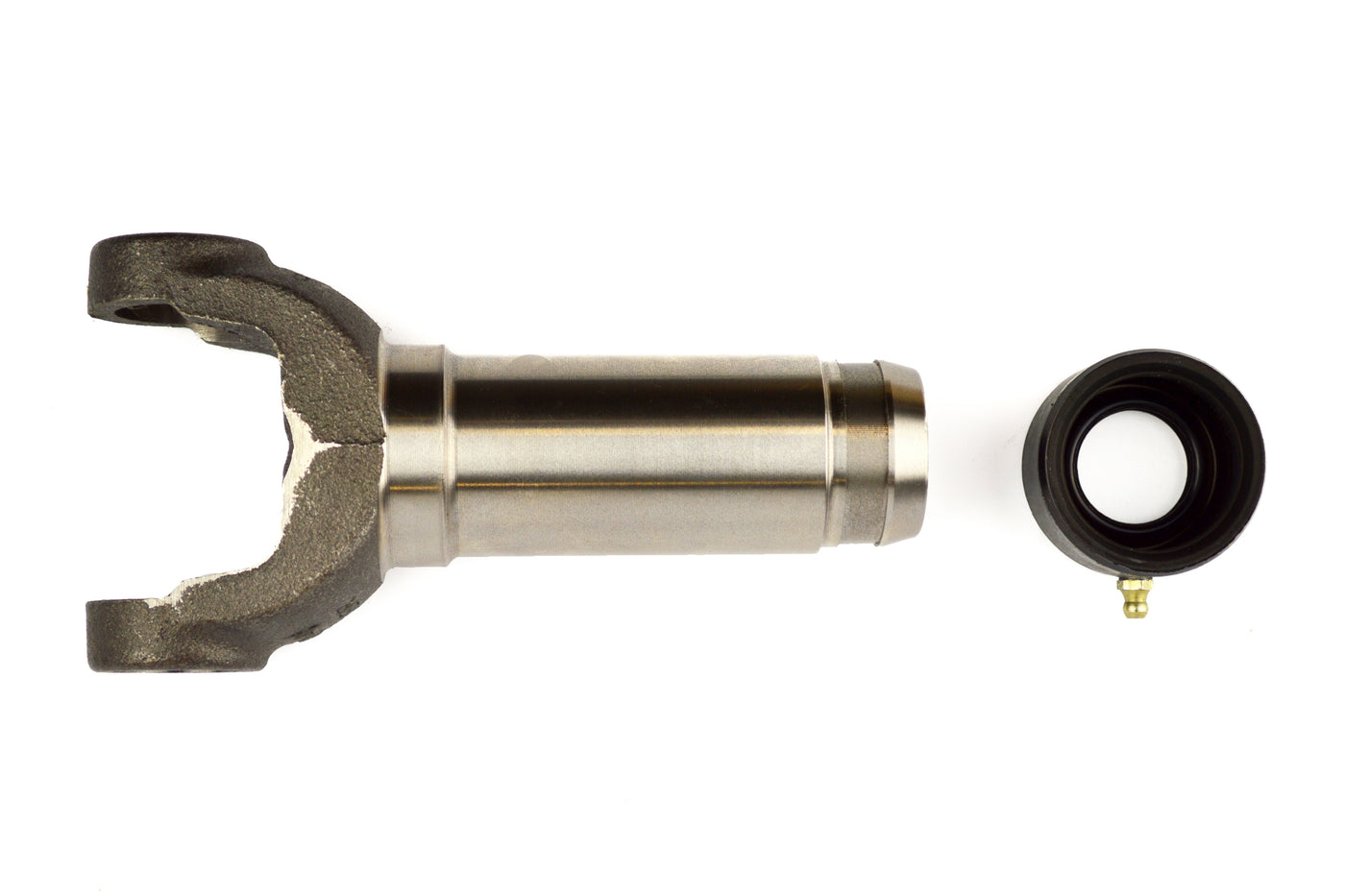

Spicer 3-3-2701KX Slip Yoke

Vendor: Spicer/Dana, Sku: 3-3-2701KX

Product Description
Transmission/Transfer Case Applications:

Mid Drive Shaft Slip Yoke

Series: 1350
U-Joint Width: 3.625 Inch
Outside Yoke Dimension: 3.875 Inch
U-Joint Cap Diameter: 1.188 Inch
Center Line to End of Spline: 6.810 Inch
Center Line to Face of Plug 1.190 Inch
Spline Outside Diameter: 1.375 Inch
Spline Count: 16/15
Greasable: Yes
Lube Fitting: Dust Cap
Joint Angle: 45.0 Degree
Material: Steel

VMRS: 024002038


Compatible Parts:
Spicer 5-1350X U-Joint
Spicer 211121X Slip Yoke Dust Cap

Sku: 3-3-2701KX
Vendor: Spicer/Dana
$101.41
